1. INTRODUCTION

Congratulation! Now you are the owner of the MP2D Two Channel Microphone / Instrument Preamplifier with
Stereo Bus, which is provided with 129dB of signal to noise ratio and 0.007% of THD. Each channel provides an
1/4 inch instrument socket , individual phantom power, phase reverse and high pass filter. It is equipped with a
"vintage" function to add warm, tube-like sounds to your mix. The MP2D includes a sophisticated 24 bit digital
output interface with external / internal clock and AES / EBU and S/ PDIF connectors. We believe MP2D is your
perfect choice for enhancing the performance of any console or digital audio workstation by providing two very
high-end microphone preamplifiers.

2. FEATURES

48V Phantom Power
80Hz High Pass Filter
Polarity Reverse
"Vintage" function for tube simulation
Highly accurate12 Segment Level Display
Low Impedance Stereo Mix Bus can be used for Full Control Over Stereo Imaging

Fully Loaded Back Panel Featuring XLR Balanced I/O Connectors as well as Separate Send and Return Jacks for

Inserting

Dynamics Processors

Ultra high impedance 1/4" instrument input
Mix Output Connectors are XLR Balanced Providing Connectivity for Professional Recording Systems

3.

CONTROL ELEMENTS

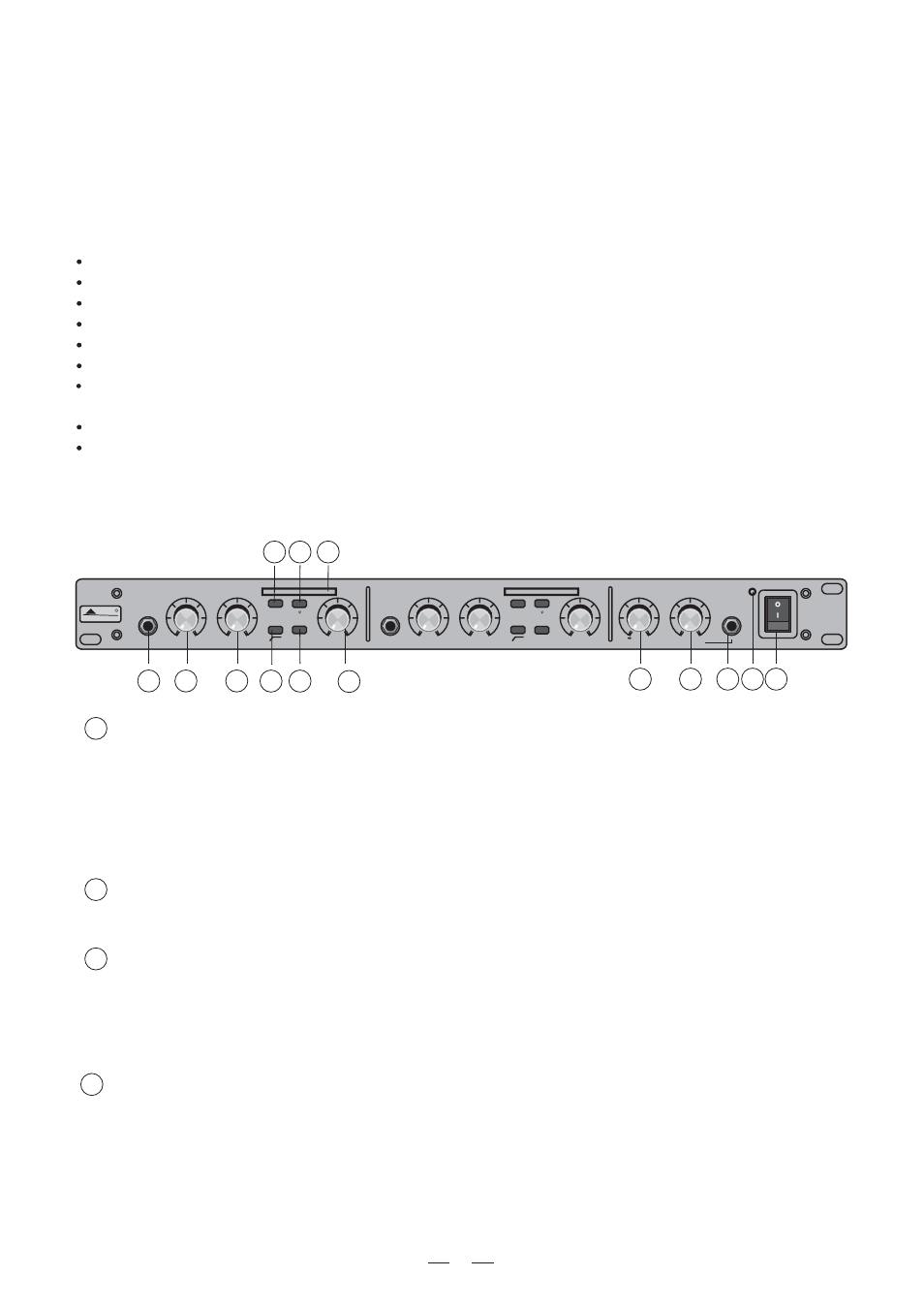

3.1 The Front Panel

4

1

2

3

1/4" Instrument Input Socket

The unit is equipped with two 1/4" instrument inputs, which have been designed to connect some instruments
such as electric guitars or basses. They are

ultra high impedance amplifier designed to allow the audio potential

of an acoustic or electric instrument pickup to be fully realized.

Note: please do not use the pre-amp of the instrument on-board (if possible), in order to avoid distortion caused
by over-driving the input signal.

Input Gain Control

This pot can adjust the gain of the input signal. The gain range can be varied from 0dB to +60dB.

Vintage Control

This pot can be used to select the amount of boost (0%-100%) applied to the even harmonic series of the signal

Being amplified by a channel of the MP2D. The effect of manipulating the harmonic distortion is of increasing or
decreasing the apparent "warmth" of the signal. This capability is derived from the transformer and its dual servo

gain stage.

2 CHANNEL

MIC PRE-AMPLIFIER

48V

POWER

GAIN

VINTAGE

0%

100%

L/R

PAN

L

R

CHANNEL 1

48V

GAIN

VINTAGE

0%

100%

L/R

PAN

L

R

CHANNEL 2

LEVEL

PHONES

10dB

MASTER

MP2D

60dB

0

60dB

0

INSTRUMENT

INSTRUMENT

-16 -8 -4 -2 0

2

4

8 16 24

-24

-30

-16 -8 -4 -2 0

2

4

8 16 24

-24

-30

0

-

ON

OUTPUT LEVEL

OUTPUT LEVEL

10dB

0

48V

POWER

GAIN

VINTAGE

0%

100%

L/R

PAN

L

R

CHANNEL 1

48V

GAIN

VINTAGE

0%

100%

L/R

PAN

L

R

CHANNEL 2

LEVEL

PHONES

10dB

MASTER

60dB

0

60dB

0

INSTRUMENT

INSTRUMENT

-16 -8 -4 -2 0

2

4

8 16 24

-24

-30

16 24

0

-

ON

OUTPUT LEVEL

OUTPUT LEVEL

10dB

0

2 CHANNEL

MIC PRE-AMPLIFIER

MP2D

1

2

3

5 6

8

9

-16 -8 -4 -2 0

2

4

8

-24

-30

7

4

10

13

12 11

14

LTO

E S O T A R

R

The unit provides +48V Phantom Power to every channel. Via this lighted switch, you can turn on /off the +48V

phantom Power for condenser microphone.

Note: please do not connect dynamic microphone when the phantom Power is on. Otherwise, It may damage
the device and the microphone.

Phantom Power Switch
