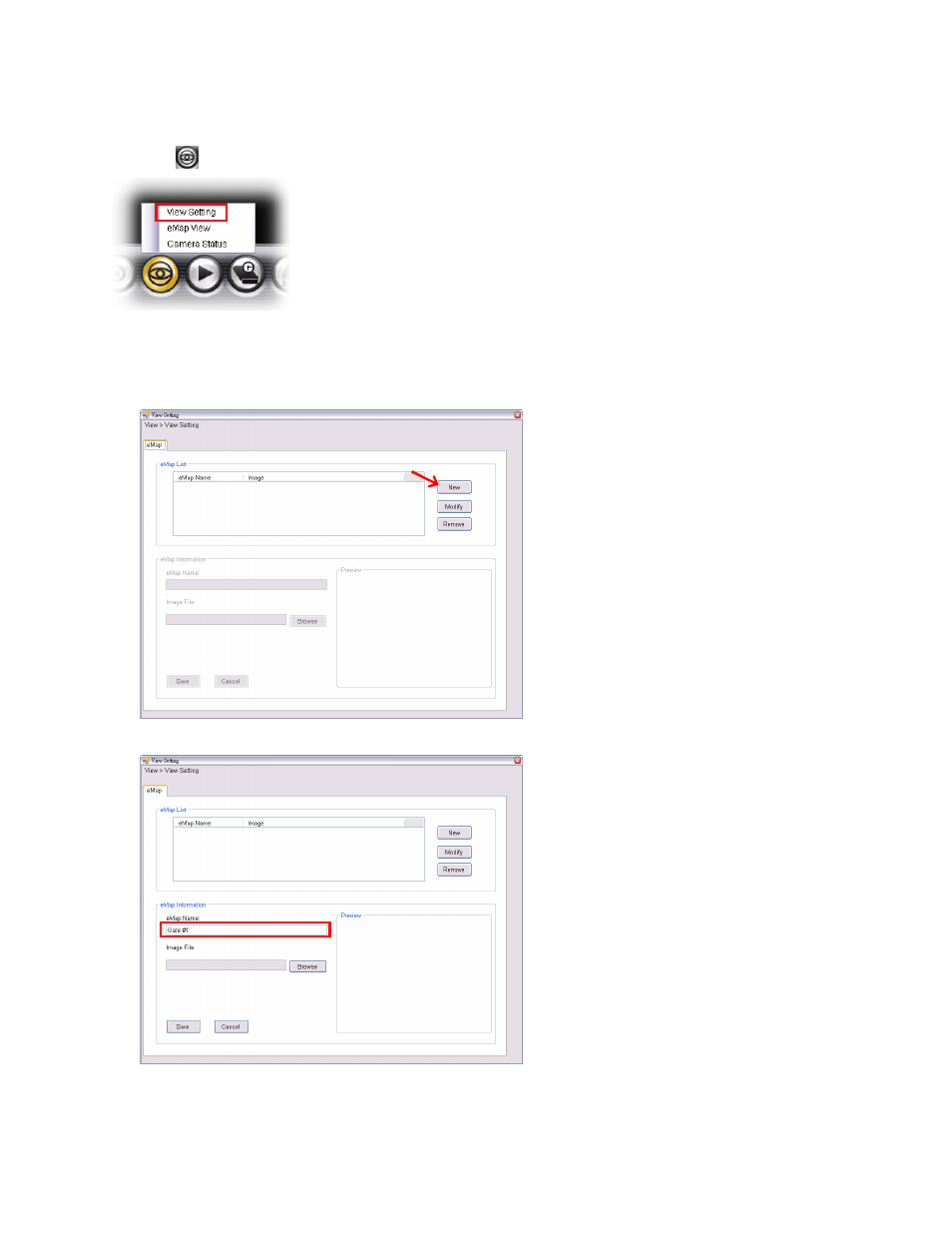

5.5 Configuring the eMap View Setting
Click the
button and select View Setting to configure the camera view setting of eMap mode.
eMap refers to the geography and device scope of the UltraView Pro, which visually presents the devices
in your security system. It uses a background of the area (e.g. a picture or a map) as the interface for
monitoring.
1. On the View Setting window, click New.
2. Enter the eMap Name.
3. Click Browse to select a Picture File from your computer. The selected picture will be displayed in
the Preview window.
