- 29 -
4.5 Setting up Video & Audio
The Video & Audio menu contains three sub-menus that provide the video and audio settings for the
camera.

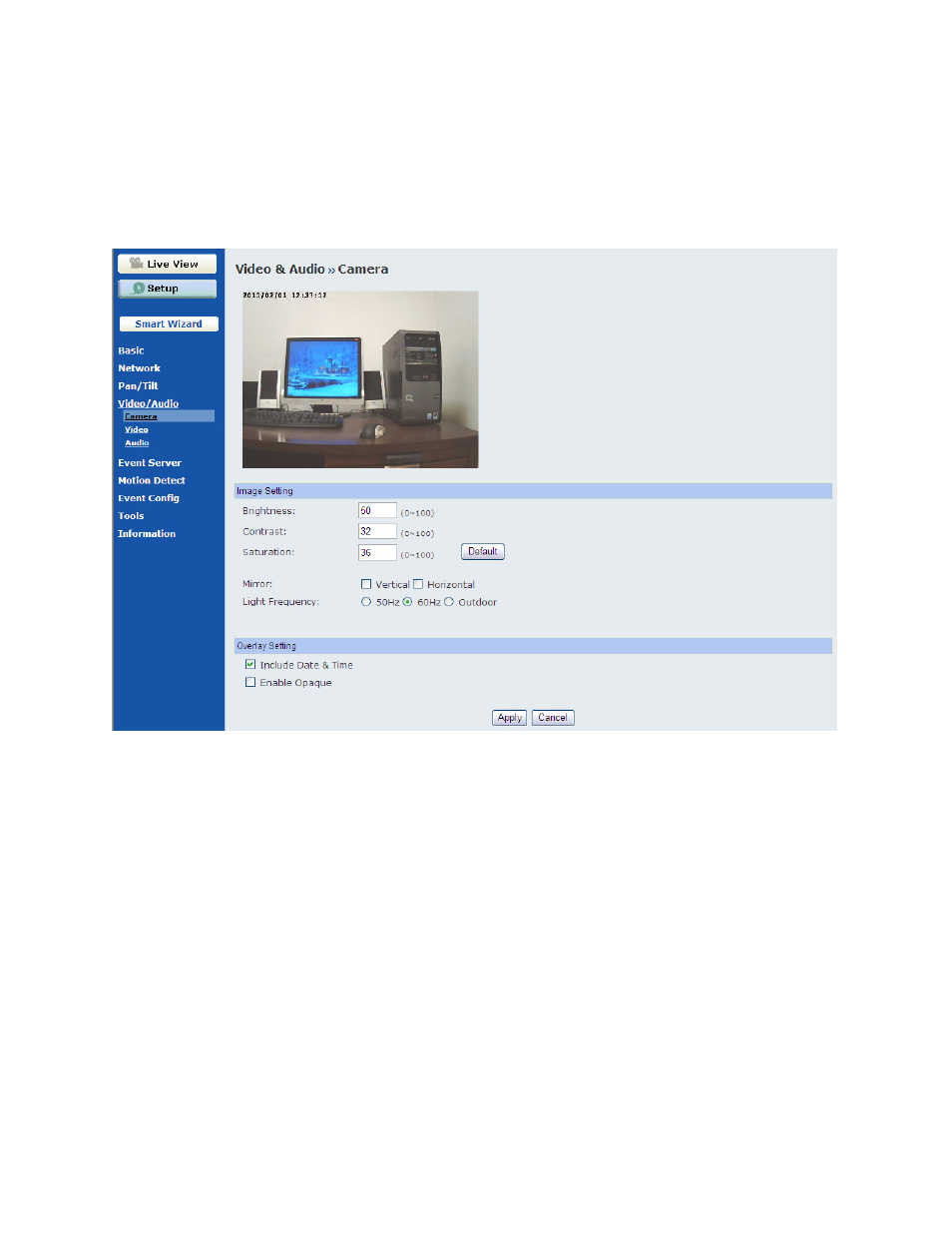

Video & Audio >> Camera
Image Setting
- Brightness: Adjust the brightness level from 0 ~ 100.
- Contrast: Adjust the contrast level from 0 ~ 100.
- Saturation: Adjust the colors level from 0 ~ 100 .
Click Default to restore the default settings of the three options above.
- Mirror: Select the Horizontal option to mirror the image horizontally. Select the Vertical option to
mirror the image vertically.
- Light Frequency: Select the proper frequency according to the camera’s location: 50Hz, 60Hz, or
Outdoor.
Overlay Setting
- Includes Date & Time: Select this option to display the date & time stamp on the live view image.
- Enable Opaque: Select this option to set a black background to the displayed date & time stamp.
