M o d e l N o . M E - 6 8 5 3 T r o u b l e s h o o t i n g
5
Troubleshooting

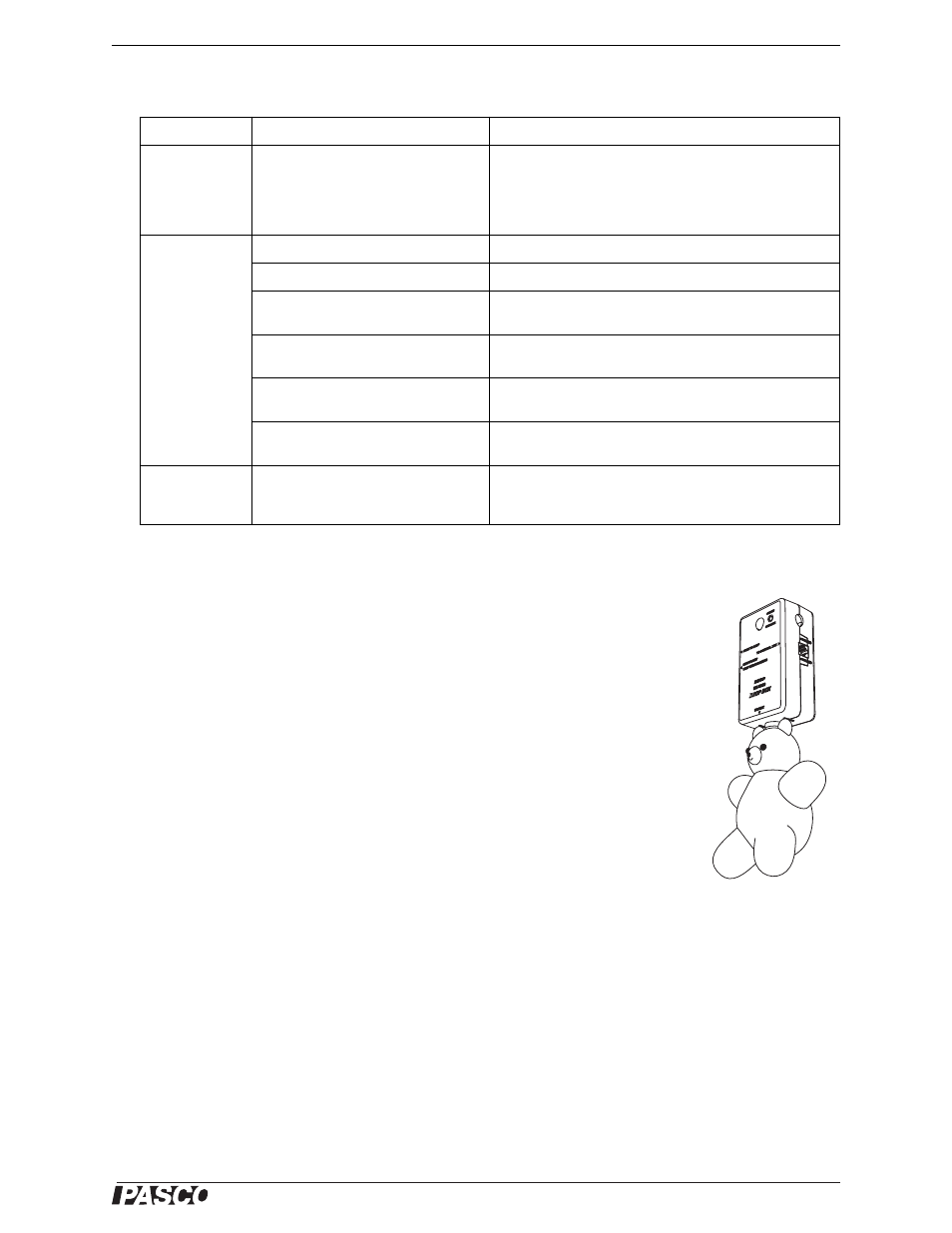

Alternative Targets
Instead of the included target, you can have the drop box release a different object
such as a toy stuffed animal. The object should be massive enough to fall with con-
stant acceleration, but not more than about 400 g. Attach a piece of steel to the object
so that it can be suspended from the permanent magnet of the drop box. Use a larger
piece of steel for a heavier object.
Technical Support
For assistance with any PASCO product, contact PASCO at:
Limited Warranty For a description of the product warranty, see the PASCO catalog.
Copyright The PASCO scientific 012-09803A Shoot-the-target Accessory Instruction Manual is copyrighted with all rights reserved.
Permission is granted to non-profit educational institutions for reproduction of any part of this manual, providing the reproductions are
used only in their laboratories and classrooms, and are not sold for profit. Reproduction under any other circumstances, without the
written consent of PASCO scientific, is prohibited.
Trademarks PASCO and PASCO scientific are trademarks or registered trademarks of PASCO scientific, in the United States
and/or in other countries. All other brands, products, or service names are or may be trademarks or service marks of, and are used to
identify, products or services of, their respective owners. For more information visit www.pasco.com/legal.
Problem Possible Cause Solution
Projectile and
target hit floor
before they
collide Elapsed time for projectile to traverse
horizontal distance between launcher
and target exceeds time for target to
reach floor Possible solutions:
•
Use faster launch velocity.
• Move launcher closer to target and re-aim.
• Mount launcher higher and re-aim.
• Move drop box up or down and re-aim (see equation 8).
Target does not
drop ACTIVE / INACTIVE switch set to INACTIVE Set the switch on the control box to ACTIVE .
READY light is blinking Wait until the READY light glows steadily.
Cable disconnected Ensure that the cables from the photogate to control box and
from the control box to the drop box are properly connected.
Control box not powered Ensure that the AC adapter is powered and connected to the
control box.
Projectile does not pass through
photogate beam Adjust photogate position.
Target is too light (if using a target other
than the included one) Add weight to target
Projectile misses
target Launcher badly aimed Remove projectile from launcher, hang target from drop box,
and re-check aim by sighting through back of launcher or
using optional laser sight.
