18 ASUS K7M User’s Manual
3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP

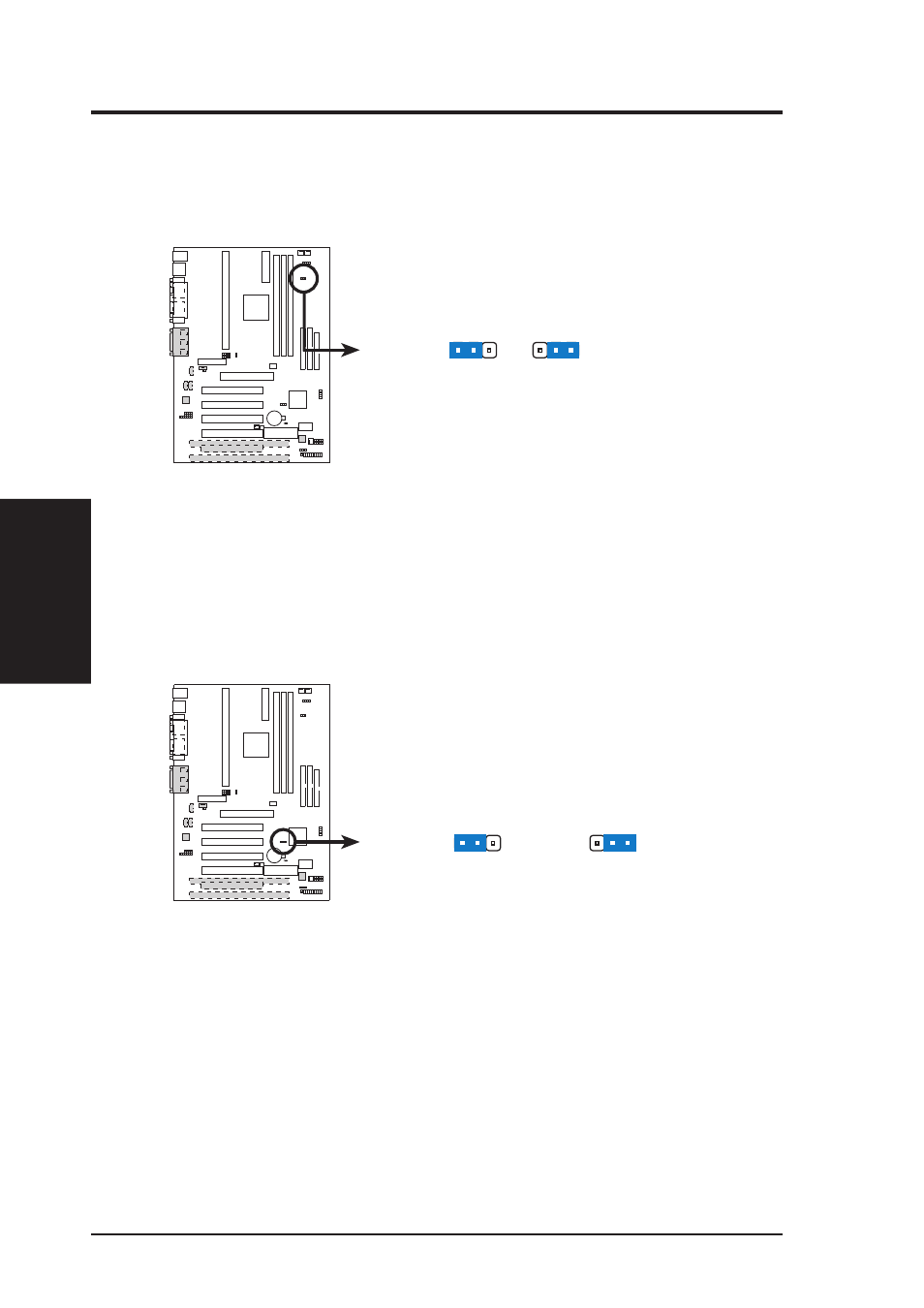

1) Vaux Setting (3VSBSLT)
This jumper allows you to select the voltage supplied to add-in PCI cards that
require Vaux power.
K7M PCI Vaux Selection
Add 3 Volt Add 3 VSB
1 2 3 1 2 3
3VSBSLT
01 01 01
K7M
2) PS/2 Mouse Setting (MSDATA)
This jumper allows you to release IRQ12 for use by add-in cards if you are not
using a PS/2 mouse. Set to IRQ12 if you do not have a PS/2 mouse. Set to
MSDATA if you want to use a PS/2 mouse.
K7M PS/2 Mouse Selection
IRQ12
(w/o PS/2 Mouse)
MSDATA
(w/ PS/2 Mouse)
1 2 3 1 2 3
MSDATA
01 01 01
K7M
