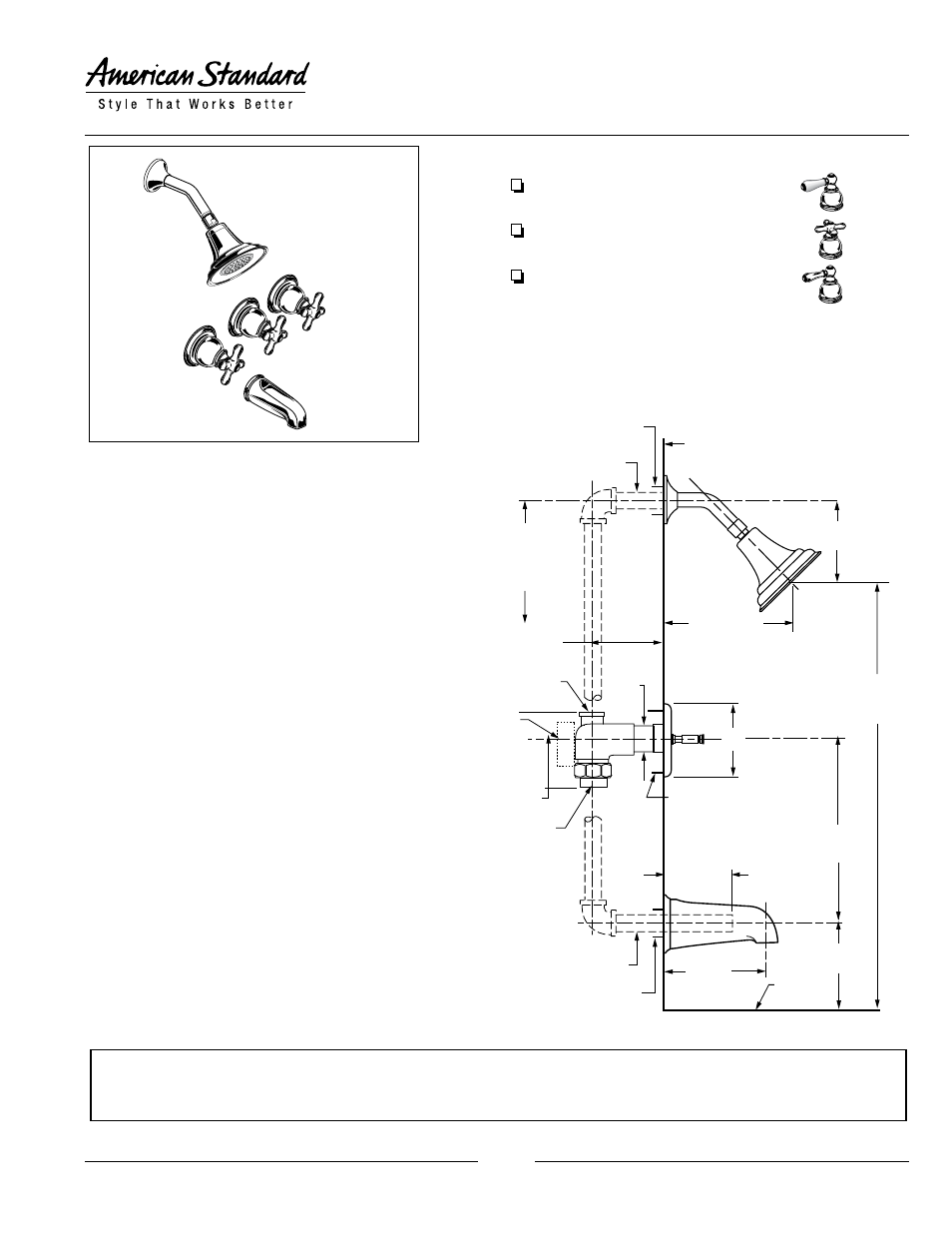

B29

© 2008 AS America Inc.

HAMPTON

THREE-HANDLE BATH/SHOWER FITTING

GENERAL DESCRIPTION:

Cast brass valve body on 8 inch centers. 1/4 turn washerless

ceramic disc valve cartridges - reversible for use with either

lever or cross handles. 1/2" NPT female threaded inlets and

outlets. Showerhead with 2.5gpm/9.5L/min. flow restrictor.

Third handle provides positive diverting action between

showerhead and tub spout.

7225.723 Shown

MODEL NUMBER:

7225.713 Bath/Shower Fitting

I.P.S. Tub Spout. Porcelain Lever handles.

7225.723 Bath/Shower Fitting

I.P.S. Tub Spout. Metal Cross handles.

7225.733 Bath/Shower Fitting

I.P.S. Tub Spout. Metal Lever handles.

SUGGESTED SPECIFICATION:

Three handle bath/shower fitting shall feature cast brass construction. Shall also feature 1/4 turn washerless ceramic disc valve

cartridges that are reversible for use with cross or lever handles. Fitting shall be American Standard Model # 7225.____.___.

CODES AND STANDARDS

These products meet or exceed the following

codes and standards:

ASME A112.18.1

CSA B 125

FLOW RATE*

GALLONS PER MINUTE

I N L E T P R E S S U R E ( P S I )

*Flow rates shown are for mixed hot and cold.

0

5

10

15

20

SHOWER

SPOUT

80

60

40

20

130mm

(5-1/8)REF.

(3) 46mm (1-13/16) DIA.

HOLES FOR VALVES AND

TRANSFER VALVE ON

203mm(8) CENTERS

CROSS

BRACE

FINISHED

WALL

32mm(1-1/4)

DIA HOLE

64mm ± 22mm

(2-1/2 ± 7/8)

102mm

(4)

TOP OF

TUB RIM

OPTIONAL TO

FINISHED FLOOR

USUALLY BETWEEN

1651mm - 1981mm

(65 - 78)

1/2" N.P.T.

SHOWER ARM

32mm

(1-1/4)

DIA HOLE

1/2" COPPER

45mm

(1-3/4)

28mm

(1-1/8)

DIA.

UNION INLET

1/2"-14 N.P.T.

1/2 N.P.T.

TO SHOWER

305mm

(12)

OPTIONAL

102mm

(4)

Meets the American Disabilities Act Guidelines

and

ANSI A117.1 Requirements for the

physically challenged.

Product
Number

Description

7225.713

Three handle Bath/Shower.

Porcelain Lever handles.

7225.723

Three handle Bath/Shower.

Metal Cross handles.

7225.733

Three handle Bath/Shower.

Metal Lever handles.

Finish Options

Polished

Chrome

P.Chrome

/PVD

Brass

Mix

002

299

PVD

Polished

Brass

099

PVD

Blackened

Bronze

068

PVD

Satin/

Chrome

Mix

221

PVD

Satin

Nickel

295

PVD

Satin/

Brass

Mix

297

N/A

= NOT AVAILABLE

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

PRODUCT FEATURES:

Brass Construction:

Durable - Ideal for prolonged contact

with water. Provides the finest surface for application of all

finishes.

Ceramic Disc Valve Cartridges:

Assures a lifetime of

drip-free performance.

Increased Rough-in:

42mm to 86mm (1-5/8 to 3-3/8).

Exclusive Valve Escutcheon Design:

3 piece escutcheon

design accomodates deep and shallow rough-ins. Provides

water tight seal around valves.

Integral Unions:

No soldering required.

Exclusive Handle Alignment System:

Allows fine

tuning of handle position.

Choice of Finishes:

Wide range of durable finishes.

Exclusive Plaster Guard:

Plaster guard can be used to

test for leaks prior to handle installation.

75mm

(3)

188cm FOR

HEAD

CLEARANCE

(74")

127 mm REF.

(5") REF.

178 mm REF.

(7") REF.
