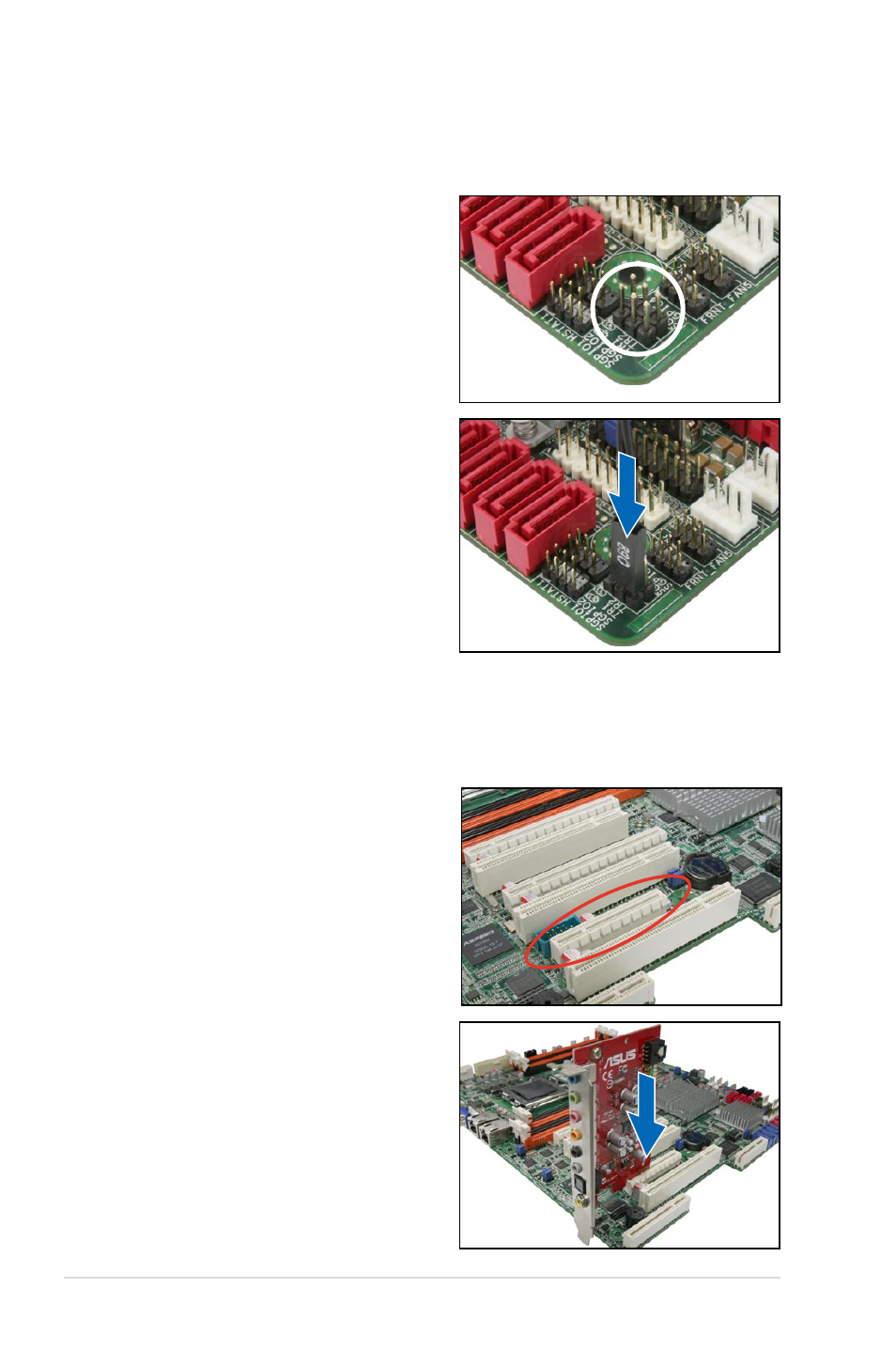

Chapter 2: Hardware information
2.5.11 Connecting the thermal sensor cable
Follow the steps below to connect the thermal sensor cable to the connector on
your motherboard.
1. Locate the TR1 or TR2 connector
on the motherboard.
2. Connect the thermal sensor cable to
the connector.
3. Place the other end of the thermal sensor cable to the device you would like
to monitor temperature.
2.5.12 Installing the audio card
1. Locate the MIO/PCIE slot on the
motherboard.
2. Align the card connector with the
slot and press firmly until the card
sits on the slot completely.
