Diamond Products CC8000 - Manual (Page 41)

17
14
18
14
SCALE 1 : 2
HYDRAULIC STEER MOTOR.
WHEEL,REPLACES
DETAIL A
2
MOUNTS OVER DRIVE
8
7
9
15
16 14
THIS SURFACE
TO REAR.
5 13

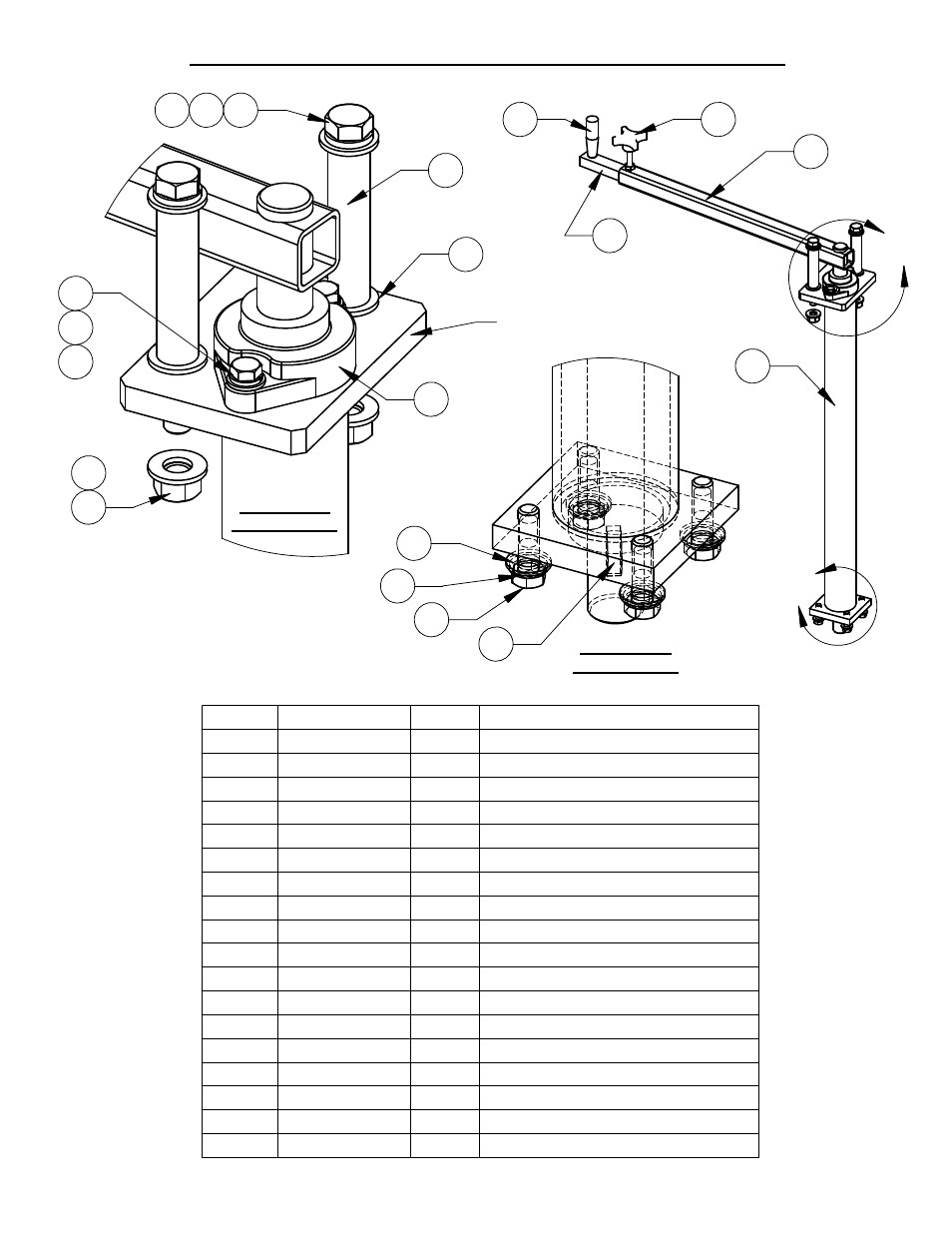

6010447 CC8000 TILLER STEERING OPTION
1
3
4 A
B
ITEM NO. PART NUMBER QTY. DESCRIPTION
1 6010453 1 Tiller Steer Weldment
2 2501638 1 Bearing, 1" Flanged, 2-Bolt
3 6010454 1 Tiller Steering Weldment
4 6010455 1 Bar, 3/4 x1 x 22-1/2"
5 2900234 1 Hand Lock Knob, 3/8"-16
6 2701901 1 Key, Woodruff, 1/4 x 1.0 Dia.
7 2900022 2 Flat Washer, 5/16" SAE
8 2900031 2 Lock Washer, 5/16" Split
9 2900138 2 Cap Screw, Hex Hd., 5/16-18 x 1"
10 2900014 4 Flat Washer, 3/8" SAE
11 2900006 4 Lock Washer, 3/8" Split
12 2900013 4 Cap Screw, Hex Hd., 3/8-16 x 1-1/4"
13 2505085 1 Machine Handle, Revolving
14 2900058 6 Flat Washer, 1/2" SAE
15 6010463 2 Spacer Tube, 3/4 OD x 13 Gage
16 2900084 2 Lock Washer, 1/2" Split
17 2900395 2 Cap Screw, Hex Hd., 1/2-13 x 5"
18 2900037 2 Hex Nut, 1/2-13
6
10
11
DETAIL B
SCALE 1 : 2
12
41
