Page 21
230 VOLT: SET RELAY TO 72 AMP
208 VOLT: SET RELAY TO 78 AMP

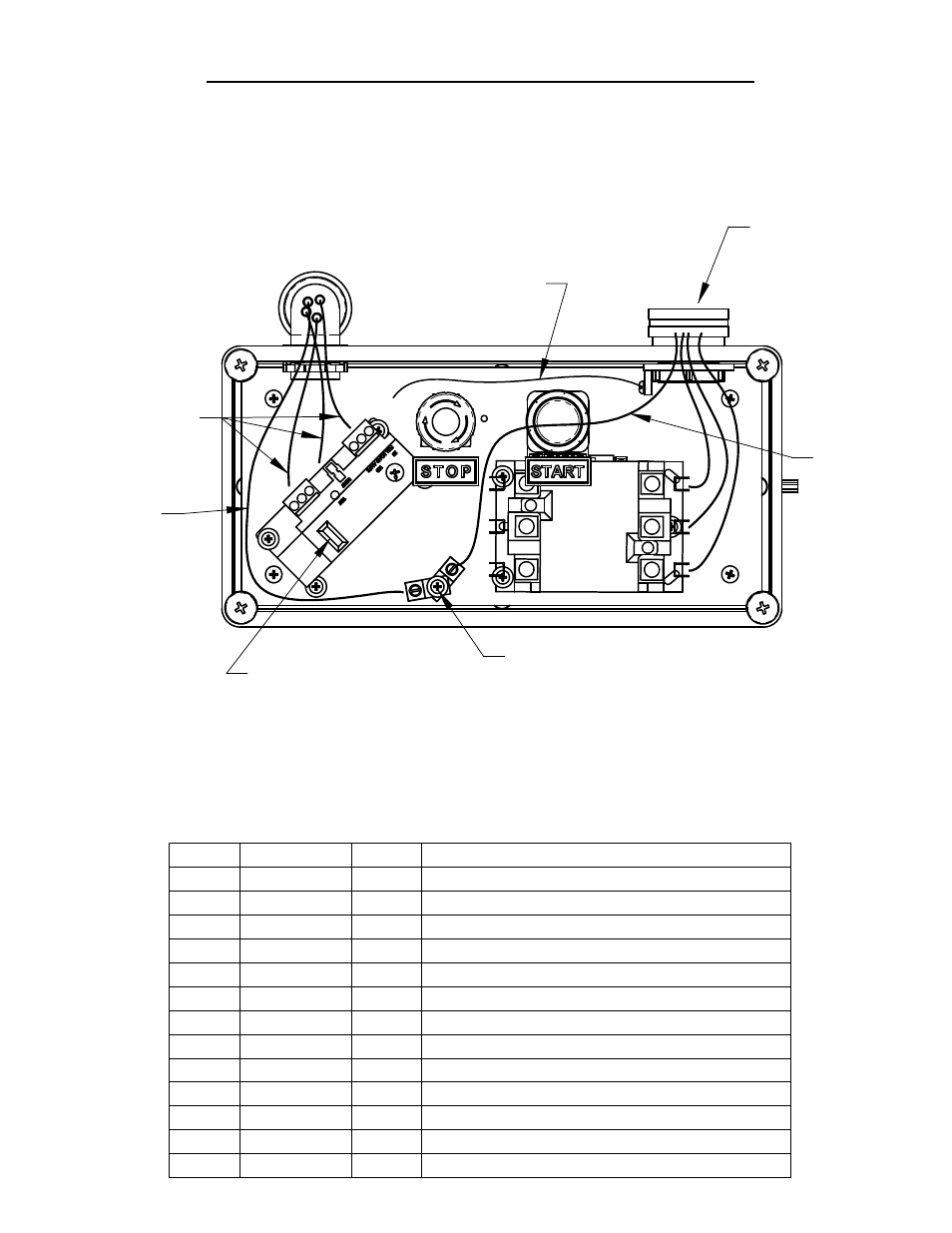

4646201 STARTER BOX ASSEMBLY, 230 VOLT
ITEM
PART NO.
QTY.
DESCRIPTION
1
4646194
1
Starter Box, 208-240V, 30HP
2
2800898
1
Connector, 1", Sealtite, 90 Deg.
3
2800193
1
Lock Nut, 1"
4
2800342
1
Connector, Cord, 1-1/4"
5
2800934
1
Grounding Nut, 1-1/4"
6
4600161
1
Conduit, Seal Tite, 1" x 24"
7
4641053
1
Wire, 6 Gage, Green
8
4641054
3
Wire Assy., 6 Gage, Black
9
4641065
1
Cable, 4 Gage, 4 Wire, 20"
10
4641056
1
Wire Assy., 12 Gage, Green
11
1800810
1
Voltage Label, 230V
12
2900016
2
Flat Washer, #10 USS
13
2900708
2
Machine Screw, Rd. Hd., #10-32 x 1/2"
GREEN
CABLE
GREEN
POWER
STUD
GROUND
PHASE UNBALANCE - ON
PHASE LOSS - ON
CLASS 20
SETTINGS
RESET MODE - AUTO
GROUND FAULT - OFF
BLACK THRU
RELAY TO
CONTACTOR
4641056
GROUND NUT
TO ANY SCREW
IN PLATE.
