Diamond Products CC7272 - Manual (Page 35)

7
12
9
8
3
6
8
9
10
18
1
2
6
10
8
9
8
9
11
4
4
2
17
17
5
2
8
9
10
16
15
3
16
15
3
14
13
6
6
7
14
7
13
7
#6013182 for saws prior to May 2007

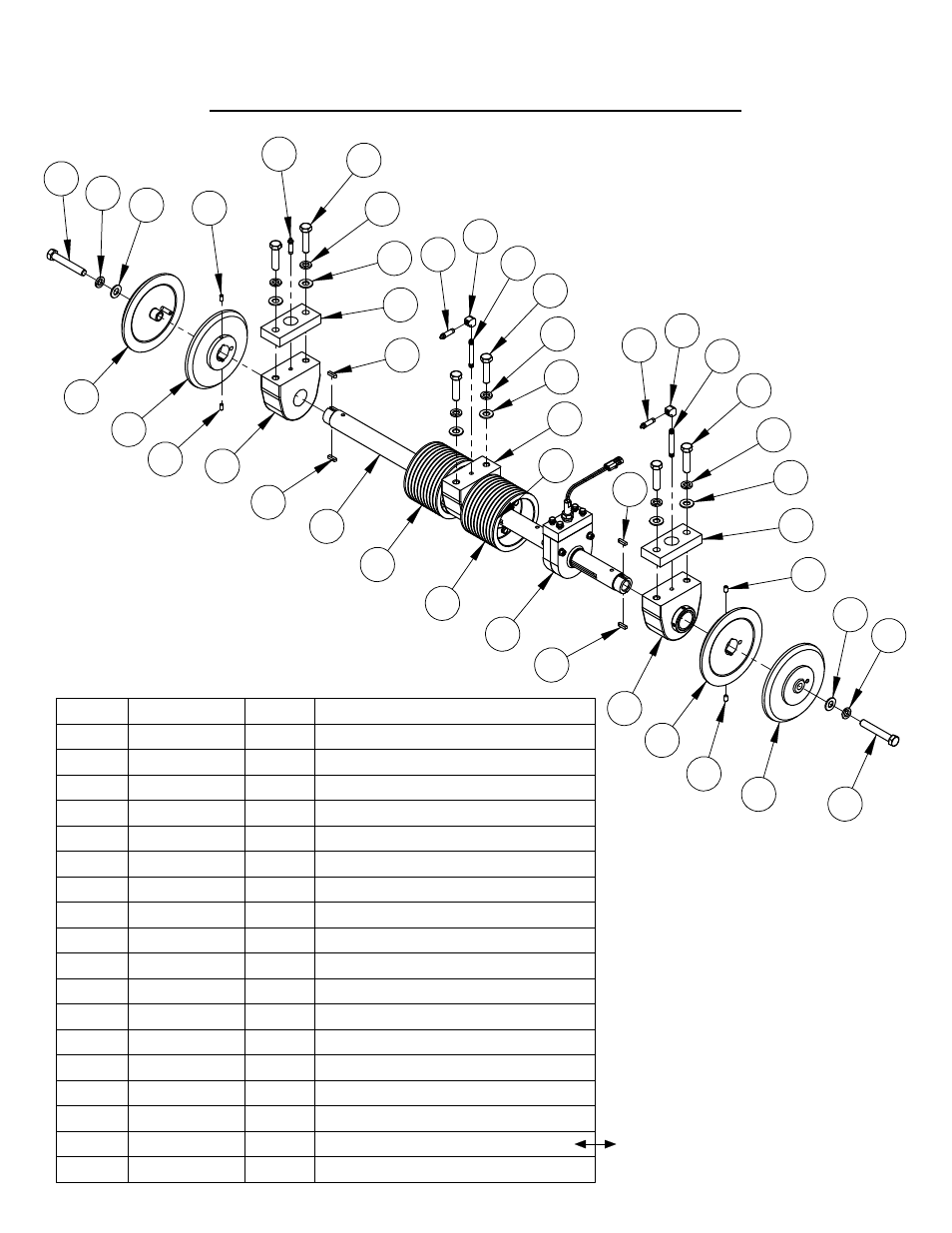

Blade Shaft Assembly #6013195B* (Blades 42" - 54")
*Use #6013181B for saws prior to May 2007
ITEM PART NO. QTY. DESCRIPTION
1 6013049 1 Blade Shaft
2 2500151 3 Blade Shaft Bearing, 1-3/4"
3 2900264 3 Grease Fitting, 1/8" NPT x 1-3/4"
4 6013019 2 Blade Shaft Bearing Spacer 1"
5 6047959 2 Key, 3/8" Sq. x 2-1/4"
6 6010040 4 Key, 1/4" Sq. x 15/16"
7 2900418 4 Set Screw, Soc. Hd., 5/16-18 x 5/8"
8 2900002 8 Flat Washer, 5/8" SAE
9 2900113 8 Lock Washer, 5/8" Split
10 2900527 6 Cap Screw, Hex Hd., 5/8-11 x 2-1/2"
11 2900146 1 Cap Screw, Hex Hd., 5/8-11 x 4"
12 2900130 1 Cap Screw, Hex Hd., 5/8-11 x 4" LH
13 6013017 2 Inner Flange 8"
14 6013018 2 Outer Flange 8" with Pin
15 3200154 2 Pipe Elbow, 1/8" NPT Female
16 3200179 2 Pipe Nipple, 1/8" NPT x 3"
17 6013046 2 Sheave, 6" x 10 Groove w/Bushing
18 6013169 1 Shaft Tach Gear Assembly
35
