ITEM PART NO. QTY. DESCRIPTION
1 2500648 1 Fuel Tank
2 2500649 1 Fuel Tank Cap
3 2500205 1 Fuel Tank Grommet
4 6011083 2 Fuel Tank Mount Bar
5 2900019 4 Cap Screw, Hex Hd., 5/16-18 x 3/4"
6 2900138 4 Cap Screw, Hex Hd., 5/16-18 x 1"
7 2900031 8 Lock Washer, 5/16" Split
8 2900022 8 Flat Washer, 5/16" SAE
9 2501434 1 Hose Clamp, 5/8" x 3/4" Wide
10 3200206 1 Pipe Plug, 1/4" NPT
11 3200108 1 Fuel Shut-Off Valve, 1/4"
12 3200057 1 Elbow, 1/4" M. Pipe to 1/4" M. JIC
13 3200091 1 Fitting, 1/4" F. JIC to 1/4" Push Lock
14 6011062 1 Fuel Line Hose, 1/4" I.D. x 20"
15 2500201 1 Filter, Gasoline Fuel
16 3200062 2 Hose Clamp #4

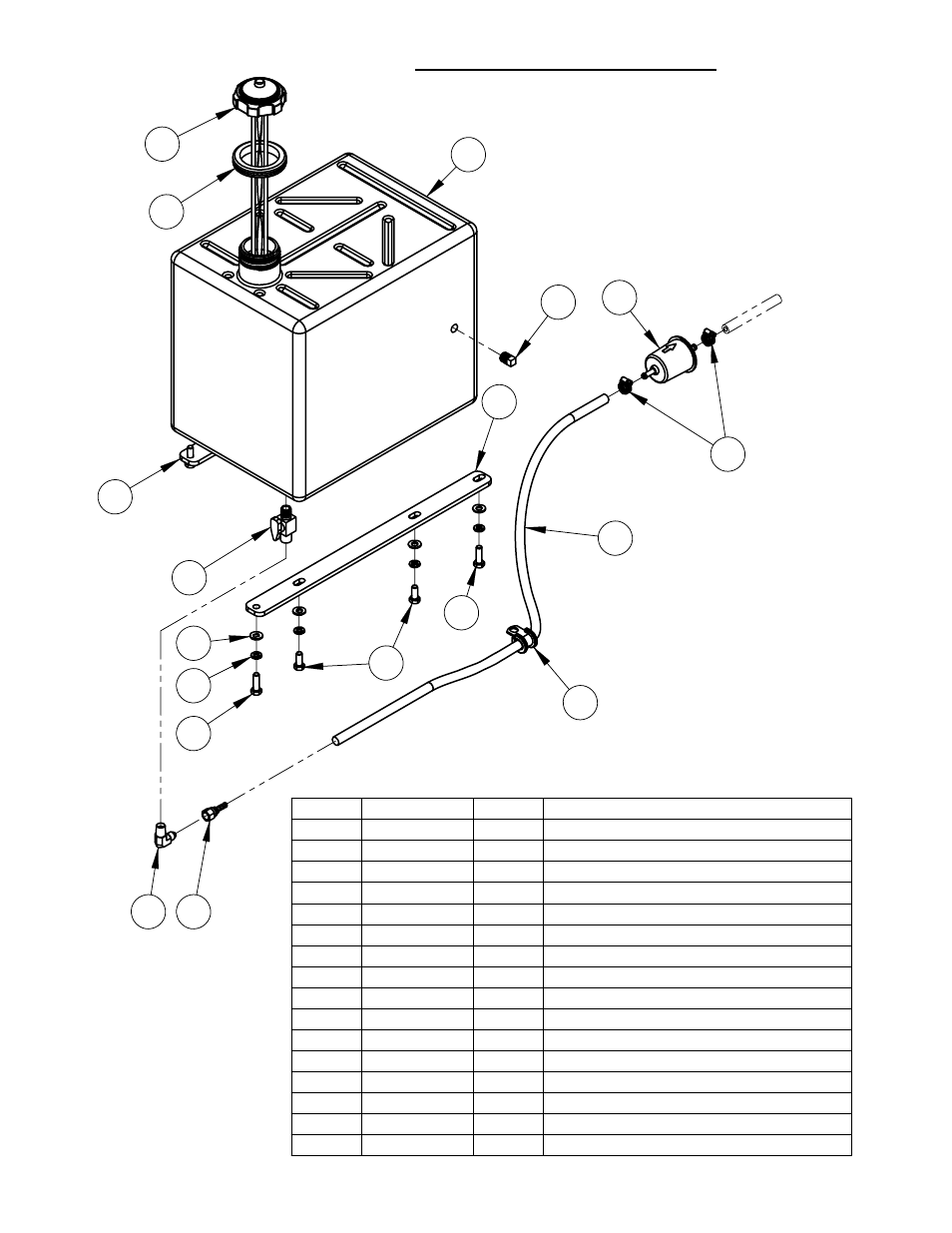

Fuel Tank Assembly 6011733
6
2
3
1
4
11
8
7
6
12 13
9
14
15
16
4
5
10
25
