Diamond Products CC1300XL (Gas) - Manual (Page 17)

12
15
16
13
14
11
10
9
14
17
16
16
1
8
6
7
5
3
2
4
9
5 18
19
18.3
18.2
18.1
18.4
18.5

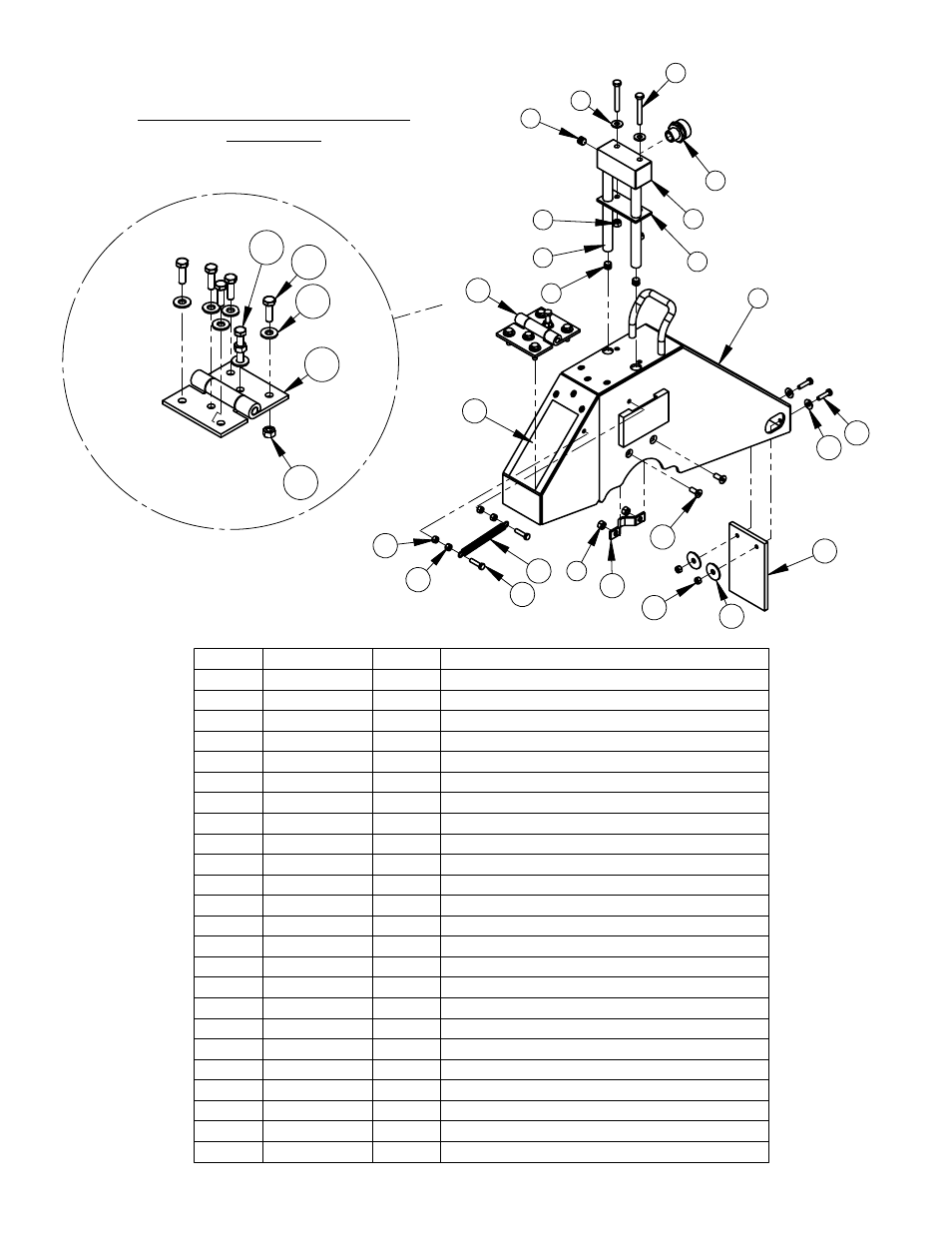

14" Blade Guard Assembly
#6048912
ITEM PART NO. QTY. DESCRIPTION
1 6048911 1 14" Blade Guard
2 2500829 1 Water Manifold Gasket
3 6048123 1 Water Manifold
4 6048283 2 Water Tube for 14" Guard
5 3200001 3 Plug, 1/8" NPT
6 3200002 1 Fitting, 3/8" M. Pipe to 3/4" M. Garden
7 2900009 2 Flat Washer, 1/4" SAE
8 2900244 2 Cap Screw, Hex Hd., M6 x 45mm
9 2900302 6 Lock Nut, M6 Nylon
10 6048155 2 Water Tube Clamp
11 2900308 4 Cap Screw, Flat Hd. Soc., M6 x 16mm
12 6048039 1 Splash Flap
13 2900016 2 Flat Washer, #10 USS
14 2900309 4 Cap Screw, Hex Hd., M5 x 20mm
15 2900083 2 Fender Washer, 1/4" I.D. x 1-1/4" O.D.
16 2900301 6 Lock Nut, M5 Nylon
17 2500066 1 Spring, 3/8 X .055 X 3"
18 6048026 1 Hinge Assy., Metric Fasteners
18.1 2500270 1 Blade Guard Hinge
18.2 2900009 6 Flat Washer, 1/4" SAE
18.3 2900310 5 Cap Screw, Hex Hd., M6 x 20mm
18.4 2900302 7 Lock Nut, M6 Nylon
18.5 2900312 1 Cap Screw, Hex Hd., M6 x 35mm
19 1800001 1 Warning Label
17
