Belt tension setting – Diamond Products CC155 User Manual
Page 25
CC155 Green Concrete Saw Manual
21

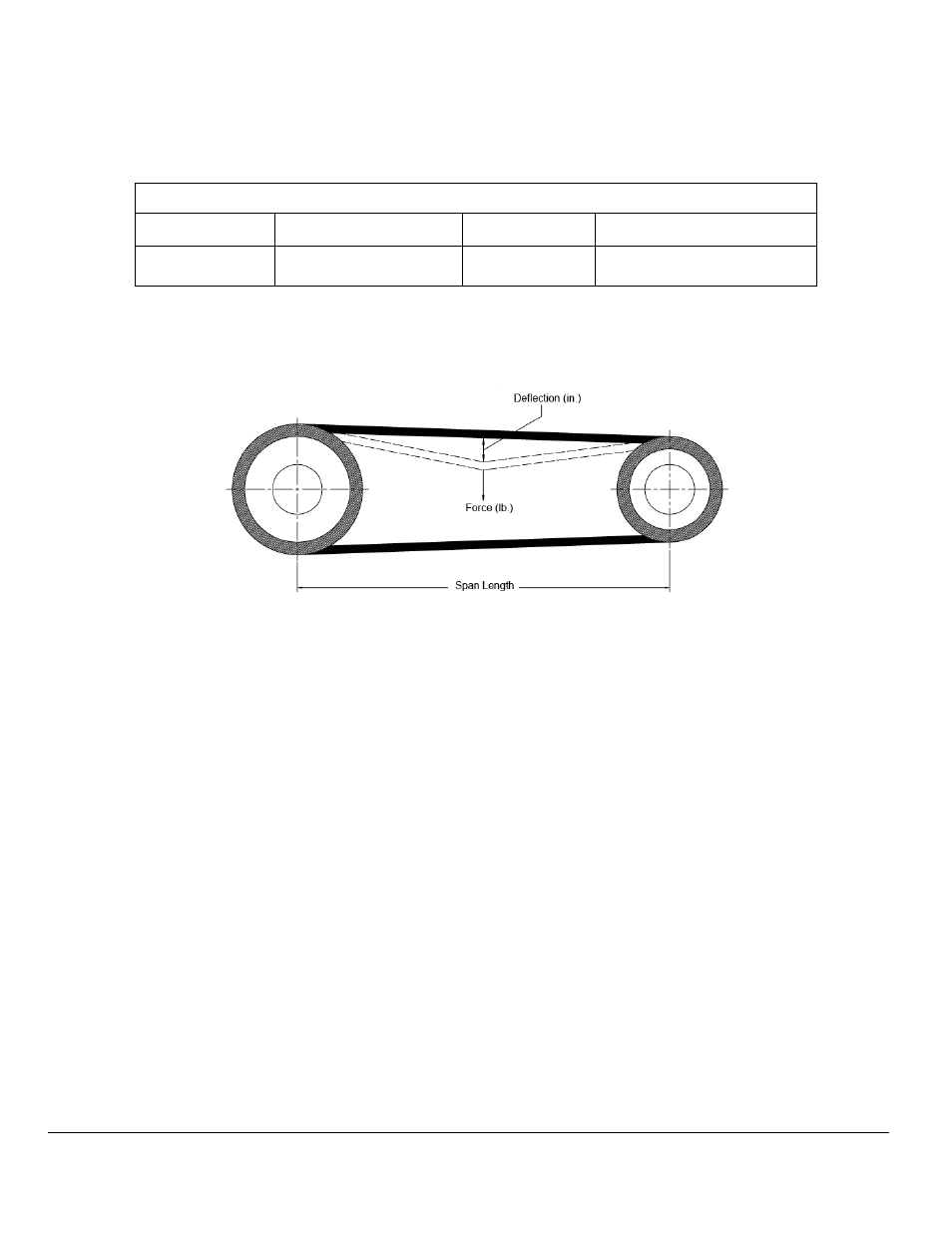

Belt Tension Setting
Table 5: Belt Tension Setting
Model Number
Engine Type
Belt
Tension Setting
CC155H
5HP Honda GX160
3VX-300
0.16 in at 0.6 lb force
Deflection (in.) should be equal to number of inches listed in chart
above when force (lb.) listed in chart above is applied to belt using
tension gauge.
