Multichannel Systems ADPT-NN-16-STIM User Manual
Connecting the mpa8i to the adpt-nn-16-stim

ADPT-NN-16-STIM
16-Electrode NeuroNexus Probe
Adapter for MPA8I Amplifiers
with stimulation
Connecting the MPA8I to the ADPT-NN-16-STIM
Multi Channel Systems
MCS GmbH
Aspenhaustrasse 21
72770 Reutlingen
Germany
Fon +49-7121-9 09 25- 0
Fax +49-7121-9 09 25-11
[email protected]
www.multichannelsystems.com
© 201
2 Multi Channel Systems MCS GmbH
Product information is subject to change
without notice.
Warning: The device may only be used together with the MPA8I from Multi Channel Systems
MCS GmbH and the 16-channel probe from NeuroNexus, and only for the specified purpose.
Damage of the device and even fatal injuries can result from improper use.
!

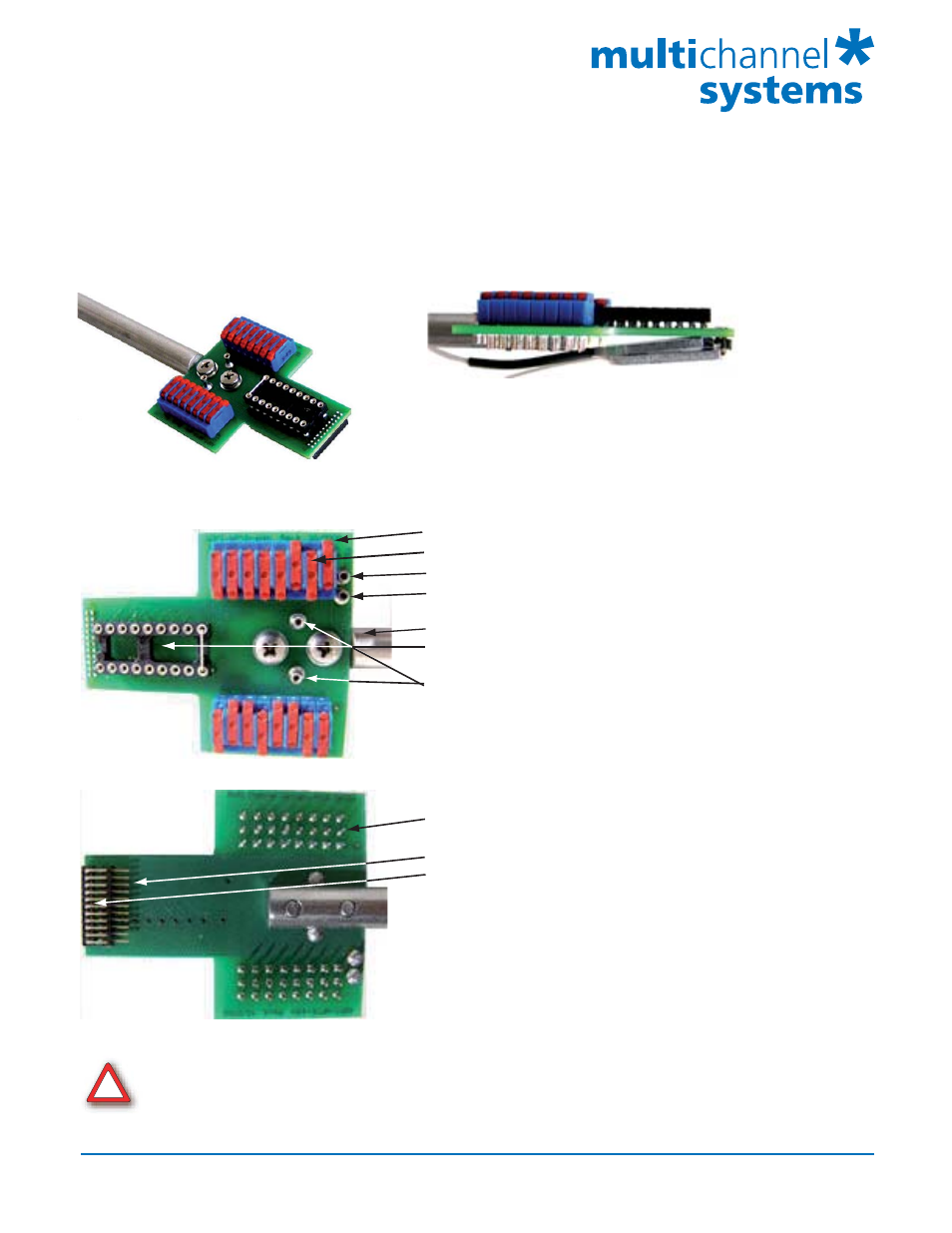

Top View
Bottom View
Toggle Switch : Stimulation ON
Toggle Switch : Stimulation OFF
STIM
GND
NeuroNexus Probe Rod Mount NN-RM
Connector for 16-Electrode NeuroNexus Probe
GND
Connector for STG (0.76 mm connector)
Connector for MPA8I No. 1
Connector for MPA8I No. 2
It is possible to stimulate one or more electrodes
by switching the toggle switches in ON position.
You can apply one type of stimulation pulse only!
Connector for NeuroNexus Probe
MPA8I No. 1
MPA8I No. 2
Important:
Black side of MPA8I faced down !
Top view : ADPT-NN-16-STIM
without NeuroNexus Probe
Side View
