ADPT-NNCP-16
16-Electrode Chronic Probe
Adapter for MPA8I Amplifiers
Connecting the NeuroNexus Chronic Probe CP16 to the NNCP-Adapter
Multi Channel Systems
MCS GmbH
Aspenhaustrasse 21
72770 Reutlingen
Germany Fon +49-7121-9 09 25- 0
Fax +49-7121-9 09 25-11
[email protected]
www.multichannelsystems.com
© 2012 Multi Channel Systems MCS GmbH
Product information is subject to change
without notice.
Pin Layout of MPA8I No.1 and No. 2 and NeuroNexus Chronic Probe CP16

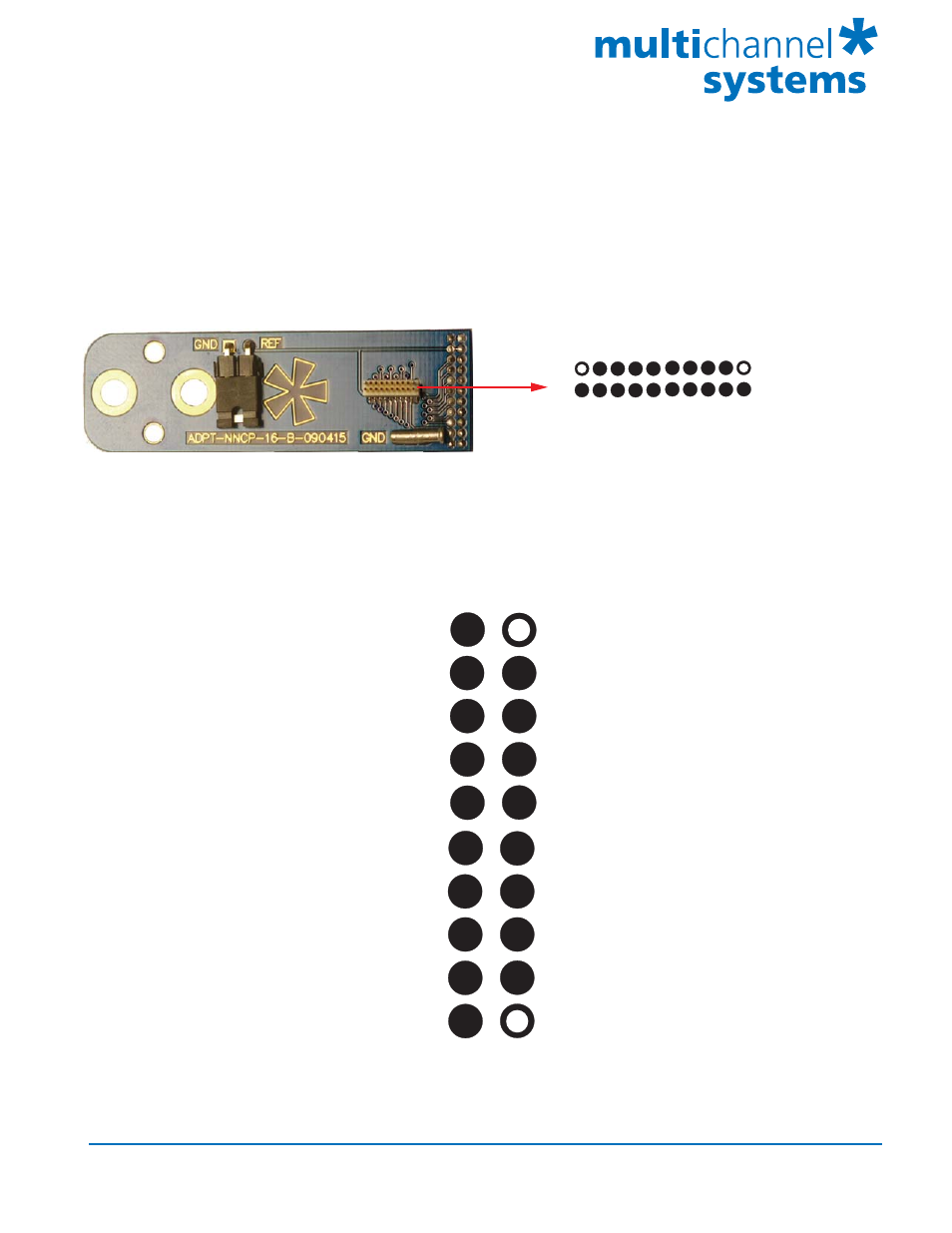

The photo shows the top of the adapter NNCP from Multi Channel Systems MCS GmbH.
To insert the chronic probe from NeuroNexus Technologies C16 into the adapter you have
to turn the chronic probe upside down. It is only one way possible to plug in the probe.
Top view
Important:
Black side of MPA8I faced down !
Reference 10
CH 01
9 SITE 8
CH 02 8 SITE 7
CH 03 7 SITE 6
CH 04 6 SITE 5
CH 05 5 SITE 4
CH 06 4 SITE 3
CH 07 3 SITE 2
CH 08 2 SITE 1
Ground 1
The red arrow shows the direction of the
probe. Because of the guide posts it is just
possible to plug the male connector of the
adapter into the female connector of the
probe in one required position!
Omnetics connector A9279-001
(NSD-18-W-GS-w/2GP),
male, fixed on the adapter.
MPA8I No. 1 Pin NNCP16 MPA8I No. 2 Pin NNCP16
Guide post 11
CH 01 12 SITE 9
CH 02 13 SITE 10
CH 03 14 SITE 11
CH 04 15 SITE 12
CH 05 16 SITE 13
CH 06 17 SITE 14
CH 07 18 SITE 15
CH 08 19 SITE 16
Guide post 20
Reference
Ground
Guide post
Guide post
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
