Multichannel Systems ADPT-NNCP-16 User Manual
Mpa8i no.1 mpa8i no.2

ADPT-NNCP-16
16-Electrode Chronic Probe
Adapter for MPA8I Amplifiers
Connecting the MPA8I to the NeuroNexus Chronic Probe Adapter
Multi Channel Systems
MCS GmbH
Aspenhaustrasse 21
72770 Reutlingen
Germany
Fon +49-7121-9 09 25- 0
Fax +49-7121-9 09 25-11
[email protected]
www.multichannelsystems.com
© 2012 Multi Channel Systems MCS GmbH
Product information is subject to change
without notice.

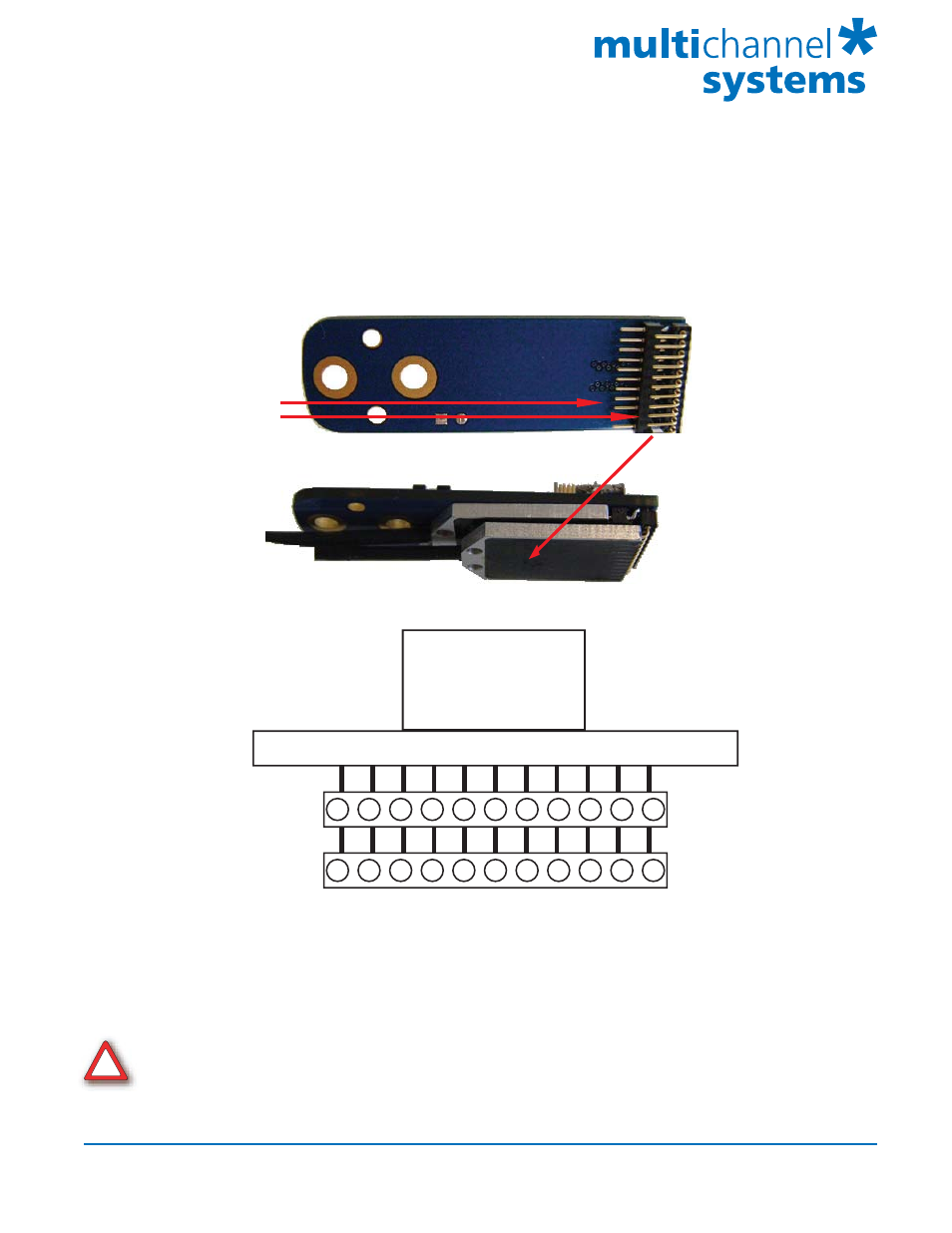

Shown are the output pins of the adapter that are connected to the miniature preamplifiers MPAI when
looking directly at the pins. The labeled channels are the ground channels (G), the reference channel (R),
and the 8 recording channels (1 to 8) of the MPA8I. Please see the MPA8I manual for details.
Warning: The device may only be used together with the MPA8I from Multi Channel
Systems MCS GmbH and the 16-channel chronic probe from NeuroNexus, and only for the
specified purpose. Damage of the device and even injuries can result from improper use.
!
8
7
6
5
4
3
2
1
R
G
G
8
7
6
5
4
3
2
1
R
G
G
16-Electrode Chronic Probe
from NeuroNexus
NNCP-Adapter
MPA8I No. 1
MPA8I No. 2
Side view
Connect
MPA8I No. 1 here
Connect
MPA8I No. 2 here
Important: Connect the
MPA8I with the black side
down. Otherwise the device
does not work.
Important: Connect the
MPA8I with the black side
down. Otherwise the device
does not work.
MPA8I No. 1
MPA8I No.2
MPA8I No.1
MPA8I No.2
