Multichannel Systems ADPT-NN-8 - Manual

ADPT-NN-8
8-Electrode NeuroNexus Probe
Adapter for MPA8I Amplifier
Connecting the MPA8I to the adapter ADPT-NN-8
Multi Channel Systems
MCS GmbH
Aspenhaustrasse 21
72770 Reutlingen
Germany Fon +49-7121-9 09 25- 0
Fax +49-7121-9 09 25-11
[email protected]
www.multichannelsystems.com
© 2012 Multi Channel Systems MCS GmbH
Product information is subject to change
without notice.
Warning: The device may only be used together with the MPA8I from Multi Channel Systems
MCS GmbH and the 8-channel probe from NeuroNexus, and only for the specified purpose.
Damage of the device and even fatal injuries can result from improper use.
!

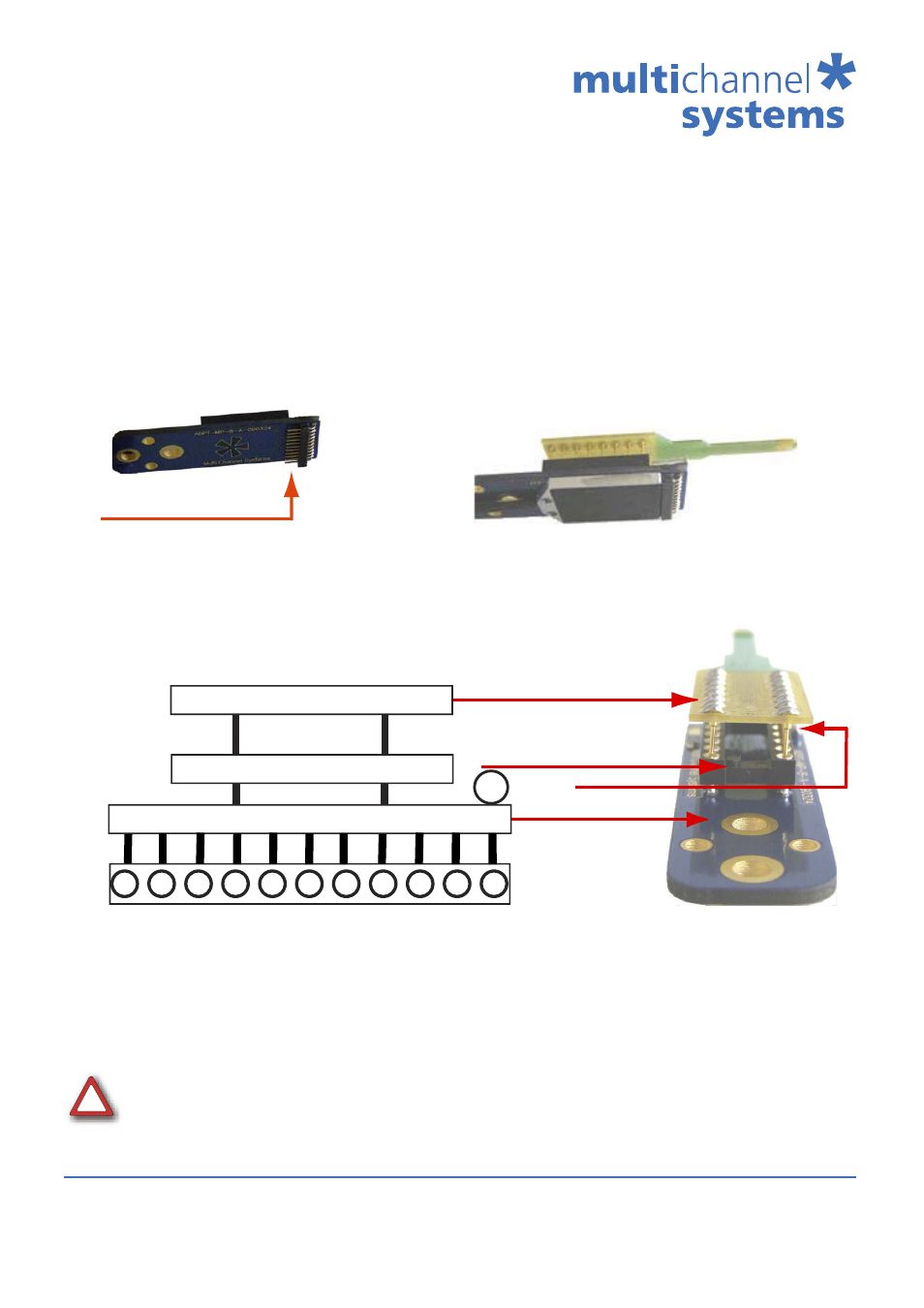

Connect MPA8I here
Important: Connect the MPA8I with the black side
down. Otherwise, the device does not work. Important: Connect the MPA8I with the black side
down. Otherwise, the device does not work.
Setup with probe from NeuroNexus,
adapter ADPT-NN-8 and MPA8I.
Adapter ADPT-NN-8
Shown are the output pins of the adapter ADPT-NN-8 that are connected to the miniature
preamplifiers MPA8I when looking from the back directly at the pins. The labeled channels
are the ground channels (G), the reference channel (R), and the 8 recording channels (1 to 8)
of the MPA8I. Please see the MPA8I manual for details.
Channel assignment, output pins (connected to MPA8I)
8 7 6 5 4 3 2 1 R G G
8-Electrode NN Probe
Adapter ADPT-NN-8
MPA8I
Ground
connector
8-Electrode NN Probe Connector
Back Side
