3 Hardware
The MEA-VMT is a solid table with a video microscope underneath. The image is captured by
a USB 3.0 camera and transferred to a computer via USB interface. Illumination is provided by
flexible LED lights, which are also connected to a hub together with the camera/s. There are
M6 screw holes around the edge of the table, which can be used to screw down additional
equipment, like a manipulator, for example. The USB Hub is also connected to the underside of
the table. For the MEA-VMT-2 with two cameras an USB 3.0 hub is provided. For the MEA-VMT-1
with one camera an USB 2.0 hub is provided. Power for the camera/s and LED light/s is provided
via the USB 3.0 / 2.0 port. It is recommended to use the appropriate power supply for the hub.
A ground connector is located at the backside of the table, which can be used to connect it
to the system ground of the MEA-System placed on the table.

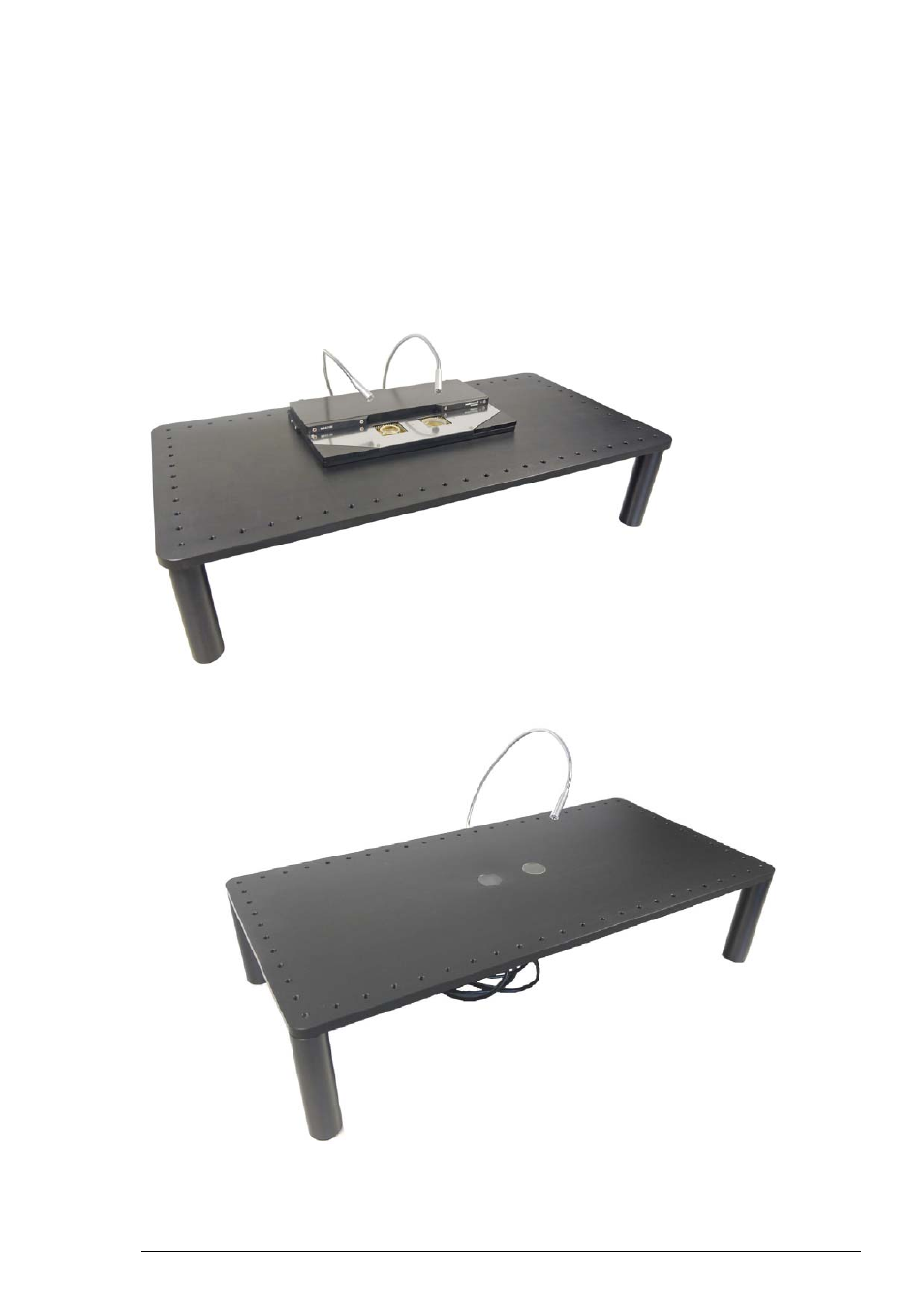

MEA-VMT-2
MEA-VMT-1
