Step 3

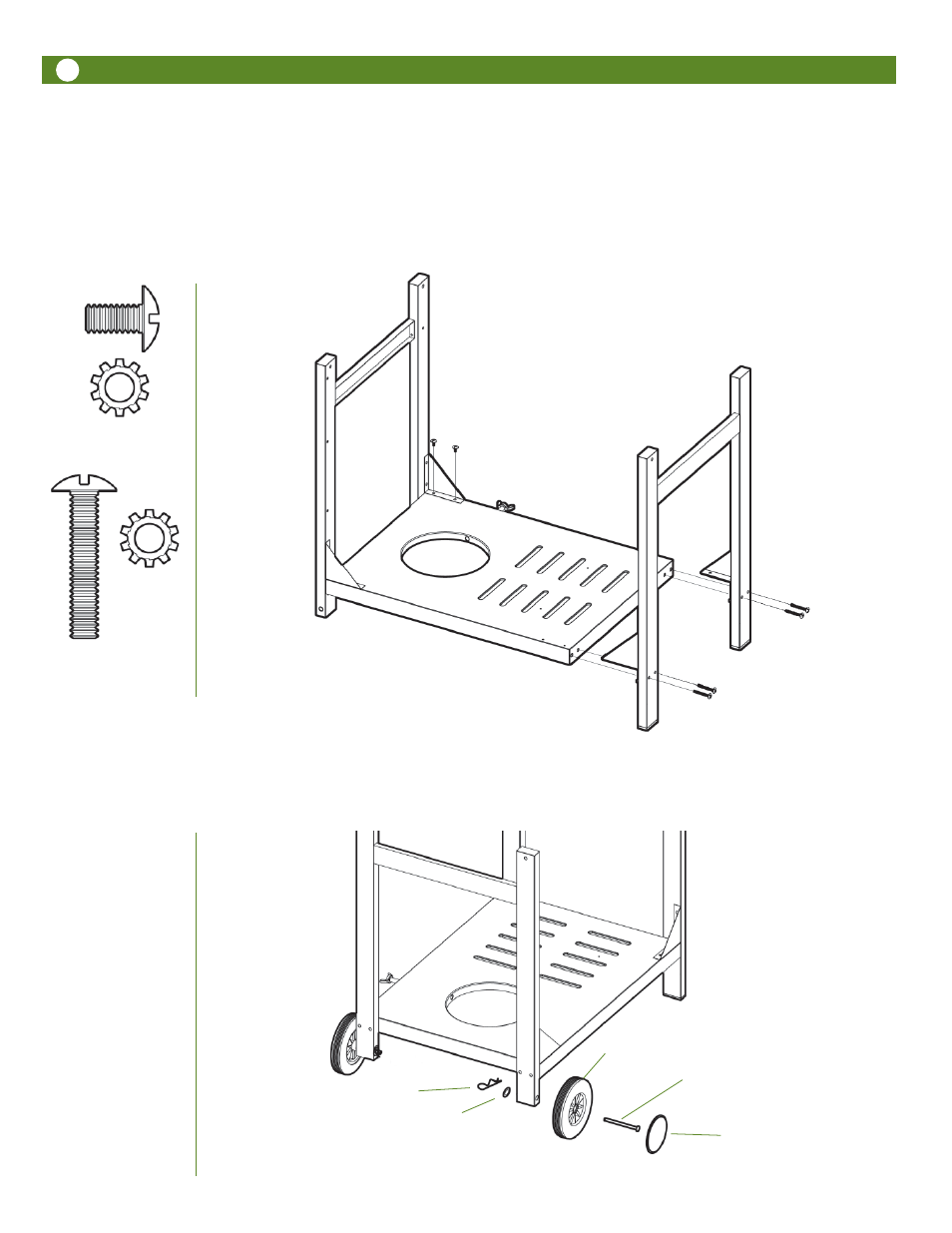

Cart Frame Assembly
Attach Left Leg Frame and Right Leg Frame to Cart Bottom Panel with eight 1/4-20 x .50” Bolts and eight 1/4-20 x
1.50” Bolts. Fit one Frame onto Bottom Panel at a time and insert the .50” bolts down through the corner brackets into
the Bottom Panel then insert the 1.50” bolts through the Legs into the sides of the Bottom Panel. Tighten all securely.
1/4-20 x .50” Bolt set
8 pc
1/4-20 x 1.50” Bolt set
8 pc
Step 4
Wheel Assembly
Attach the Wheel by first inserting the Axle through the Wheel then the Axle through the Leg. Place the Washer on the
end of the Axle extending out of the opposite side of the Leg. Secure all in place by inserting the Cotter pin through the
hole in the end of the Axle. Snap the Wheel Cover onto the Wheel.
Wheel Cover
Axle
Wheel
Cotter Pin
Washer
