A.2 Board Connectors and Jumpers
There are several connectors and jumpers on the UNO-2173A/AF board.
The following sections tell you how to configure the UNO-2173A/AF
hardware setting. Figure A-1 shows the locations of UNO-2173A/AF’s
connectors and jumpers.

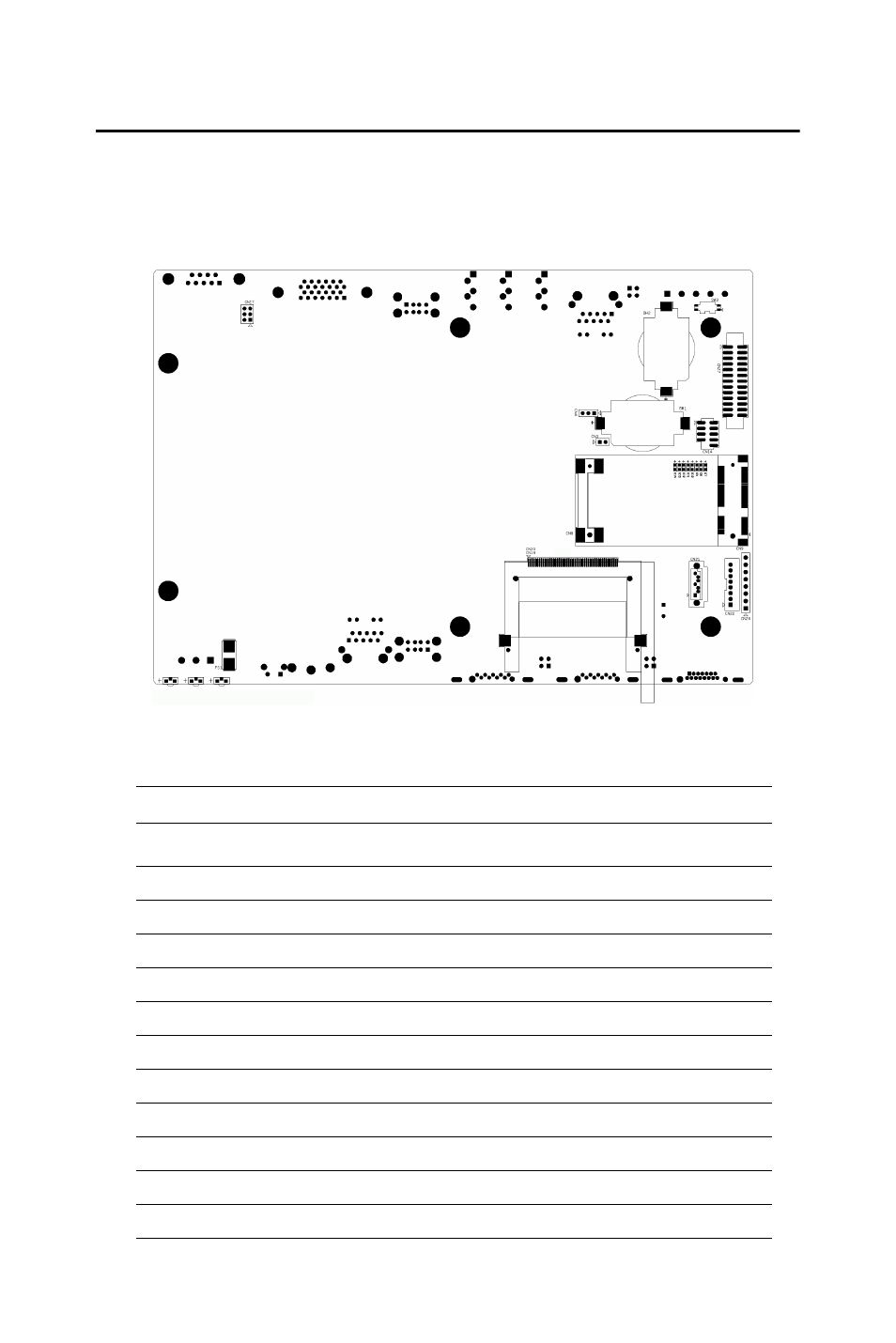

Figure A.1: Connector & Jumper Locations (front)
Table A.3: UNO-2173A/AF Connectors and Jumpers
Label Function
FS1 Fuse for input DC power
CN3 Clear CMOS
CN8 CN9 PCI Express mini Card Socket
CN14
USBx2 pin-head (reserved)
CN17 LVDS power setting
CN21 SATA signal connector
CN22 SATA power connector
CN27 Print port (reserved)
SW3 Switch for terminal resistor of COM3
BH1 Battery for RTC
BH2 Battery for SRAM (reserved)
