Mityvac MVA6836 MASTER AUTO-REFILL KIT - Manual (Page 3)

Page Number - 3 Form 823603
Instructions for Use of
Plate Style Auto-Refill Kit
Important: This unit is designed for
servicing a variety of vehicles in a
safe, convenient manner. However,
the varying shapes, sizes, designs and
locations of master cylinders prevent its
use on every vehicle and application.
Check the unique design and location
of your master cylinder prior to proceed-
ing with the following instructions.
1. Fill the 40 oz. (1200 ml) reservoir
with the vehicle manufacturer’s
recommended brake fluid, to a level
exceeding the amount of fluid to be
bled (Fig. 1), and install the lid. Or
remove the lid from a standard new
12 oz. or 32 oz. bottle of brake fluid
and thread on the appropriate sized
Adapter Cap.
2. Clean the exterior of the master
cylinder and master cylinder cap to
prevent dirt from entering the master
cylinder when the cap is removed.
3. Remove the cap from the master
cylinder and set the appropriate Seal
Plate on top of the master cylinder.
4. Secure the Seal Plate to the master
cylinder by placing the rubber bungee
cord(s) around the master cylinder as
shown in Figures 6 and 7.
5. Assemble the appropriate tubes and
adapaters for your application as
shown in Figures 6 & 7. Be sure to
select the appropriate length of pick-
up tube depending upon the depth of
the reservoir or bottle.

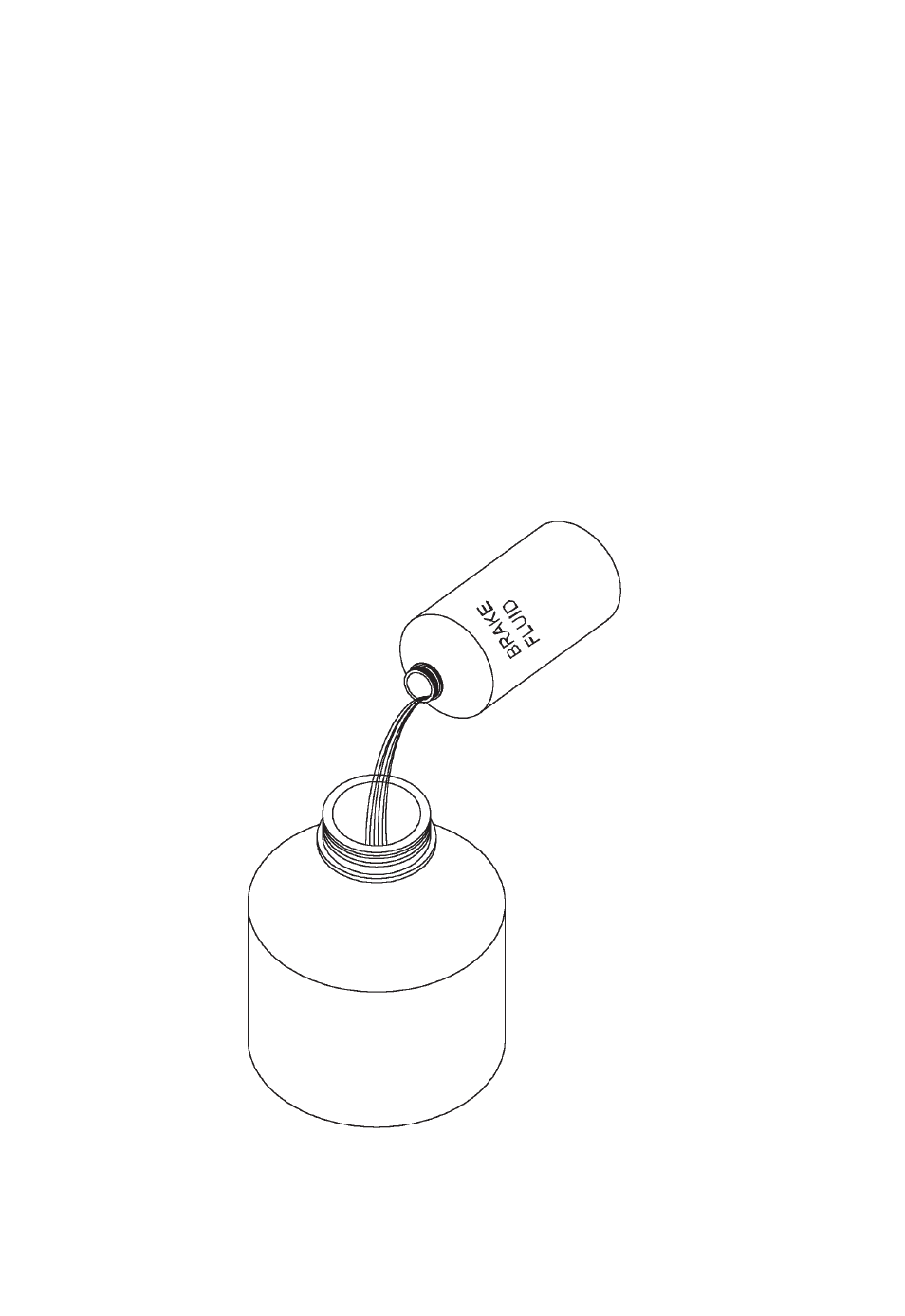

Figure 1
