Introduction
USB
S-VIDEO
VIDEO
Y
PB/CB
PR/CR
VGA IN
HDMI
1...............................................................................................................Power Cord
2................................................................................................................VGA Cable
3.......................................................................................... Composite Video Cable
4.....................................................................S-Video Cable (Optional Accessory)
5........................................................................... USB Cable (Optional Accessory)
6................................................. 3 RCA Component Cable (Optional Accessory)
7..............................................................................................................HDMI Cable

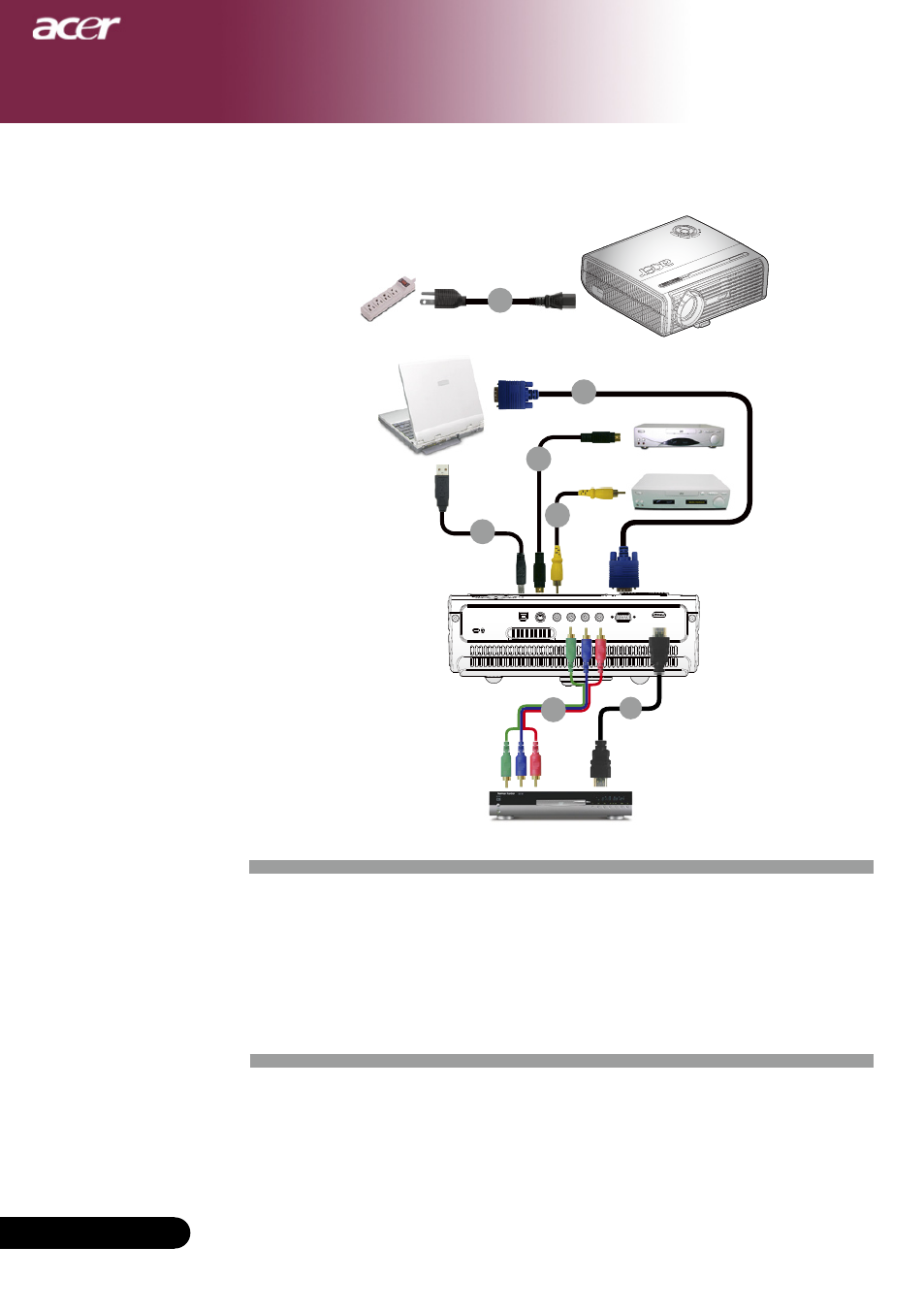

Connecting the Projector
To ensure the projector works well with your computer, please
make sure the timing of the display mode is compatible with the
projector. Refer to the “Compatibility Modes” section on page 35.
Video Output
DVD Player,
Settop Box,
HDTV receiver
5
2
3
4
7
S-Video Output
1
6
VGA
USB
