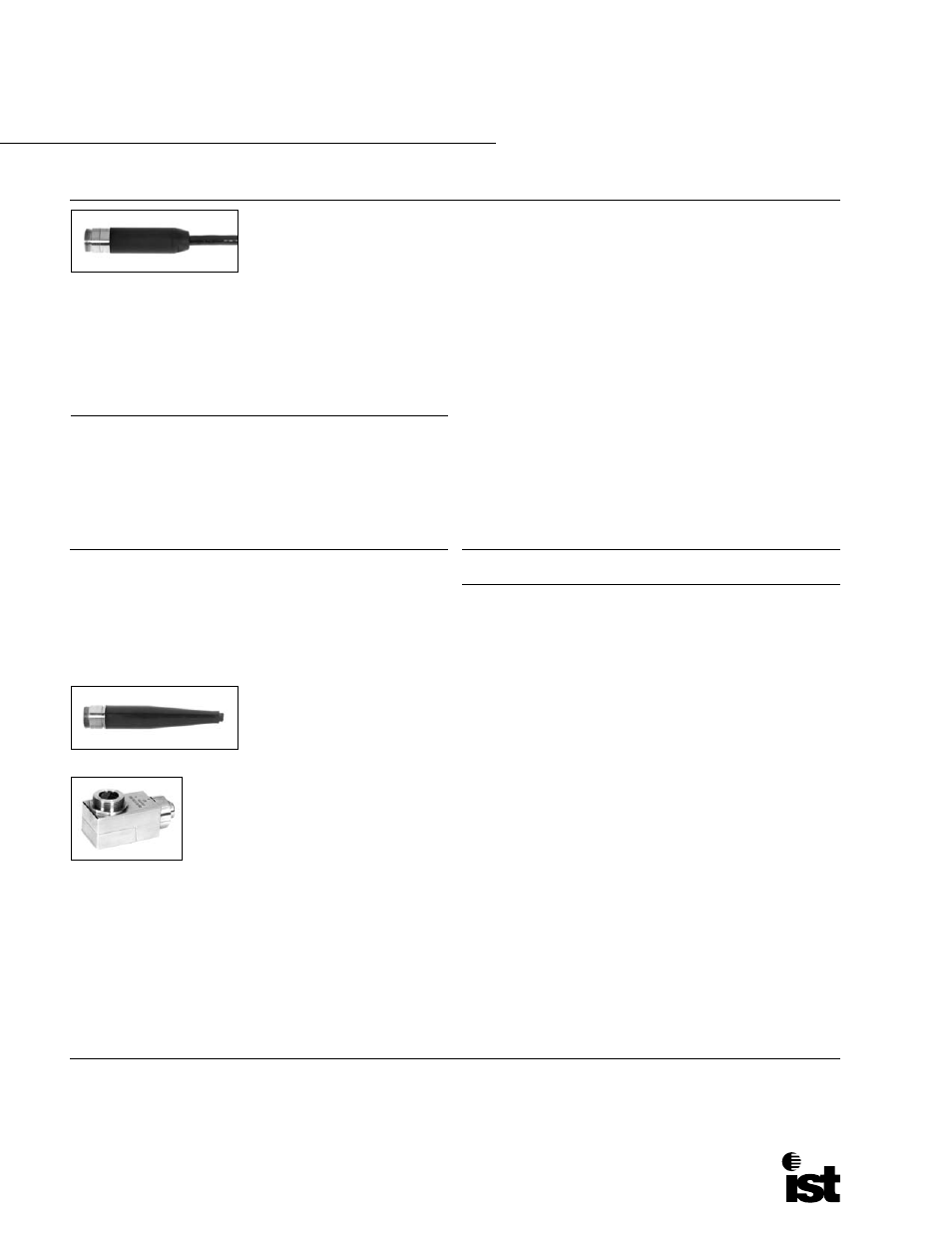

Rees 90 Series Connectors
Standard Site Reterminable Underwater Connectors
Depth rating ..............................................100 m (328’)
Minimum installation distance
from camera connector to cable
path perpendicular to cameras axis
with TV36: .................................................270mm (10.6”)
With Minikevlar: .......................................205mm (8.1”)
With Minicable: ........................................170mm (6.6”)
Voltage Rating: .........................................600 V dc
Current Rating: ..........................................5 A
Break Strength w/Minikevlar or TV36........Better than 75 kg (165lb)
IST underwater connectors are
constructed in stainless steel. All in-
terconnections are protected by seals.
Terminations are made using high
quality contacts. All of the R90 series
underwater connectors share the
same, basic mechanical design with
size and inserts dependent upon the
camera cable and/or camera selected.
Camera
Cable
Diameter Length
Connector
Insert Contacts
Center
(mm)
(mm)
R930CNR04A 24 pin Solder Minikevlar
30
117
R930CNR06A 24 pin Solder
TV36
33
117
R930CNR08A 24 pin Solder Minicable
30
117
Special Underwater Molded Connectors
A range of moulded connectors are available to special order. Molded
connectors cannot be reterminated, but they can operate to a depths in
excess of 200 m (656’”). The minimum installation distance from the back
of the camera (with cable leaving at right angles) is 230mm (9”) with
TV36, 210mm (8.3”) with Minikevlar, and 180mm (7.8”) with Minicable.
Break strength with minikevlar or TV36 is 75 kg (165 lb).
Rees Underwater Moulded Connector
Rees 90° Stainless Steel Connector
Use of the 90° connector reduces the
total bend radius from the back of the
camera to the cable perpendicular to
75mm (3”) for all cable types.
Camera/CCU Mating Connectors
Camera
CCU
Cable Type R93
Mk 2/Mk 3
Mk 3
Plug End
(20 way)
(24 way)
(48 way)
Minicable R930CNR08A R930CNR12A R930CNR09A R937CNR07A
Minikevlar R930CNR04A R930CNR10A R930CNR05A R937CNR07A
TV36
R930CNR06A R930CNR11A R930CNR07A R937CNR07A
