Adjusting the Projected Image
Adjusting the Height of Projected Image
The projector is equipped with an elevator foot for adjusting the image height.
To raise the image:
1 Press the elevator button.
2 Raise the image to the desired height angle, then release the button
to lock the elevator foot into position.
3 Use Tilt adjusting wheel to fine-tune the display angle.
To lower the image:
1 Press the elevator button.
2 Lower the image to the desired height angle, then release the button
to lock the elevator foot into position.
3 Use Tilt adjusting wheel to fine-tune the display angle.
1
2
3

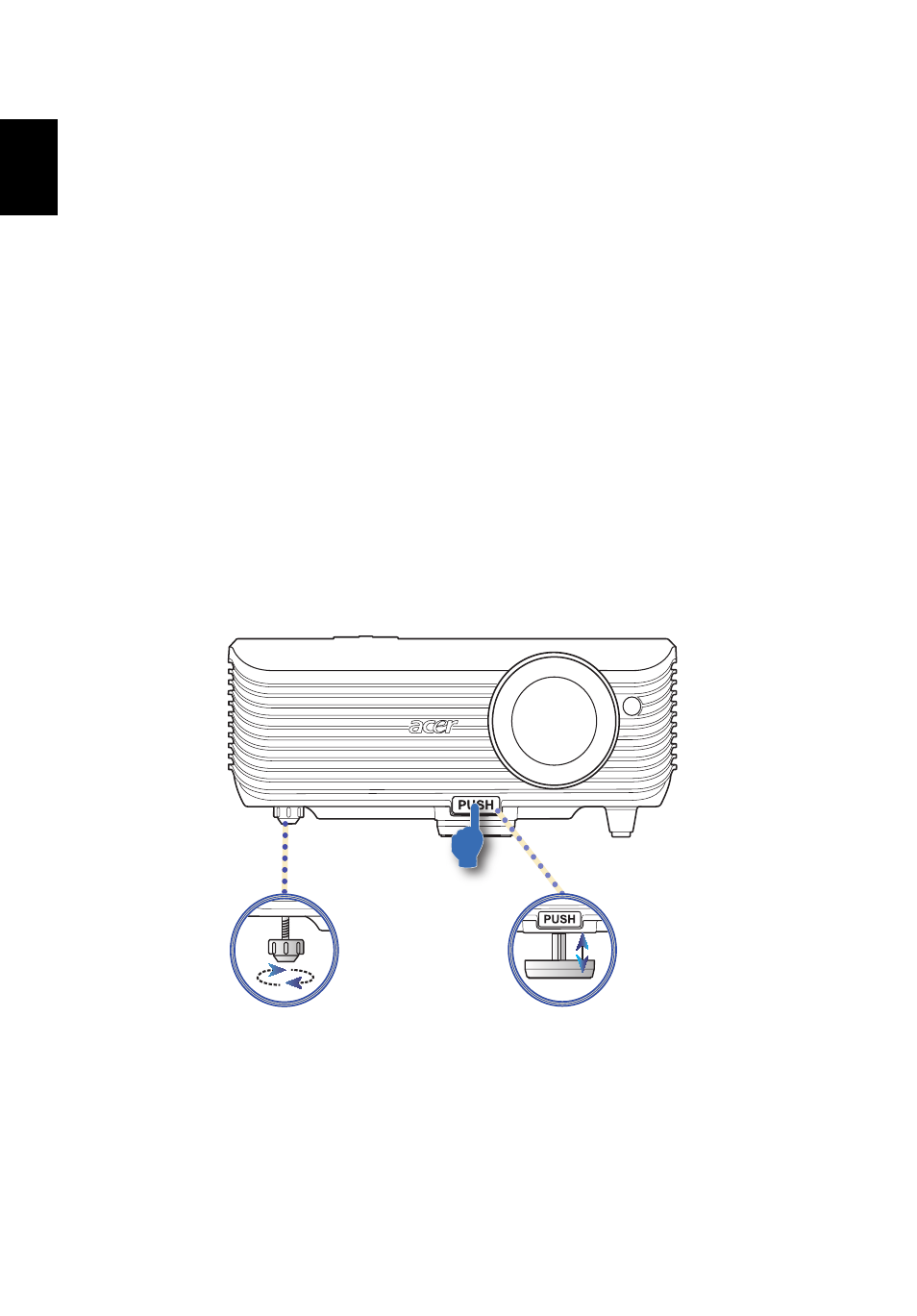

Tilt adjusting wheel Elevator foot
Elevator
button
