Getting Started

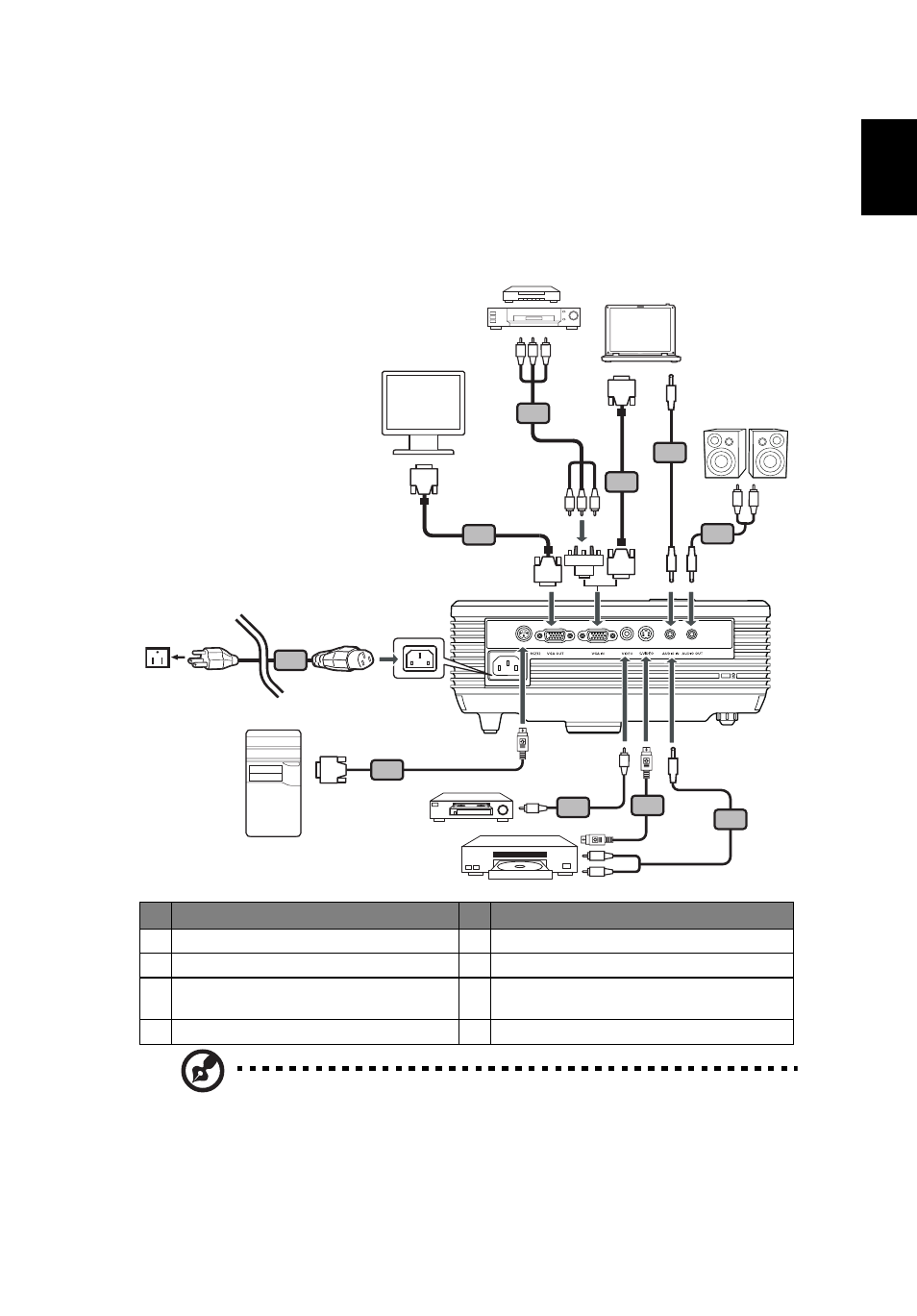

Connecting the Projector
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
# Description # Description
1 Power cord 5 Audio cable
2 VGA cable 6 S-Video cable
3 VGA to component video/HDTV
adapter
7 RS232 cable
4 Composite video cable
R B G
Y
Y
HDTV adapter
R
W
R W
RS232
D-Sub
D-Sub
D-Sub
D-Sub
3
2
5
5
5
7
2
4 6
1
DVD player,
Set-top box,
HDTV receiver
VGA
RS232
S-Video Output
Speakers
Video Output
Display
