Maintenance and Care
5.8.3 Adjusting the Sealing Strips
Angle Adjustment
The angle adjustment is the decisive
factor in ensuring that the sealing strips
on the squeegee lie evenly on the floor.
1. Park the machine on a level surface
and lower the squeegee.
2. Loosen the srews on the eccentric
wheel (Fig. 11/1) and adjust the
squeegee using the eccentric wheel
(SW13) so that the ends of the
sealing strips still have contact with
the floor.

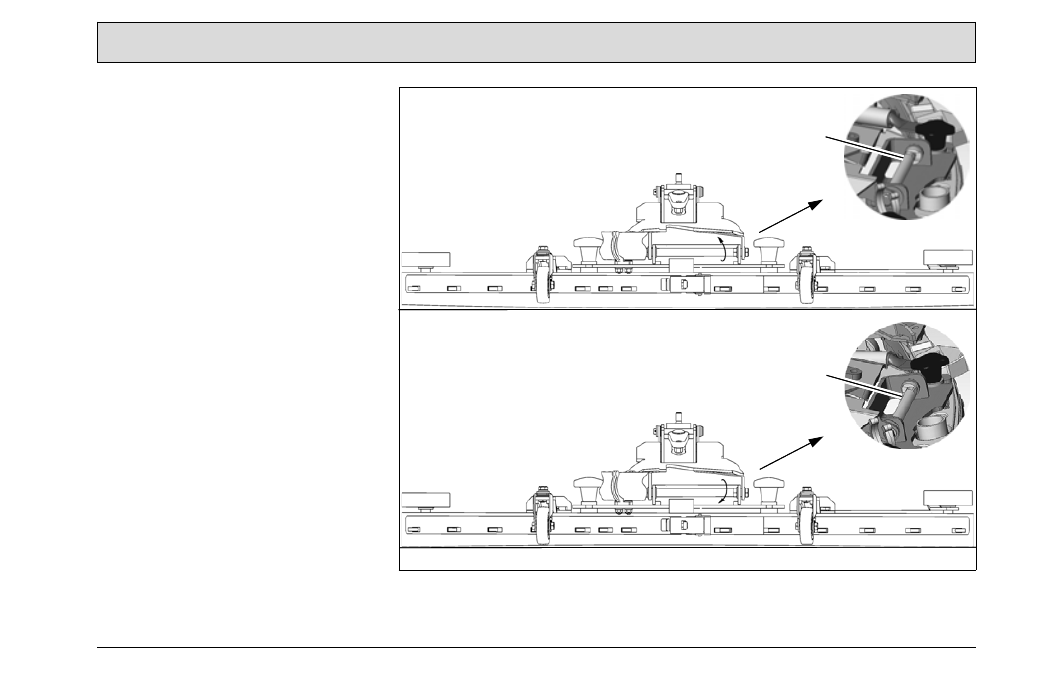

Figure A: Turn the eccentric wheel in
the front top position: The clearance
between sealing strip and floor is re-
duced in the centre.
Figure B: Turn the eccentric wheel in
the behind top position: The clearan-
ce between sealing strip and floor is
increased in the centre.
3. Switch the machine on and check
the suction pattern. When the machi-
ne is in operation, the entire surface
of the sealing strips (centre and ou-
ter areas) must be applied as evenly
as possible.
4. Tighten the srews on the eccentric
wheel at 5 lb ft. Fig.11
B
A
1
1
