Machine Overview

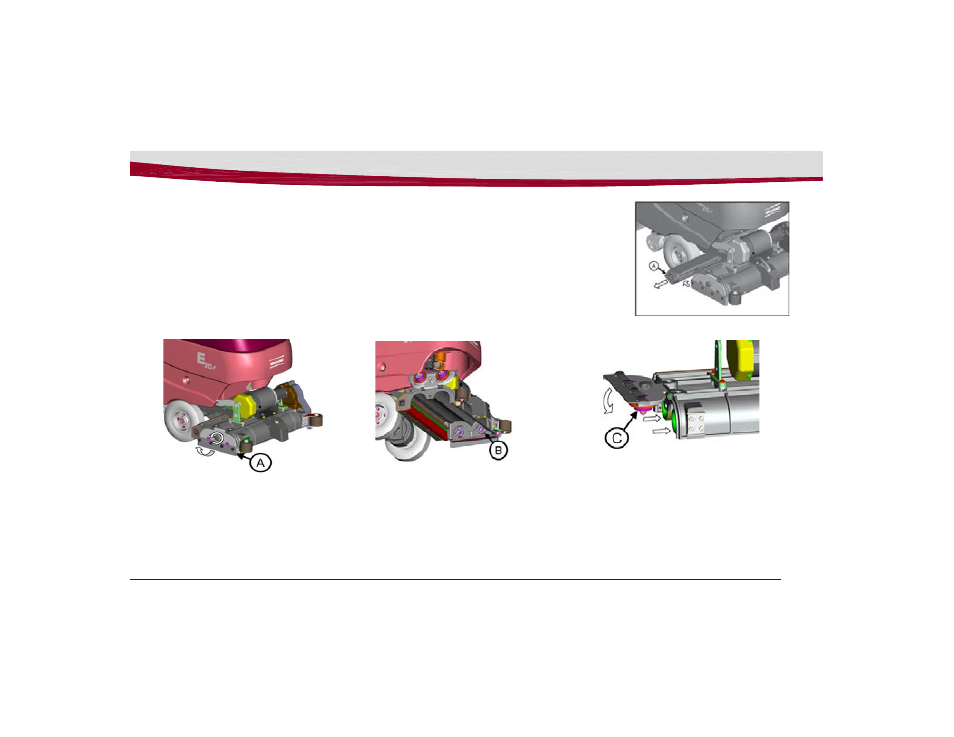

1. Raise brush deck. Unscrew the
knob on the right side of the deck
as shown above. Pull open the
Hinged Cover (A).
2. The drive side of each brush has a
black end-cap with teeth. Insert the
drive side of the brush through the
opening until engaged on to the
Drive Hub (B).
3. Insert Idle Hubs (C) into the
brushes while closing the hinged
cover. Tighten the knob on the
cover by hand, ensuring that the
hinged idle cover is flush to the
deck.
Brush Loading / Unloading
Brush Deck Maintenance
Debris Tray Maintenance
The Debris Tray (A) collects debris from the floor during operation. It must be cleaned
regularly. Remove the tray from the deck by tilting the bottom up, then sliding it out to the
side. Empty the tray and rinse it. Return the tray by sliding the top edge into the channel
along the top-rear corner of the deck. The tray will fall into place when fully inserted.
