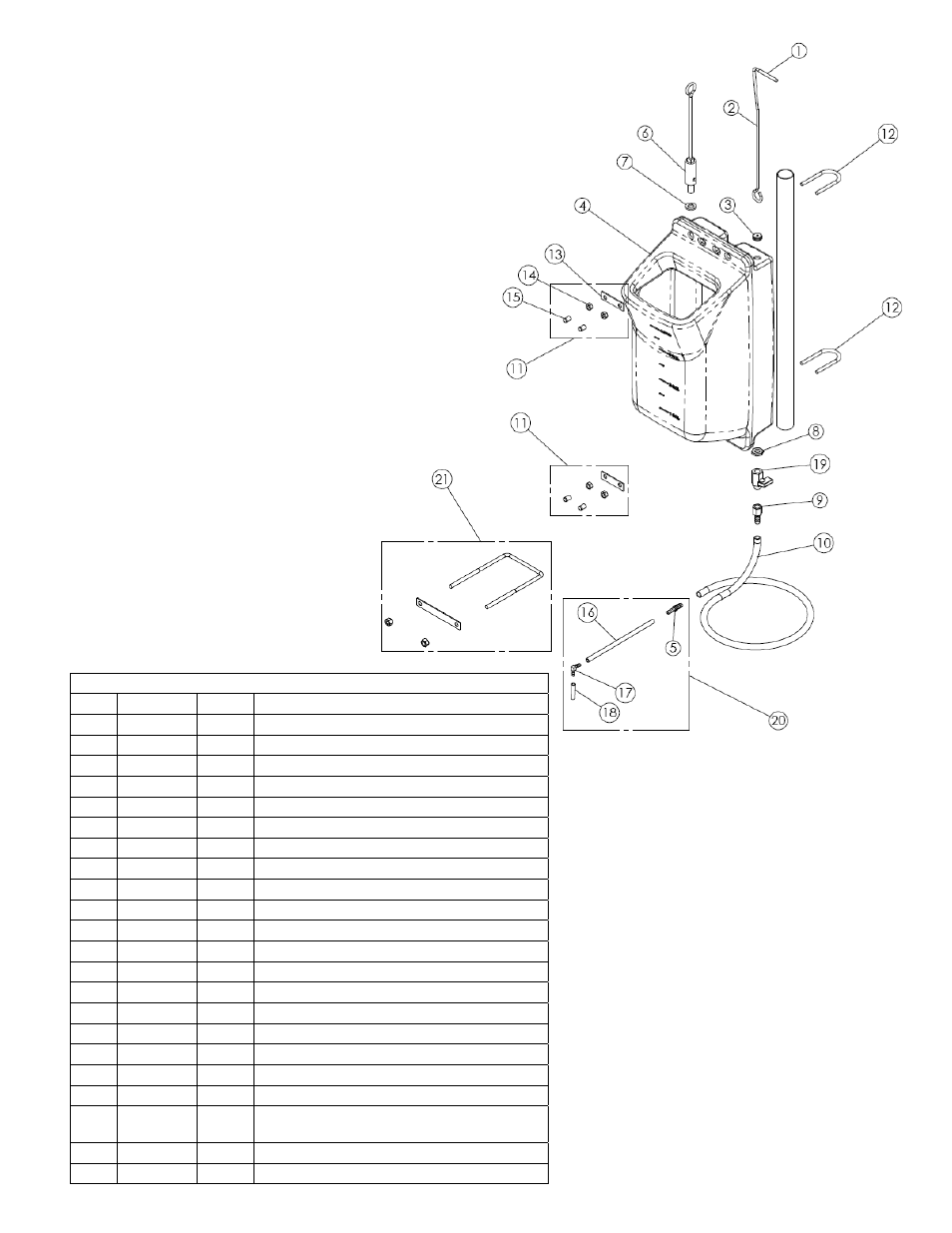

SOLUTION TANK ASSEMBLY









BILL OF MATERIAL - 190400

ITEM PART

NO. REQ'D DESCRIPTION

1 190401 1 HANDLE

GRIP

2

190402

1

LONG HANDLE, VALVE

3 190403 1 GROMMET,

SEAL

4 190404 1 TANK,

SOLUTION

5 190422 1 ADAPTER,

HOSEBARB

6

190405

1

VALVE, MAIN SOLUTION COMPLETE

7

190406

1

WASHER, VALVE SEAL

8

190407

1

HEX NUT, VALVE

9

833473

1

HOSEBARB, 1/4 NPT X 3/8H

10

430118

1

HOSE, 3.8" X 24" CLEAR

11

190408

2

U-BOLT KIT (INCLUDES ITEMS 12-15)

12 190427 2 U-BOLT
13 190428 2 PLATE,

RETAINER

14

190429

4

HEX NUT, 5/16"-18UNC

15

190417

4

CAP, 10 X 14MM

16

190423

1

HOSE, 6MM X 203MM CLEAR

17

190421

1

FITTING, HOSE BARB 90 DEGREES

18

190420

1

HOES, 6MM X 38MM CLEAR

19 190430 1 VALVE,

FLOW

CONTROL

20 190424 1

SHAMPOO FEED KIT (INCLUDES
INSTRUCTION SHEET)

21

190418

1

SQUARE U-BOLT KIT (OPTIONAL - SET OF 2)

22 988350 1 INSTRUCTION

SHEET
