Exploded views – Minuteman X839 Asbestos Series 15 & 20 Gallon User Manual
Page 9
Parts and Instruction Manual
Page 6
1.
801085 Lid Assembly Complete 85
801105 Lid Assembly Complete 105
801130 Lid Assembly Complete 130
801086 230V
801106 230V
801131 230V
2.
805058 Cloth Bag Complete
3.
805038PKG Disposable Paper Filter Protector (12)
4.
390023-01 Tank Assembly Complete 15 Gallon
390026 Tank Assembly Complete 20 Gallon
5.
760598PKG Disposable Paper Bag (10)

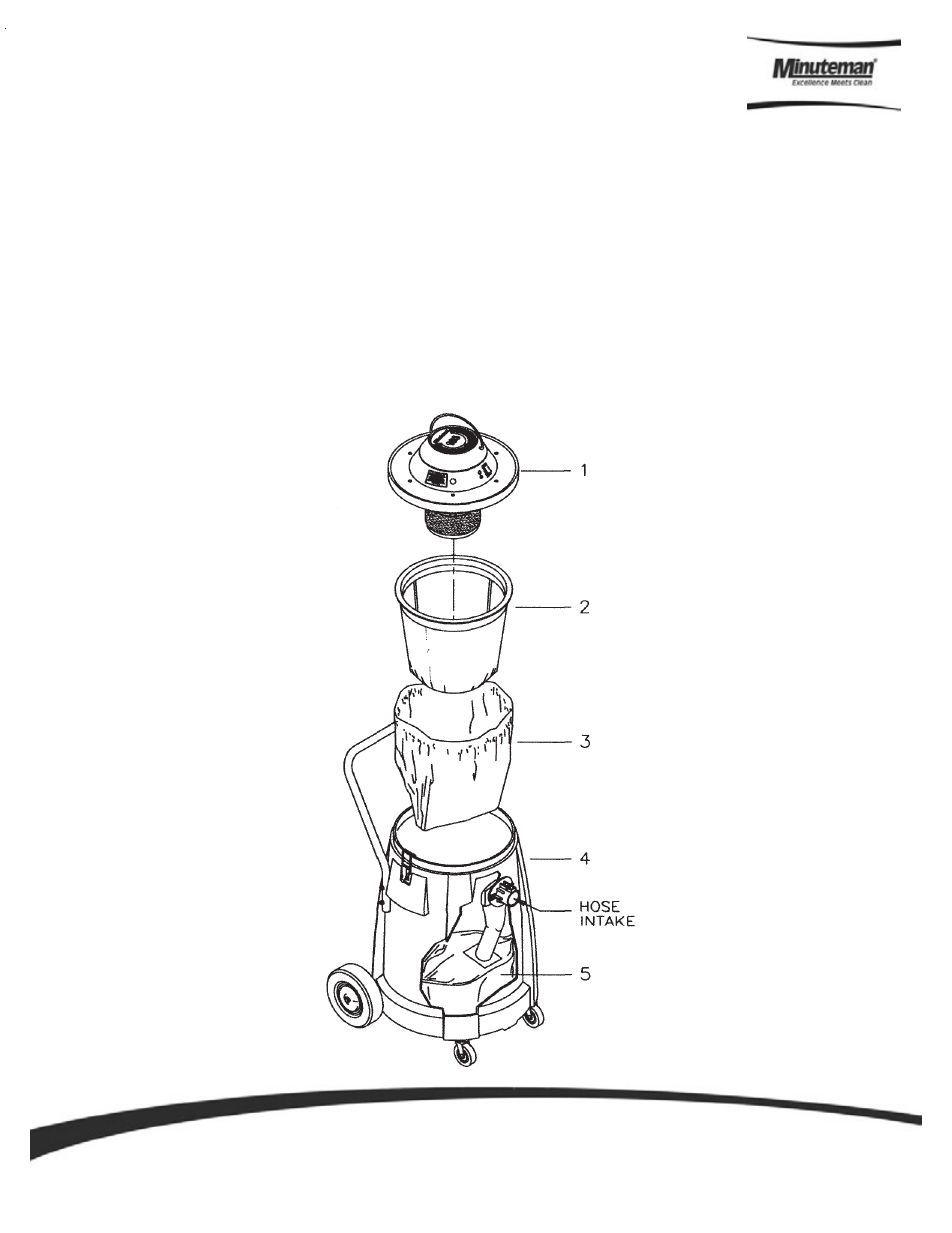

Exploded Views
Main Assembly
