Parts and Instruction Manual

Page 9

Item Part No.

Qty. Description

1

390087

1

Gasket Diecut VNN

2

390110

1

Intake Assy. Aluminum

3

460110

1

Tank 6 Gal. High Intake

3A

460111

1

Tank 4 Gal. Low Intake

3B

460112

1

Tank 4 Gal. High Intake

4

460114

2

Latch Poly Tank

5

460115

1

Dolly, Plast Vac Tnk Blk

6

460118

4

Caster

7

710530

1

SCR-MC 8-32x.50 BRS

8

711160

4

SCR HI/LO #10 x 5/8 Zinc

9

711372

1

Nut-NYLOC 8-32

Item Part No.

Qty. Description

10

712320

2

WSR .20x.45x.048 NYL

11

712638

2

Hex Nut 10/24 SS Nyloc

12

712764

1

Washer #10 SS

13

712824

2

SCR-MC 10-224x.75 Truss HD ST

14

715383

1

Decal - MMN 1x6.88 Lt Gry

15

750118

1

Intake Assy. Tube 4/6 Gal

16

828893

4

Rivet

17

900035

1

Deflector, Intake

***

294000

1

Tank Assy 4 GIM Hi DF&WB

***

294005

1

Tank Assy 4 GIM Li IT&WB

***

296000

1

Tank Assy 6 GIM Hi DF&WB

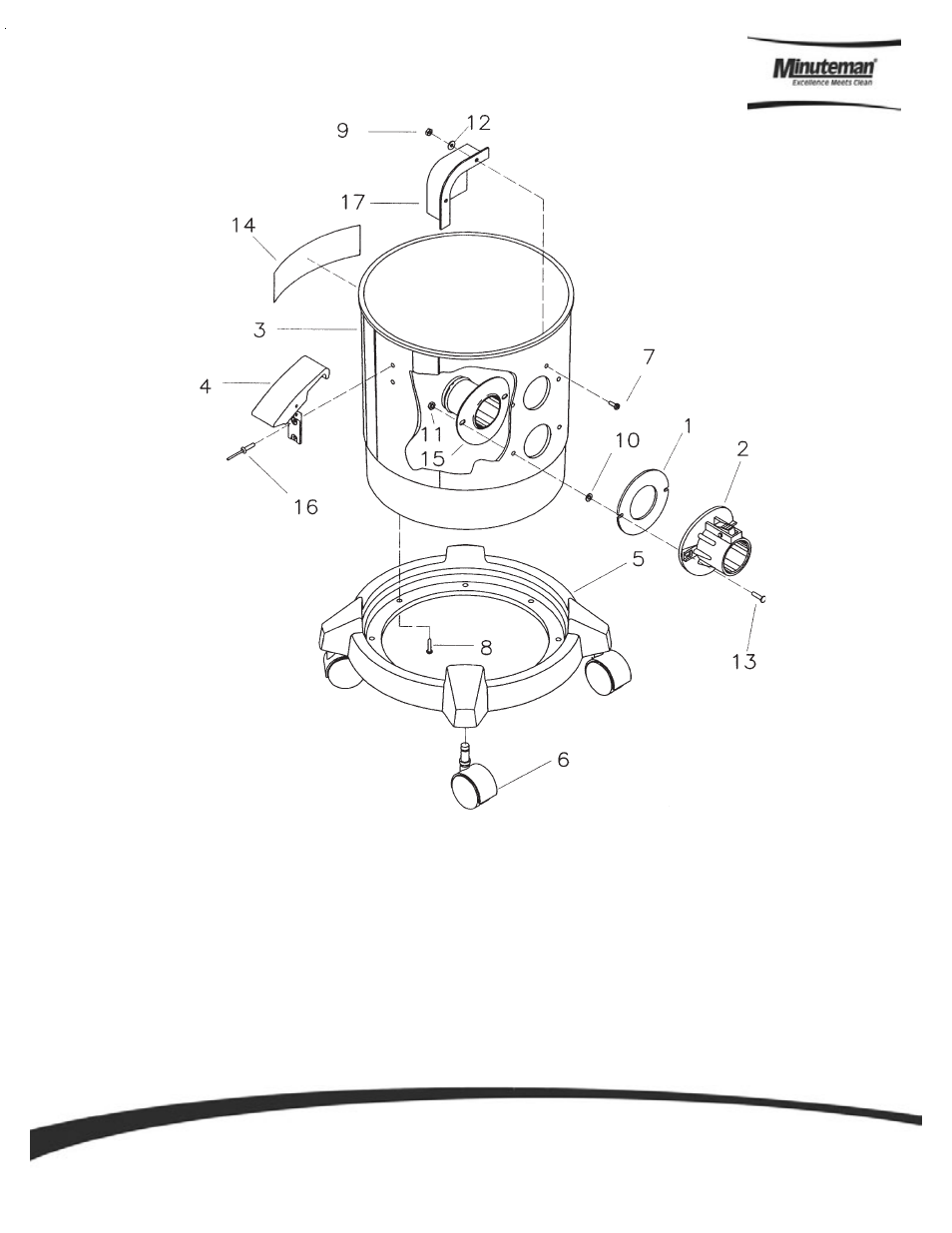

Tank Assembly
