Parts and Instruction Manual

Page 17

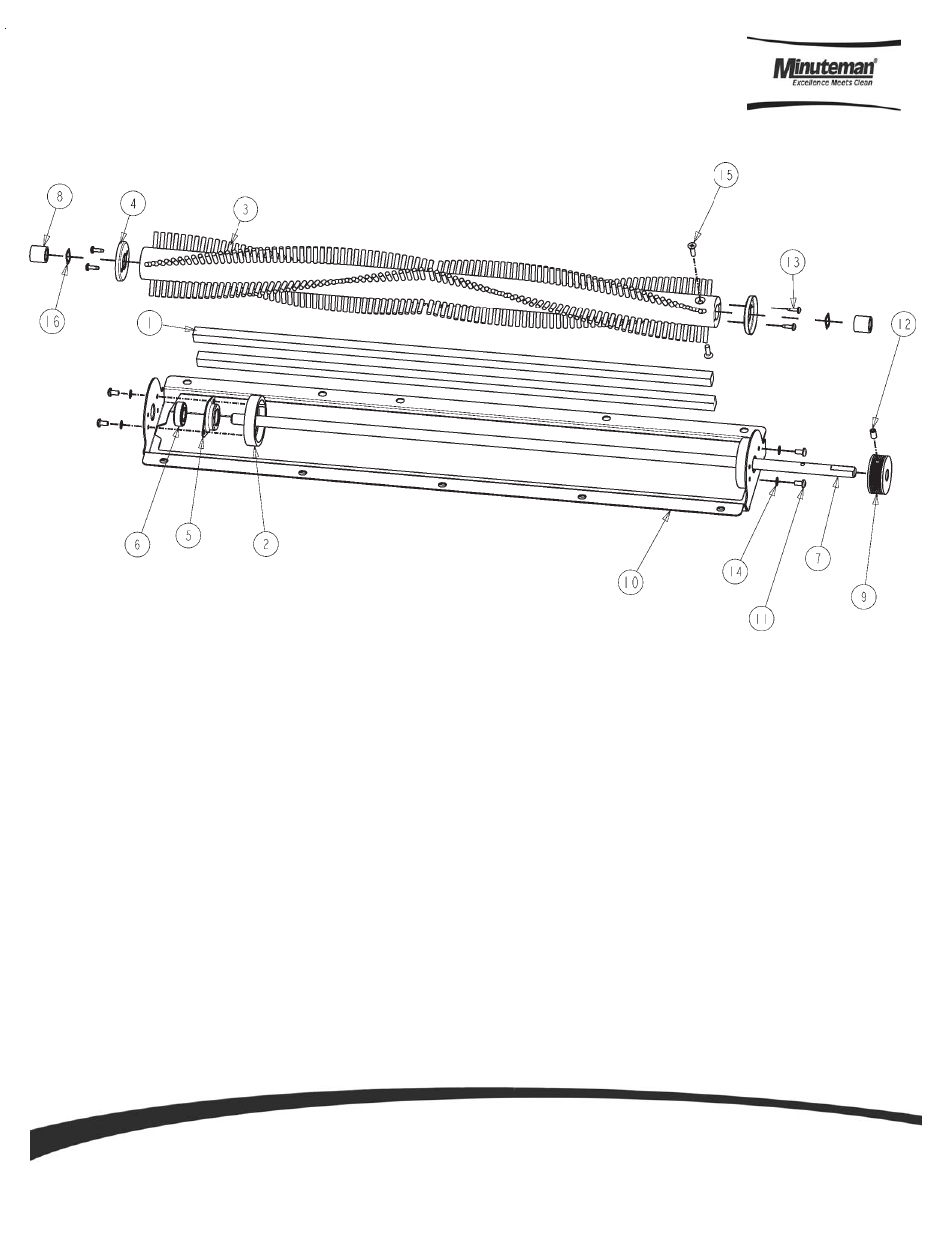

Brush Assembly

BILL OF MATERIAL - 270101

ITEM

PART NO.

REQ’D DESCRIPTION

1

150209

2

FOAM TAPE 25"

2

270102

2

BEARING SUPPORT RING - MAIN BROOM

3

270103

1

BROOM - MAIN

4

270104

2

DUST CAP - MAIN BROOM BEARING

5

270105

2

BEARING RETAINER RING

6

270106

2

RADIAL BALL BEARING

7

270107

1

MAIN BROOM SHAFT

8

270108

2

BUSHING - MAIN BROOM SPACER

9

270109

1

BRUSH PULLEY

10

270110

1

BRUSH SHOE

11

710353

4

SCR-MC RD HD 10-32 X .37 STL

12

711016

1

SCR-SK 1/4-20 X .50 - CUP PT. SET SCR

13

711181

4

SCR-ST-B HI-LO #8 X .50 PL

14

711534

4

WSR-EXTERNAL LOCK #10

15

712826

2

SCR-FHMS 10-32 X .625

16

827903

2

WASHER
