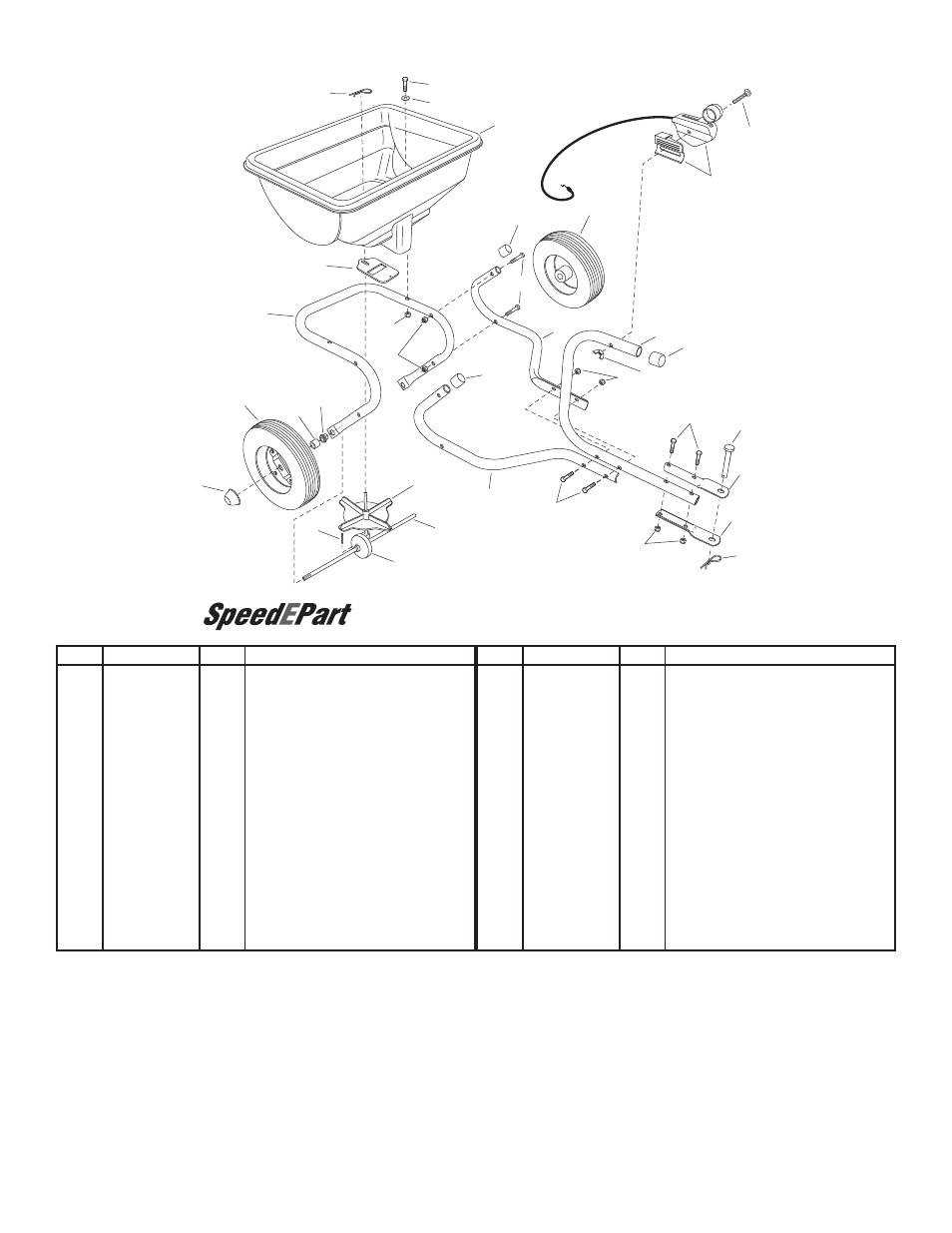

REPAIR PARTS FOR MODEL 45-03153-131, 45-03153-085, 45-03153-997
1
27
6
2
4
3
5
12
15
14
16
18
19
26
20
21
22
22
25
27
23
8
9
8
24
7
8
7
8
13
10
11
25
25
17
REF PART NO QTY DESCRIPTION
1 47994BLK 1 Hopper
2 49085 1 Frame Tube
3 49087 1 Hitch Tube (LH)
4 49088 1 Hitch Tube (RH)
5 49091 1 Hitch Control Tube
6 43648 2 Hex Bolt, 1/4-20 x 1-1/2"
7 1509-69 4 Hex Bolt, 1/4-20 x 1-3/4"
8 47189 10 Nylock Nut, 1/4-20
9 43088 2 Washer, 1/4 Std
10 45165 1 Carriage Bolt 1/4-20 x 2"
11 47141 1 Nylon Wing Nut 1/4-20
12 47983 1 Flow Slide
13 49820 1 Control Cable Asembly
(includes items 10 & 11)
14 46503 1 Wheel
REF PART NO QTY DESCRIPTION
15 48865 1 Drive Wheel
16 44663 2 Hub Cap (Push Nut)
17 40903 1 Axle
18 47851 2 Spacer
19 40904 1 Gearbox
20 47124 1 Impeller
21 47963 2 Hex Flange Bearing
22 24446 2 Hitch Bracket
23 47623 1 Hitch Pin
24 46699 4 Hex Bolt, 1/4-20 x 2"
25 44481 3 Vinyl Cap
26 43501 1 Cotter Pin, 9/64 x 1-1/2"
27 43343 2 Hairpin, Cotter
41001 1 Owners Manual
