A

TECHNOLOGY

tlantic

Models 222 PBM, 262 PBM and 352 PBM THX

9

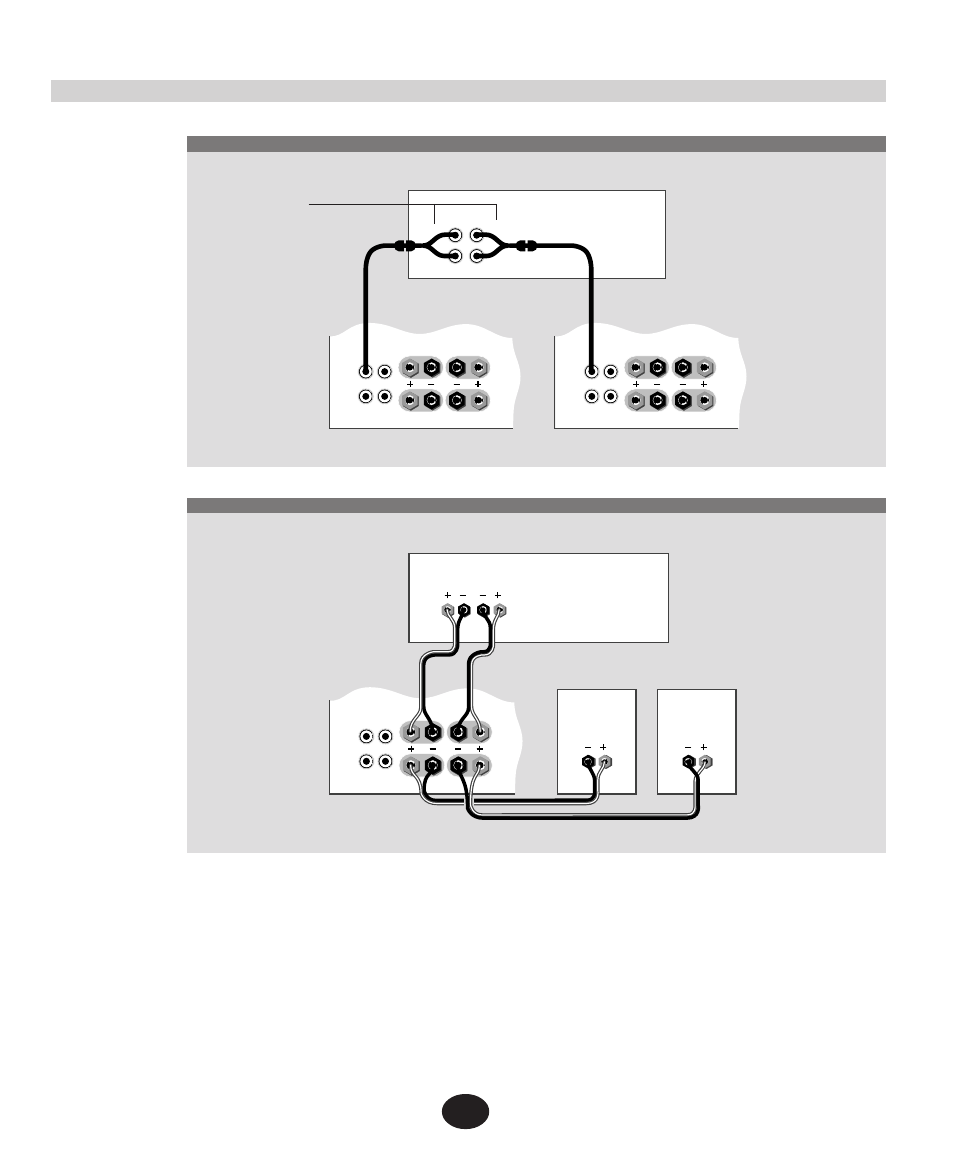

Example 3:
Preamp Line
Out/Low Level In
for 2 Subwoofers

Note that the
L/MONO input is
used on both left
and right sub-
woofers. Instead of
Y-adapters, you
may also use the
THRU outputs to
connect back to
the Main Inputs as
shown in Option 2
of Example 2.

L/MONO

HI LEVEL INPUT

LOW LEVEL INPUT

R

L/MONO R

IN

THRU

IN

THRU

L/MONO

HI LEVEL INPUT

LOW LEVEL INPUT

R

L/MONO R

IN

THRU

IN

THRU

Pre Out

Main In

L

R

Left Sub Woofer

Right Sub Woofer

Receiver/Amplifier

Example 4:
Speaker Out/
High Level In for
1 Subwoofer

This is the most
common method
for connecting a
subwoofer to a
system without a
dedicated sub-
woofer line out or
Preamp outputs.

L/MONO

HI LEVEL INPUT

LOW LEVEL INPUT

R

Left

Right

L/MONO R

IN

THRU

IN

THRU

Main Speakers

Sub Woofer

Left Front Speaker Right Front Speaker

Receiver/Amplifier

Y-adapters
