Temperature Limits
The electronic circuit of the 284 uses components which are intended to operate within the
range of -15
°
to +65
°
C (5
°
to 145
°
F). They will probably operate satisfactorily for brief
periods from -50
°
to +85
°
C, although this is not recommended.
The 284 is thermally connected to the flow meter body. For this reason, the temperature of
the 284 will be a function of ambient temperature and the flow meter temperature. The limit

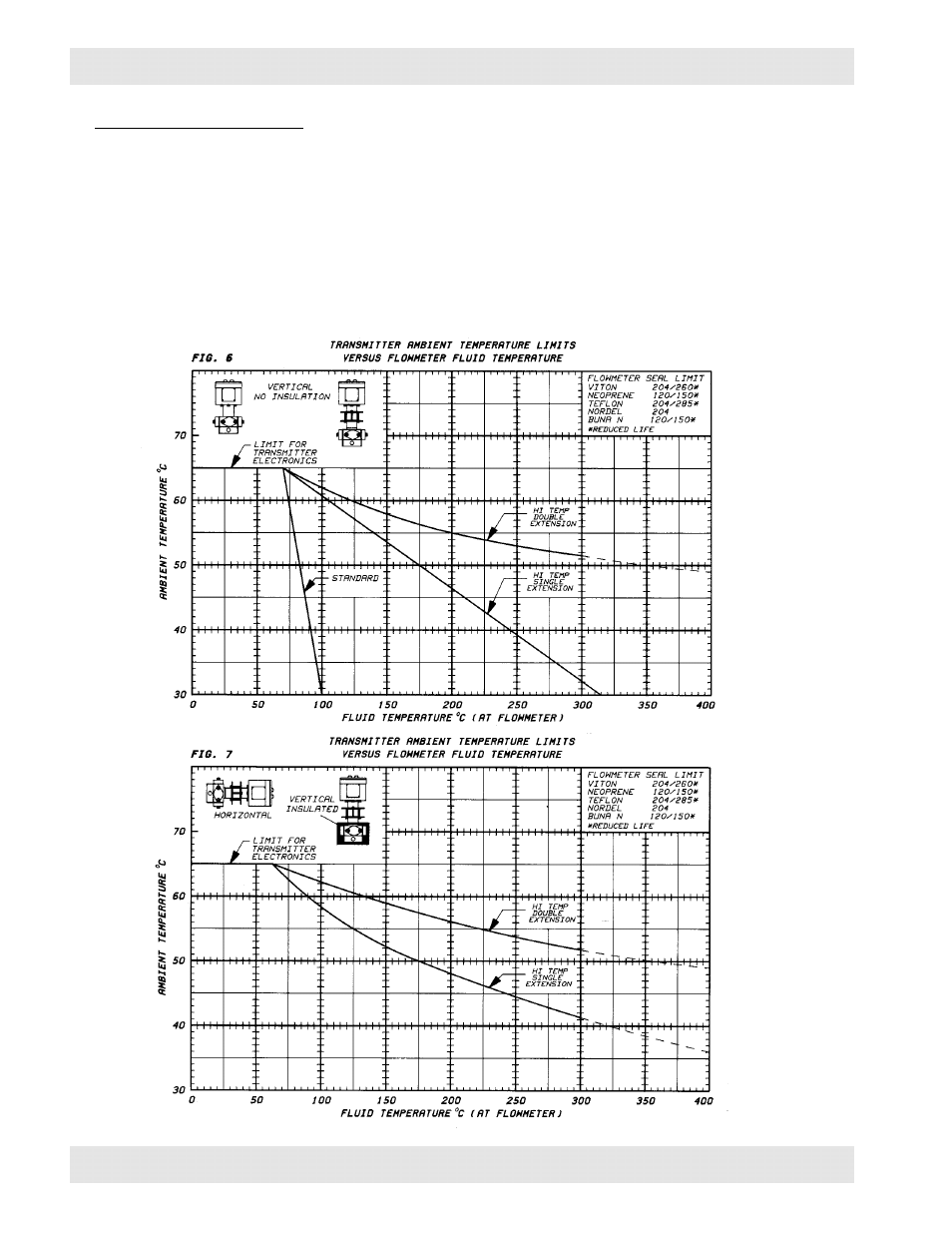

of these two temperatures is interrelated, which is shown in Figures 6 and 7. Figure 6 is for
the 284 in a vertical position; Figure 7 is for the 284 in a horizontal position.
