Mastercool 90060 1.5 CFM VACUUM PUMP (TWO STAGE) - Manual (Page 4)

4 www.mastercool.com
REF# DESCRIPTION PART# REF# DESCRIPTION PART#
1. Motor 110/220V 50/60Hz 1/6 HP 90060-001 11. Shaft Seal 90060-06
2. Shaft Coupler Assembly 90060-02 12. Smaller O-Ring on Housing 90052-23
3. ON/OFF Switch ( I / 0 ) 98300-006 13. Cartridge Kit 42 LIT/MIN 90160-R
4.
Capacitor (1 pc.)
2 required for each pump
90050-003 14. Oil Fill Plug w/O-Ring 90052-30
5. Intake Tee 90052-31 15. Pump Cover 90060-12
6. Gas Ballast Fitting w/O-Ring 90052-29 16. Sight Glass Assembly 90060-14
7. Pump Handle w/Grip and Plug 90060-40 17. Drain Valve 90052-28
8. Pump Housing 90060-11 18. Cover Cap Screw (1 pc.) 90052-33
9. Pump Cover O-Ring 90060-13 19. Thermister 90050-002
10. Suction O-Ring 90060-22

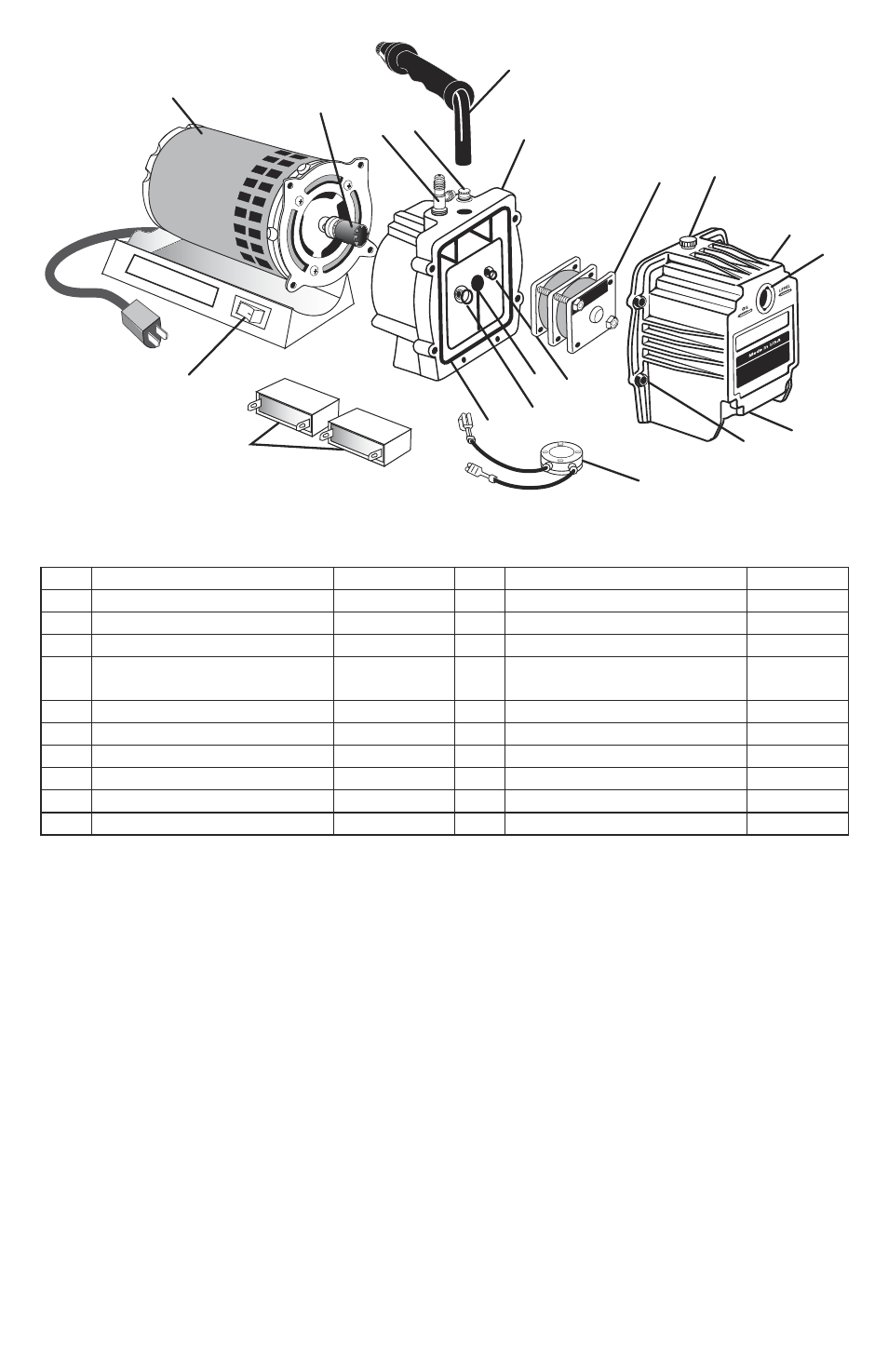

PARTS LIST
(TO SPECIFY 220V MOTORS, ADD -220 TO PART#)
�
1
2
3
4
5 6
7
8
9 10
11 12
13
14
15
16
17
18
19
LIMITED WARRANTY INFORMATION
Mastercool Inc. warranties their Vacuum Pumps against defects in material and work-
manship for a period of one year. This warranty does not cover failure due to abuse,
improper usage, or progressive wear and tear. Warranty becomes valid to the original
owner and is effective on the purchase date.
WARRANTY SERVICE IS PROVIDED THROUGH THE FACTORY ONLY.
Please contact the service department toll free for parts, service concerns, or to obtain a
return authorization number for warranty repair.
TOLL FREE Warranty Service 1-888-825-6989
90060-INST
