1

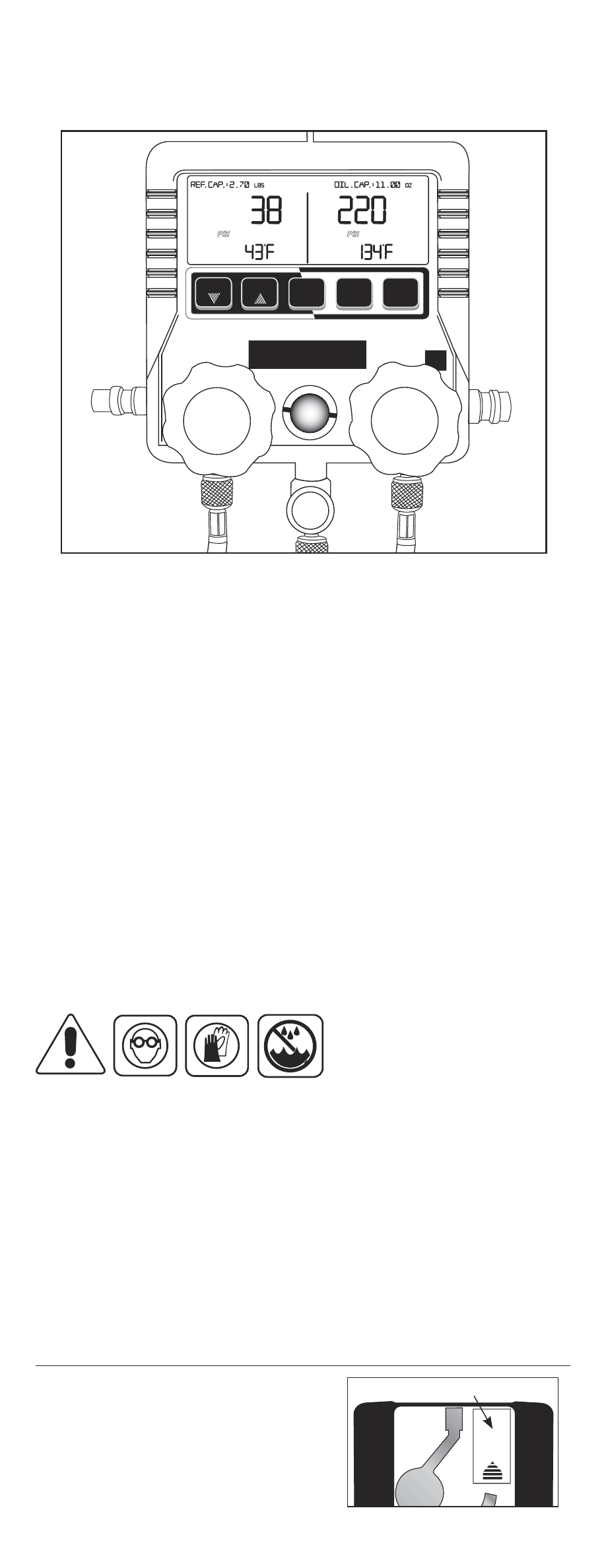

Instruction Manual

R134a DIGITAL MANIFOLD

Includes Automotive Refrigerant and Oil Capacity Readings

SPECIAL FEATURES

• Automotive Refrigerant & Oil Capacity Readings for over 1000 Makes & Models
• Automatic Warm-up
• Low Battery Indicator
• Large Digital Display of Pressures and Temperatures
• Protective Rubber Boot for Durability
• Heavy Duty Hook folds back into unit for compact storage
• Capable of Software Upgrade through optional USB and CD

SPECIFICATIONS

• Refrigerant: R134a
• Pressure & Vacuum Display: Low Side - PSI/IN-Hg , Bar, MPa, Kg/cm

2

High Side - PSI, Bar, MPa, Kg/cm

2

• Temperature Display: -40 to 200°F (-4 to 93°C)
• Response Time: 250 mSec.
• Connection: 1/2” acme or 1/4” flare
• Operating Temperature: 32 to 122°F (0 to 45°C)
• Power: 9V DC battery
• Battery Life: 50-60 hours continuous use
• Low Battery Indicator: Special ICON on LCD

WARNINGS

• Wear safety glasses / Wear gloves
• Do not vent refrigerant into the atmosphere.
• If eyes come in contact with refrigerant, immediately flush with plenty of
water and seek medical attention.
• Keep in a dry place. Do not allow moisture to enter the unit.
• IMPORTANT NOTE REGARDING STATIC DISCHARGE: Climates in some parts
of the world are conducive to creating static electric build up (ESD). Your
digital manifold has been designed to eliminate the damaging effects of
ESD. In some extreme cases, ESD will be apparent on your digital
manifold by a lack of response or an inability to turn off the unit. In the
rare case that this occurs, simply disconnect the battery, wait 1 minute
and reconnect the battery. The digital manifold will “reboot” itself and
operate normally once the unit is turned on.

BATTERY INSTALLATION

Remove the battery compartment cover.
Make sure to place the battery into the
compartment with the correct polarity.
Replace battery cover.
Note: If you need to replace the battery
allow 15-20 seconds before reconnecting

�������������������

BATTERY COMPARTMENT

������

�������

�����

�����

�����

�������

�������

BAR

PSI

N-Hg MPa Kg/cm

2

BAR

PSI

MPa Kg/cm

2

High

�����

Low

Ref.Cap.:2.70

LBS

OIL.Cap.:11.00

oz
