B. COMPONENT IDENTIFICATION

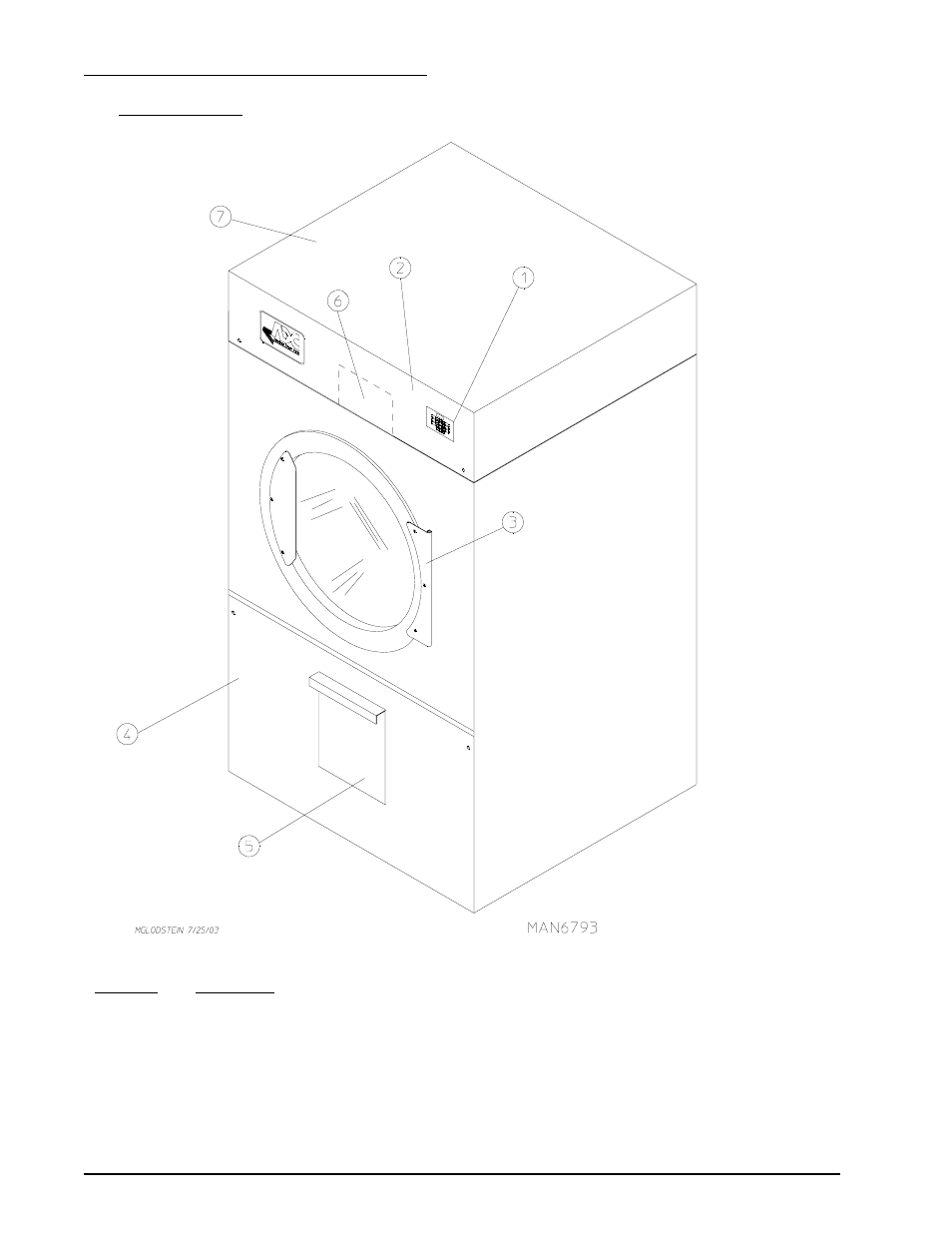

1. Dryer Front View
Illus. No.
Description
1
Microprocessor Control and Keypad Panel Assembly (controls)
2
Control (top access) Door Assembly
3
Main Door Assembly
4
Lint Door Assembly
5
Lint Drawer
6
Wire Diagram (located behind control door)
7
Top Console (module) Assembly
