8

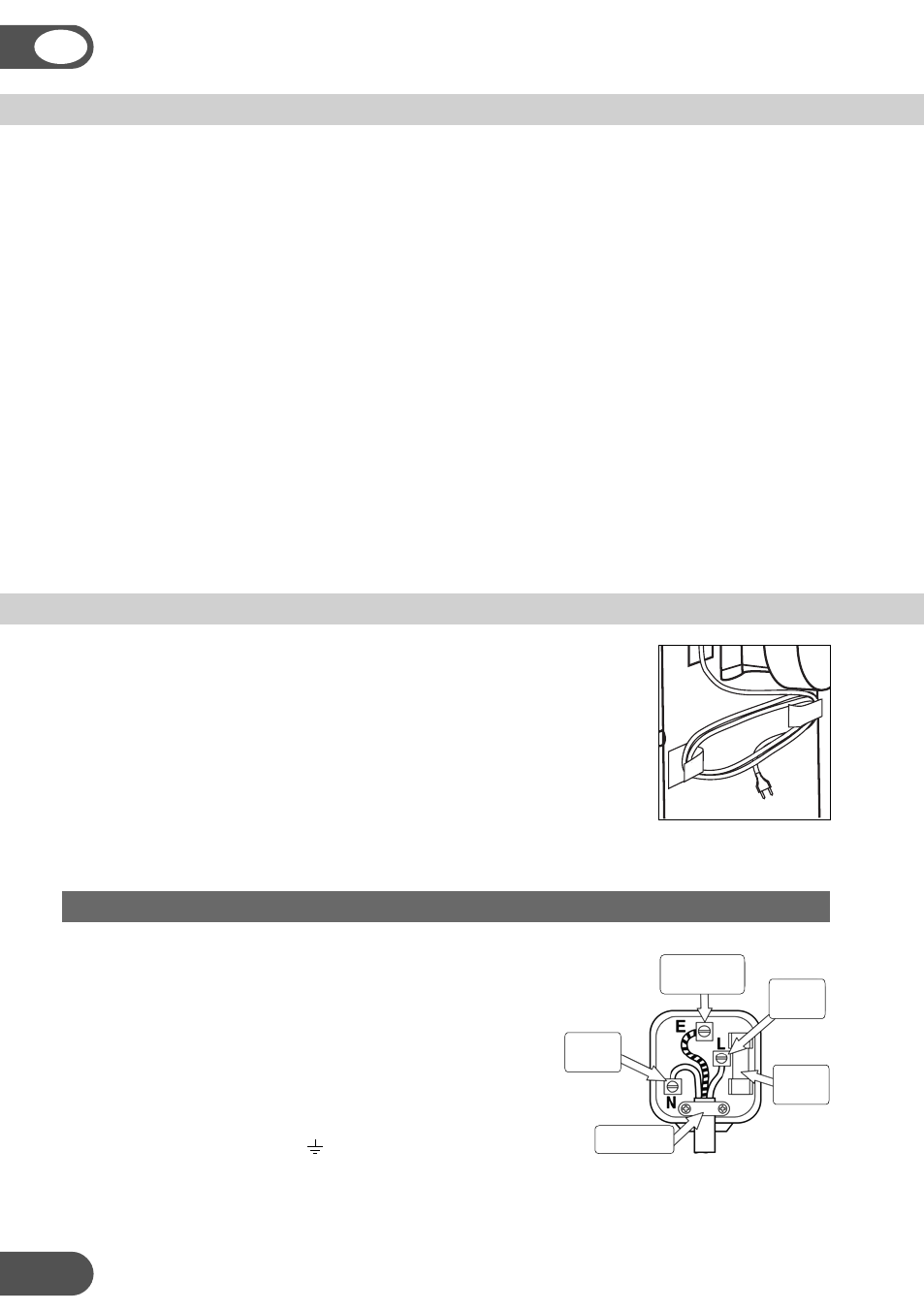

Important: how to wire a 13 amp plug

The wires in the mains lead on this appliance are

coloured in accordance with the following code:

G

REEN

AND

Y

ELLOW

– E

ARTH

B

LUE

– N

EUTRAL

B

ROWN

– L

IVE

As the colours may not correspond with the markings

identifying the terminals in your plug proceed as

follows:

The

G

REEN

AND

Y

ELLOW

wire must be connected to the

terminal in the plug which is marked with the letter

E or with the earth symbol or coloured green and

yellow.

The

B

LUE

wire must be connected to the terminal marked N or coloured black.

The

B

ROWN

wire must be connected to the terminal marked L or coloured red.

ELECTRIC CONNECTION

GREEN/YELLOW

Earth

BLUE

Neutral

BROWN

Live

FUSE

13 Amp

Cord clamp

GB

STORAGE

First of all switch off the unit and pull the plug.

Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol,
detergents or other cleansing solutions.

Filter
The single layer screen filter cleans the circulated air. The filter needs to be cleaned
regularly with a vacuum cleaner to avoid blocking the air flow.
• Push the two clips on the filter housing downward and pull the filter housing

forward and out of the unit.

• Remove the rear retainer from the housing by gently prising it from the retaining

clips.

• Insert the screen filter aligning the two cut outs with the clips on the top of the

filter housing.

• Reverse the procedure to re-fit the housing in the air conditioner.
Notice! Never use the air conditioner without filter.

See the instructions "Emptying the water container" on page 7.

• Drain the condensed water completely.
• Clean (or replace) the filter.
• Put the unit on a sunny day in fan mode for a couple of

hours to ensure that the inside becomes completely dry.

• Store the power cable as shown, protect the unit against

dust and store in a dry place not accessible for children.

Cable storage

CLEANING
