Xserve RAID Locking Switch - 3
Removing the Installed Locking Switch
The locking switch is located at the front of the chassis near the inside front bezel. It is on
the right side of the chassis as viewed from the front of the unit.
1. Disconnect the locking switch cable from the right front panel board. (Figure 3)
2. Remove the two screws that mount the locking switch to the chassis.
3. Remove the locking switch from the enclosure.

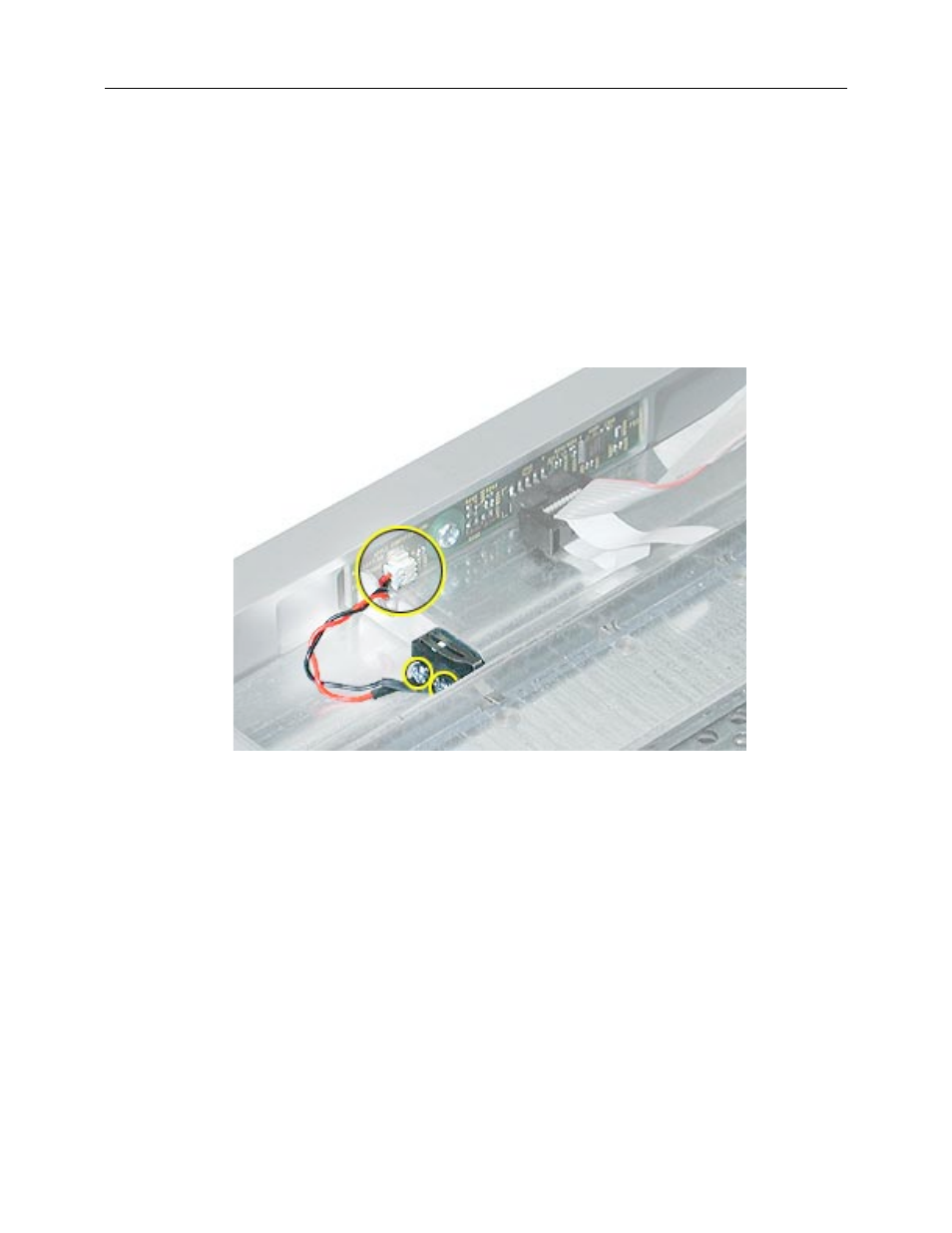

Figure 3
Installing the Replacement Locking Switch
1. Position the replacement locking switch on the chassis.
2. Replace the two screws that mount the switch to the chassis.
3. Connect the locking switch cable to the right front panel board.
