7/9/2013

BRAKES_FLANGE_SPRING_MANUAL

Page 3 of 5

IV.

Routine Maintenance

When installed and operated according to the preceding guidelines, Mach III Clutch
products should require little or no routine maintenance. A repair kit is available which
contains all parts subject to typical wear: friction discs, springs and O-rings.


V.

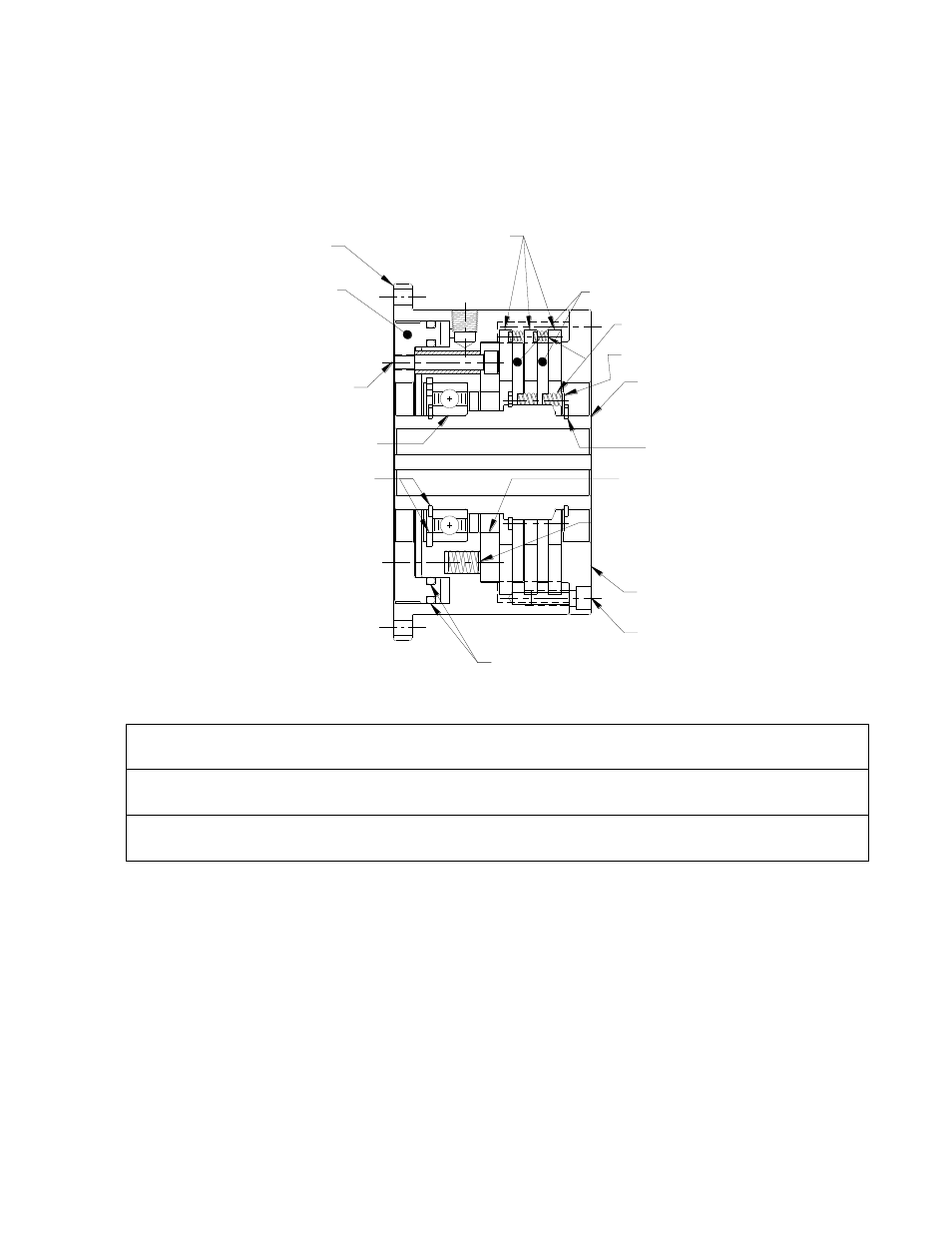

Parts diagram

Repair Kit:

Part number = Brake

Product Number + “-RPRK” (e.g. D3F3R-STH-RPRK)

Additional
Parts:

Contact Mach III to obtain a complete listing of additional parts kits available for
your specific brake. Please reference product number when calling or e-mailing.

Repair
services:

Factory repair is available. A return materials authorization (RMA) number must
be obtained prior to sending any unit in for repair













DRIVE HUB

CYLINDER

PISTON

BEARING

RETAINER RING

O-RING

FRICTION DISC

DRIVE DISC

SPRING

SCREW WITH SPACER

TOP PLATE

PRESSURE PLATE

RETAINER RING

RACE

SPRING

CAP SCREWS
