AS-40L COMPACT DIMMER
Version U.1
OWNERS MANUAL
02/11/20
6
05
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, VA 23454 tel 757 486 3588

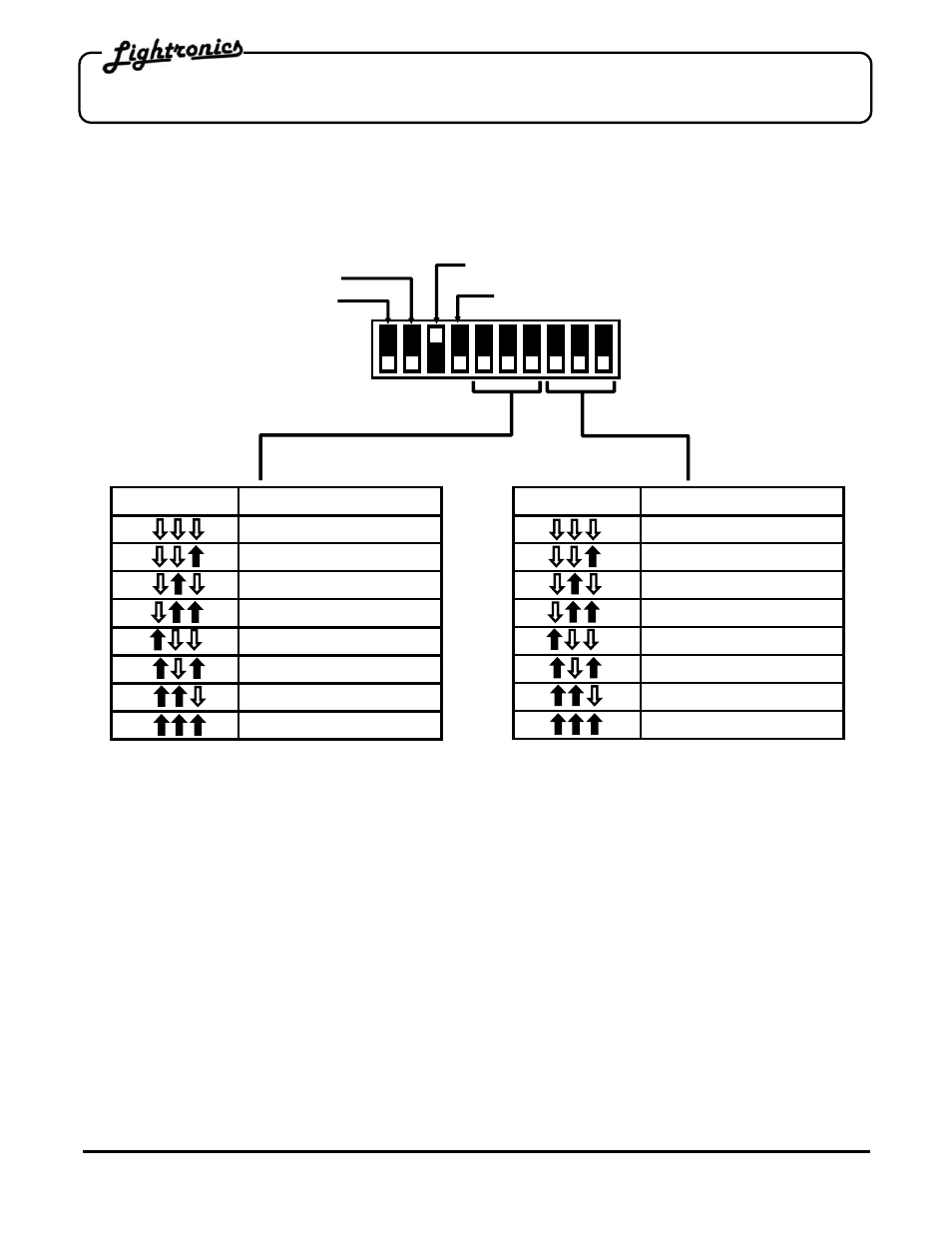

CHASER MODE SWITCH FUNCTIONS
MAINTENANCE AND REPAIR
TROUBLESHOOTING
• Check that you have power applied to the dimmer.
• Check that all light fixtures are functional.
• Check the fuses.
REPAIR
SWITCHES STEP TIME (Duration)
0.5 seconds
1.0 seconds
2 seconds
4 seconds
8 seconds
16 seconds
32 seconds
64 seconds
SWITCHES PATTERN
4 channel sequence
4 channel build
4 channel build/unbuild
4 channel random
3 channel sequence +
3 channel build
3 channel build/unbuild
2 channel alternating
UP FOR BOUNCE
NORMAL/CHASER
(UP FOR CHASER)
LAY)
• Check the DMX control cable.
• Check the settings of the dimmer DIP switches.
• Check the console setup for correct patching.
(DOWN = DIM, UP = RE
1/2 DIM/RELAY
3/4 DIM/RELAY
The only AS–40L user serviceable parts are externally accessible fuses. Replace fuses ONLY with 5 Amp,
250VAC, fast blow fuses. Internal service on the unit by other than Lightronics authorized agents will void the
warranty. If service is required, contact the dealer from whom you purchased the dimmer, or Lightronics, Service
Department, 509 Central Drive, Virginia Beach, VA 23454. Tel: 757 486 3588.
