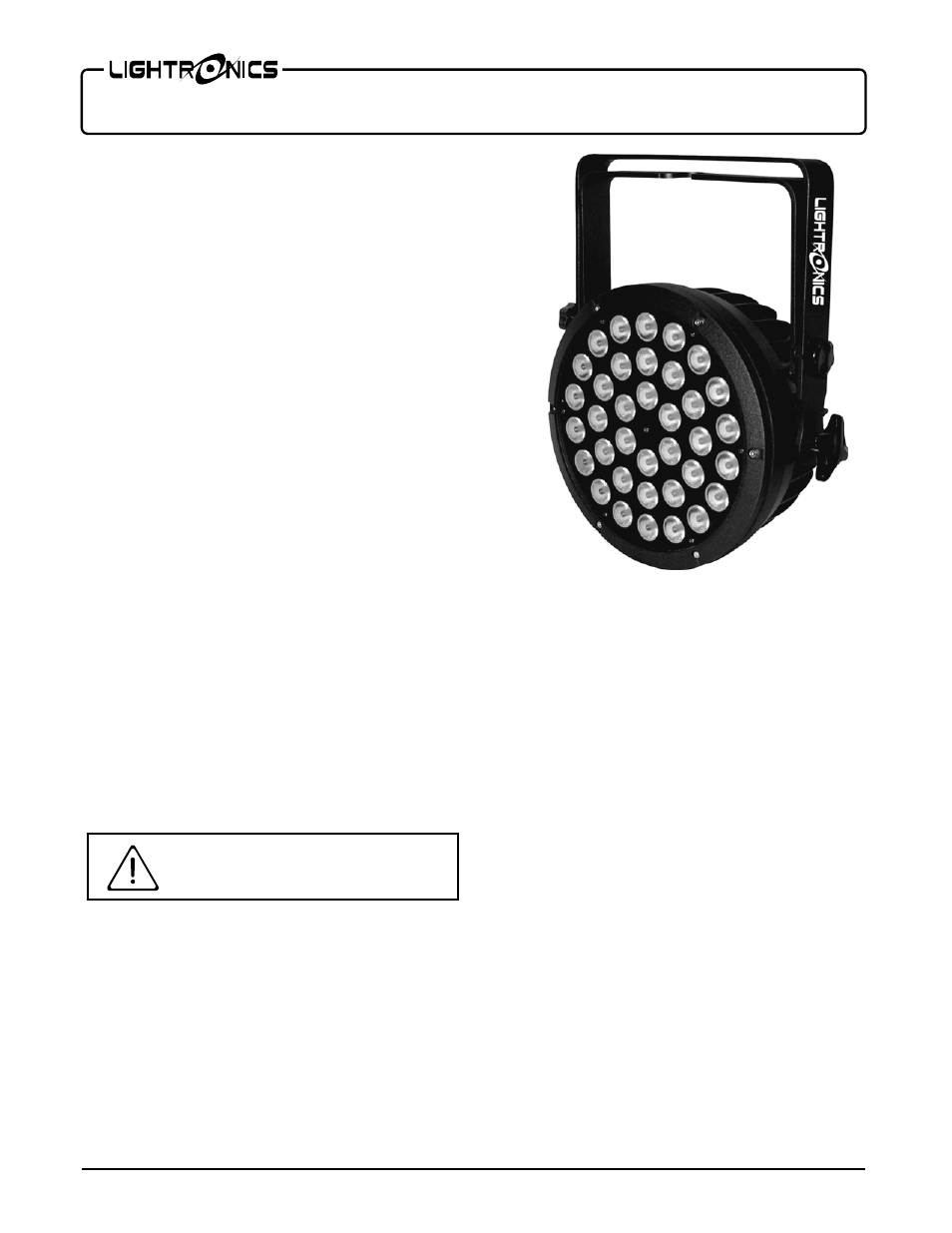

FXLD836C4I LED FIXTURE
Version 0.1 OWNERS MANUAL 06/06/2013
www.lightronics.com
Lightronics Inc. 509 Central Drive Virginia Beach, Va 234354 757 486 3588
FEATURES AND SPECIFICATIONS
LEDS: 36, 8 Watts each (R,G,B,W - 4 in 1)
Beam angle: 25 º
Control system: DMX-512 + Stand Alone Modes
DMX channels: 4/5/7
DMX connectors: 3 pin XLR
Voltage: 120 VAC 50/60Hz
Max power consumption: 320 Watts
Body material: Die Cast Aluminum
Body color: Black
Size: 13"L x 11.5"W x 7.5"H
Weight: 14.3 lbs (7kg)
DESCRIPTION
The FXLD836C4I is a RGBW LED lighting fixture. It
is suitable for stage, disco, night club, and other artistic
applications. It has several stand alone control modes
and can operate via a DMX-512 external signal.
A double yoke enables the fixture to be operated in
several positions.
INSTALLATION
LOCATION
The FXLD836C4I is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from
moisture and heat. Keep the vent holes clear. Holes
are provided on the yokes to install a lighting bar pipe
clamp. Use a safety cable when hanging the fixture.
POWER CONNECTIONS
The FXLD836C4I has a blue powercon style connector
for power input. A compatible power cable is provided
for connection to a 120 VAC, 15 Amp, 60Hz,
grounded service. Push the blue connector on the
cable straight into the blue connector on the unit and
twist aprox. 1/8 turn clockwise to latch it.
The white powercon style connector on the unit is used
to pass power on to another unit. A mating white
connector is also provided.
Caution is advised since the line cord is rated for
aprox. 7 Amps maximum.
THE SAFETY GROUND TERMINAL ON ALL POWER
CABLES MUST BE USED.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices. In other words the control signal
cable should proceed from the controller to the first
receiving device and then to others in a continuous
"daisy chain" fashion.
The fixture has a DMX IN and a DMX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device pack.
DMX CONNECTOR PIN ASSIGNMENTS
There are two different connectors which can be used
for DMX control. They are both XLR type connectors.
Some units use 3 pin connectors. Others use 5 pin
connectors. The FXLD836C4I receives a DMX signal
on the 3 pin MALE connector on one side of the unit.
The 3 pin FEMALE connector is used to connect the
next DMX device on the control chain.
CAUTION
RISK OF ELECTRIC SHOCK
