MEASUREMENT TIMING INFORMATION
Wavelength
Range (nm) Spot Scan Rate (Hz)
30 m mode
Spot Scan Rate (Hz)
70 m mode
5 3.7 2.9
10 2.7 2.0
20 1.8 1.2
40 0.9 0.6
80 0.5 -

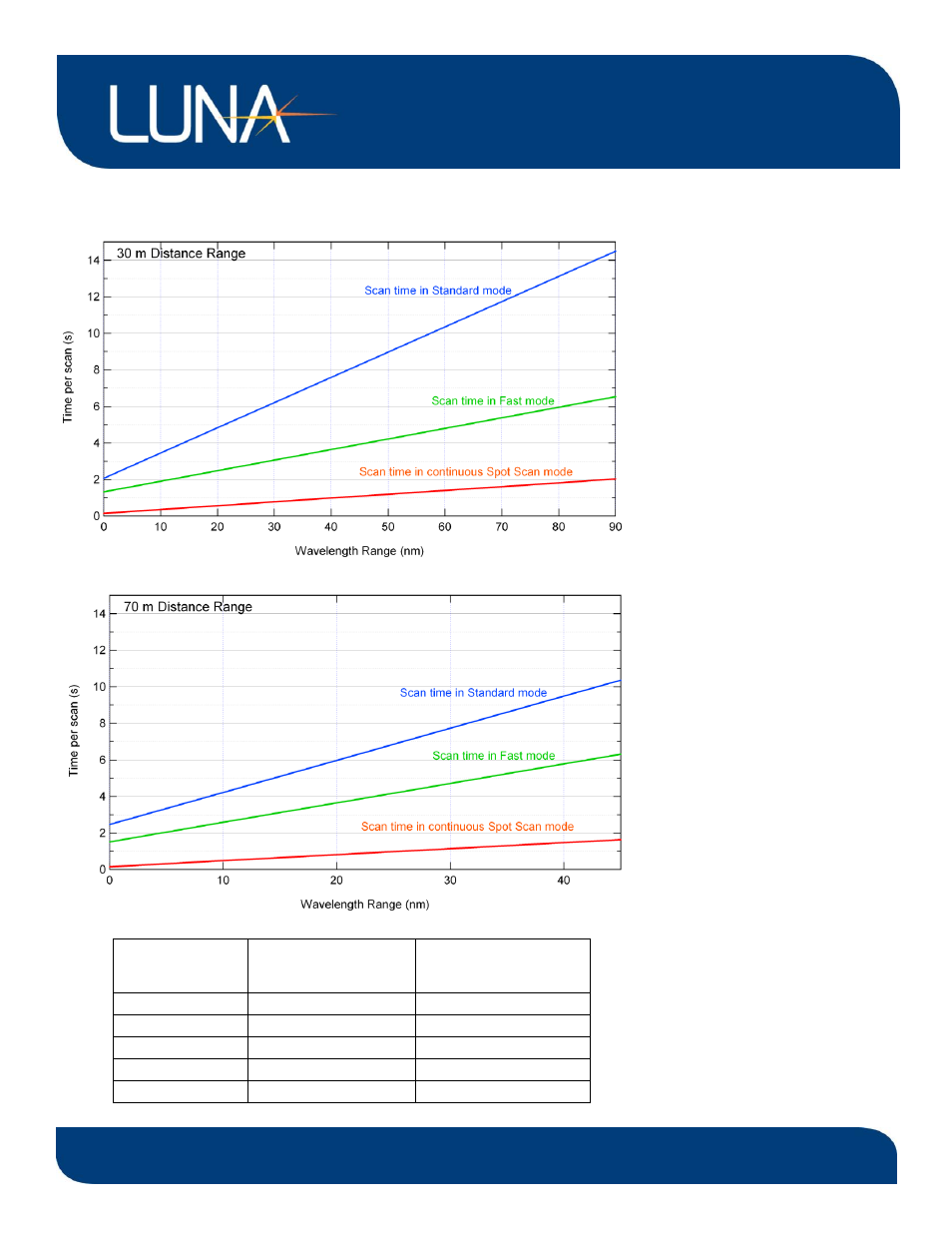

Scan repetition rates at various
scan wavelength ranges for
continuous spot scanning in 30
m and 70 m modes of
operation. Rates are for laser
tuning speed set to 100 nm/s.
Time per scan vs. scan
wavelength range for 70 m
scans in standard operating,
fast scanning and continuous
spot scanning modes.
Time per scan vs. scan wavelength
range for 30 m scans in standard
operating, fast scanning and
continuous spot scanning modes.
