OPTICAL BACKSCATTER REFLECTOMETER TM
(Model OBR 4600)
www.lunainc.com
3157 State Street | Blacksburg, VA 24060
[email protected]
Support phone: 1.866.586.2682

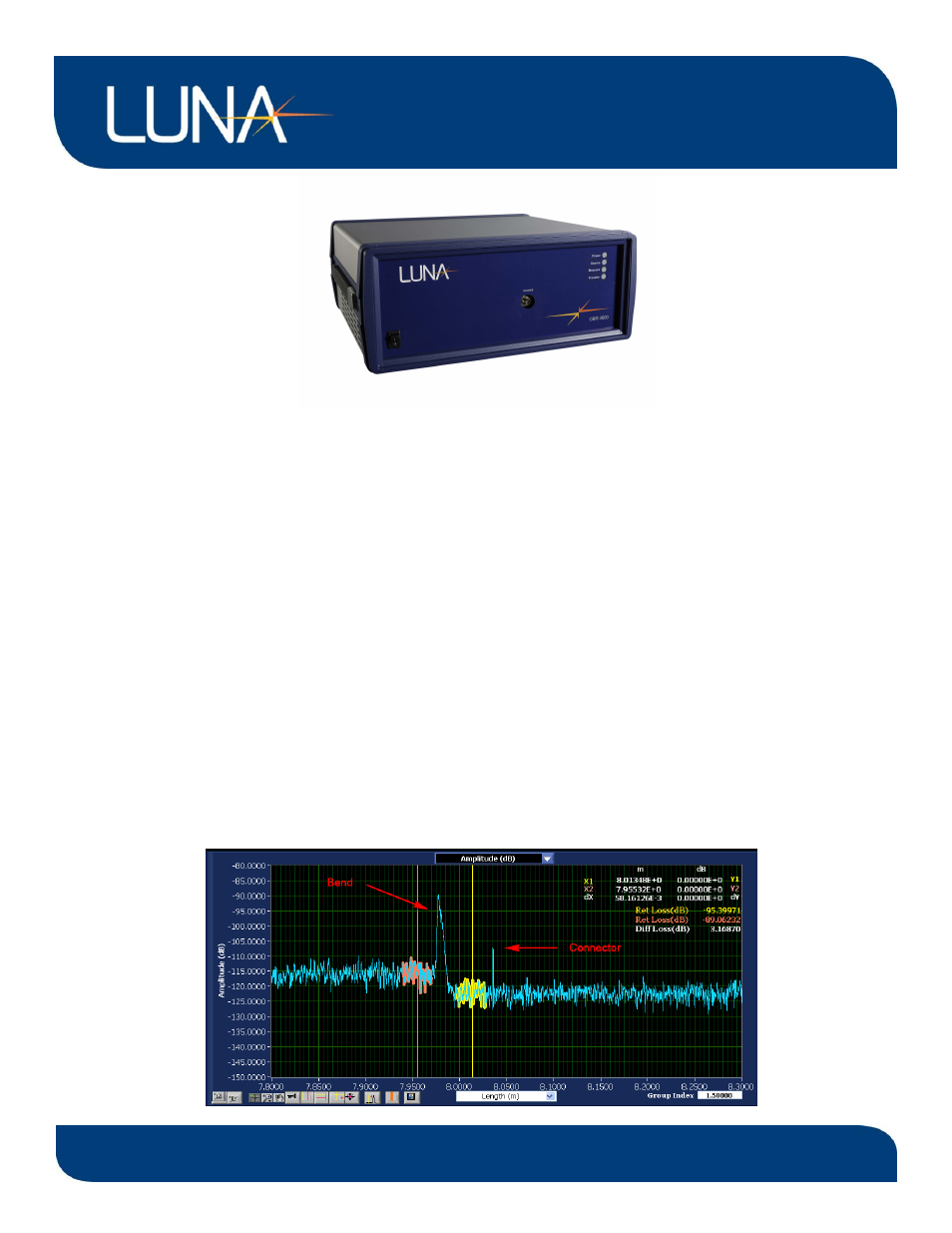

The Luna OBR 4600 offers unbeatable testing
and troubleshooting capabilities now at
unprecedented measurement speeds.
KEY FEATURES AND PRODUCT HIGHLIGHTS
• Easily locate, identify and troubleshoot macro-bends,
splices, connectors and breaks
• Locate Insertion Loss points at every point in the
network or assembly – eliminate cut-back
• Look inside components to evaluate each interface for
RL and IL
• Measure 30 m with 10 µm resolution in less than 7
seconds
• Continuously measure a 1 m segment at up to 3 Hz
• Test and troubleshoot short-run networks (< 2 km)
• Automate pass/fail verification of fiber assemblies
• Monitor distributed temperature and strain profiles
along network or inside a component or module
The Luna OBR 4600 is part of Luna’s award winning
Optical Backscatter Reflectometer TM product line.
Designed for component and short-run network testing
and troubleshooting, the OBR 4600 enables ultra-high
resolution reflectometry with backscatter-level
sensitivity. With spatial resolution as fine as 10
microns, zero dead-zone, options for integrated
temperature and strain sensing and extended device
mode, the OBR 4600 offers the ultimate in fiber
diagnostics.
MEASUREMENT PERFORMANCE HIGHLIGHTS
• -130 dB sensitivity
• 70 dB dynamic range
• 2 kilometer length range with no dead-zone
• < 0.05 dB insertion loss resolution
