American Aldes HRV 700SDD User Manual

Page 2

ROJECT

ATE

UBMITTED

ONTRACTOR

SPECIFICATIONS

General:

Unit shall be completely wired and includes blowers,

filters, heat exchange cores and control panel.

Cabinet:

” x 28

” x by 24

” H. Constructed of 20 gauge satin

white powder coated galvanized steel (G60) for superior
corrosion resistance. Insulated with foil faced fiberglass duct
liner to prevent condensation.

Heat Exchange Core:

Two modules, aluminum plate heat exchange

core assembly held in stainless steel frame.

Air filter:

Four washable filters.

Motors:

Two efficient three speed PSC double shafted motors 120 V,

2.75 Amps each (5.5 Amps total on high speed), 1 ph.
1/10 HP, 1625 RPM. Watts - total on high speed - 648.

Blowers:

Centrifugal type rated at 700 CFM (329 L/s) free air

delivery. Each air stream has one double shafted motor driving
a centrifugal blower. Rubber isolated mounts.

Controls:

Illuminated power switch, 3 speed blower control, low

voltage (24 VAC) terminals for connection of remote controls
and defrost light indicating automatic operation.

Defrost:

Model 700SDD: Supply bypass routes indoor air to defrost

core.

Model 700SFD: Supply fan shuts off while exhaust contin-

ues to defrost core.

(Defrost light indicates defrost mode-

Preset 27° F (-3°C)).

Duct Connections:

Four 14" X 8" (356mm X 200mm). Model

700SDD has fifth 14" x 8" duct connection on top surface.

Drain Connections:

Two 1/2" O.D.

Mounting:

Unit to be set in support brackets hung by threaded rod

type apparatus.

(Brackets and rod not provided).

Weight:

142 lbs (64.4 Kg)

Shipping Weight:

167 lbs (75.8 Kg)

Manufacturer:

American ALDES Ventilation Corp.
4537 Northgate Court, Sarasota, FL 34234

All units conform to CSA and UL Standards

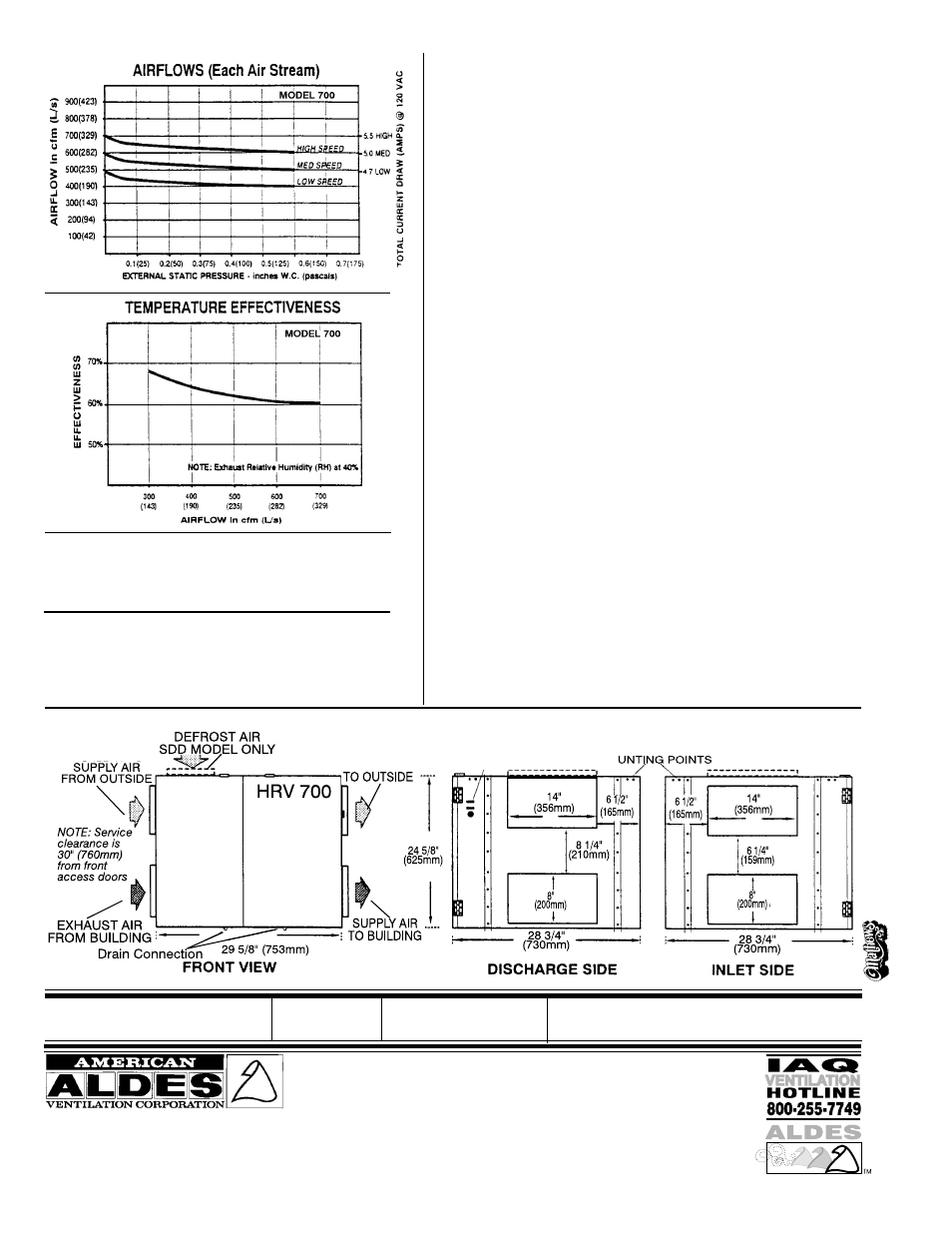

PERFORMANCE

WARRANTY

Units carry a 15 year warranty on

the heat recovery core and a 2

year replacement parts warranty.

DIMENSIONS 700SDD / 700SFD

BY MATHEWS GRAPHIC DESIGN

4537 NORTHGATE COURT

SARASOTA, FL 34234-2124, USA

Tel: 941 • 351- 3441

Fax: 941 • 351- 3442

www.aldes-us.com
e-mail: [email protected]

496HRV4-03

OPTIONS AND ACCESSORIES

28 998: 60 MIN. REMOTE TIMER

(2 Wire)

28 882 DEHUMIDISTAT

- Activates high speed when indoor

humidity rises above set point on control (2 Wire)

Note: Manufacturer
reserves the right to change
specifications without notice.

This manual is related to the following products:

HRV 700SFD
