Dani bus expansion i/o ports – Lectrosonics DM84 User Manual
Page 10
DM84 Installation Guide
LECTROSONICS, INC.
10
DANI Bus Expansion I/O ports
The four RJ45 connectors on the rear panel are used to
interconnect LecNet2™ units together. These ports are
only used to transfer digital audio information via the
Digital Audio Network Interface (DANI) between the DM
Series processors that are interconnected.
WARNING: The Expansion I/O connectors are
NOT EtherNet, CobraNet or any other network
based device interconnects. Connecting them
to Ethernet, CobraNet or other network based
device may cause damage to either unit.

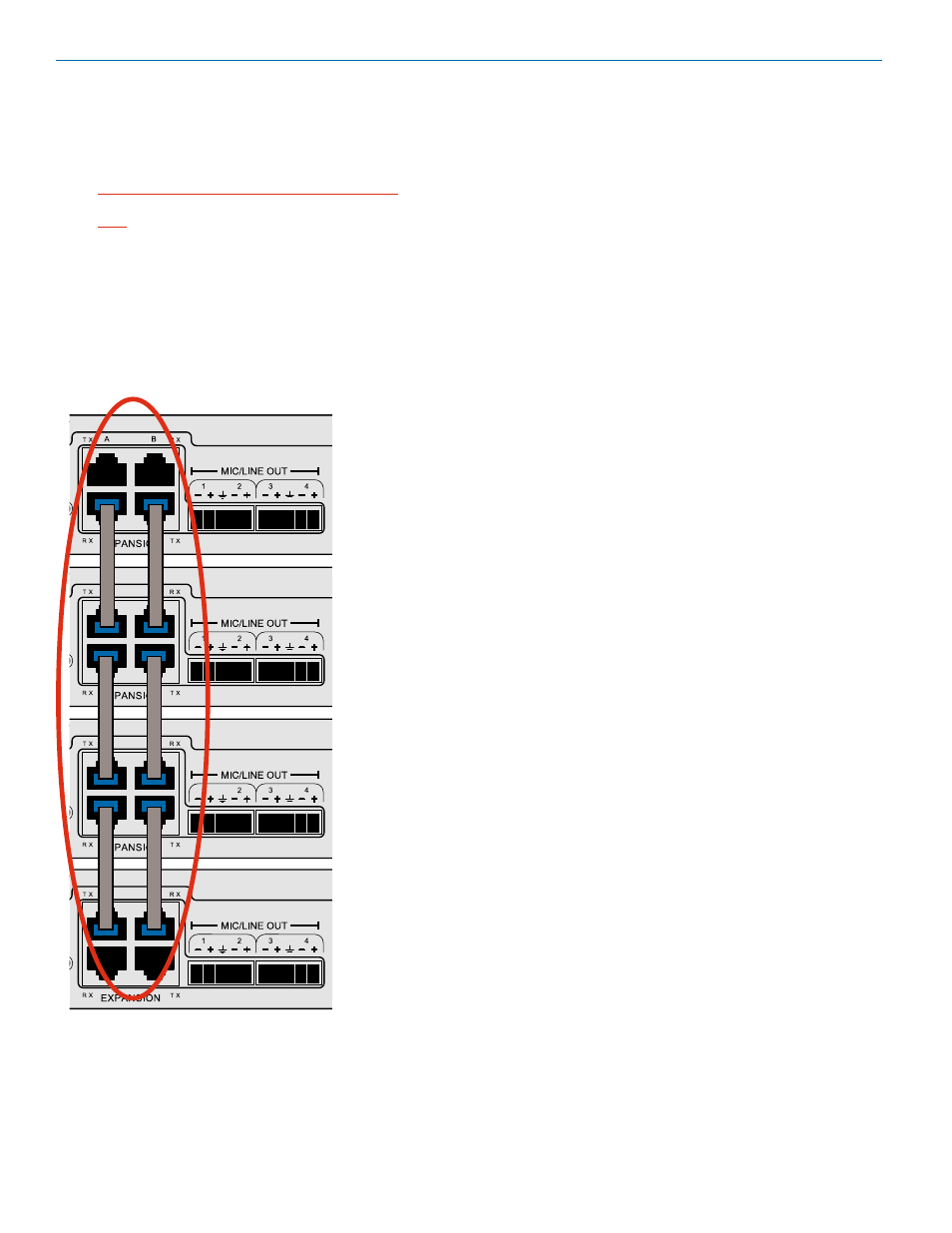

To connect the Master/Slave units, plug one end of a 12
inch Cat5e cable (two are supplied with each with unit)
to the transmit (TX) port on the Master unit, and con-
nect the other end to the corresponding receiver (RX)
port on the Slave unit immediately below the Master.
Repeat this procedure with the second Cat5e cable.
Master
Upper Slave
Intermediate
Slave
Lower Slave
