MBATELIM
HBATELIM
Battery Eliminators
The MBATELIM and HBATELIM battery eliminators pro
vide external powering options for Lectrosonics wireless
transmitters. External DC voltage is fed into the connec
tor at one end of the battery eliminator. The output of the
battery eliminator is regulated 9V DC to power the trans
mitter at the battery terminals inside the battery
compartment. The modified door allows access to the
power input jack yet still operates with regular alkaline or
lithium batteries. The DC input jack is protected from
reverse polarity.

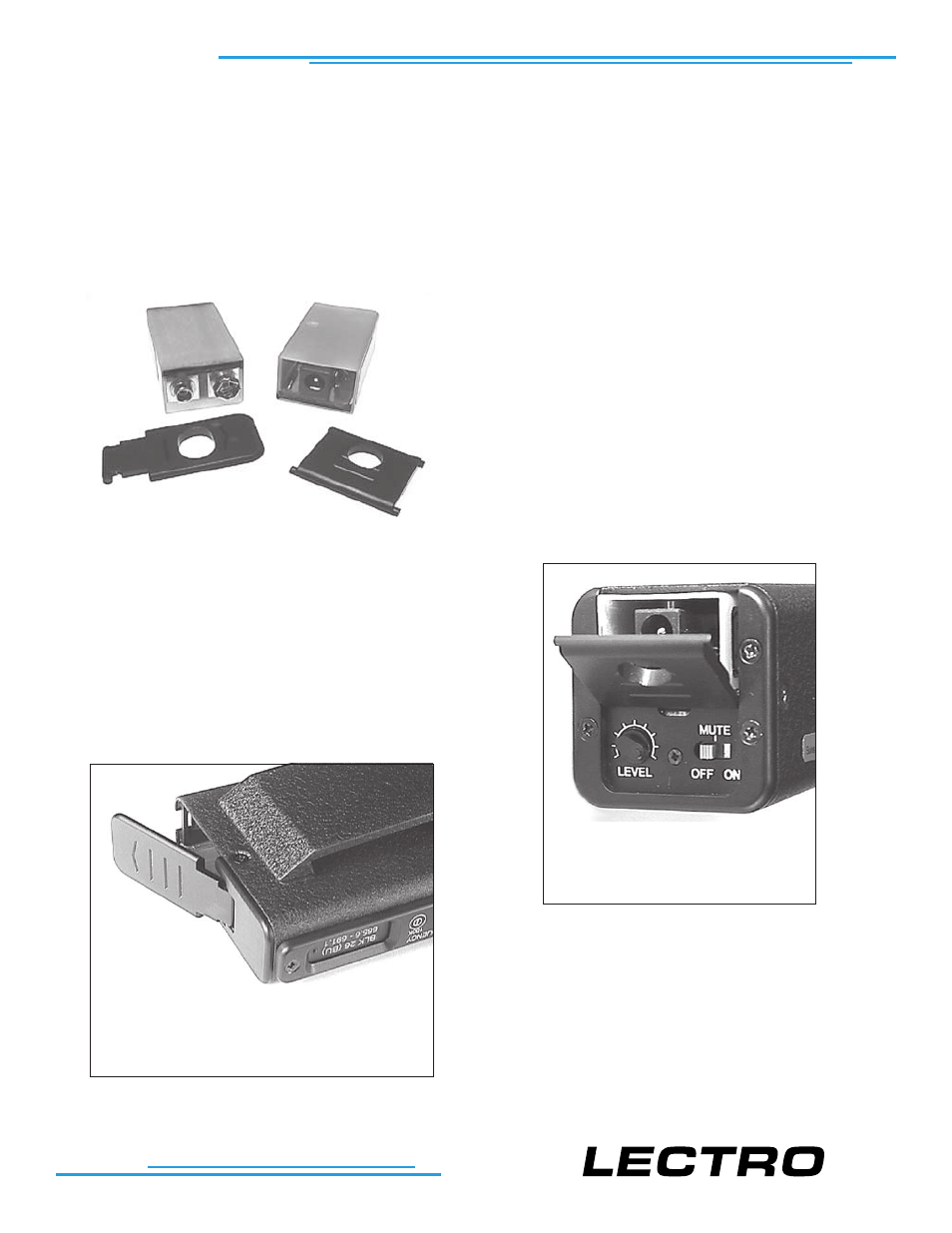

The MBATELIM model is a kit including the battery
eliminator and a modified battery door that fits any
Lectrosonics aluminum belt-pack transmitter with a
flip-open type door as shown here.
Technical Data
Feature Highlights
• Allows external powering of
Lectrosonics aluminum transmitters
• Standard 9 volt battery contacts and
DC input jack on “dummy battery”
• Modified battery doors available for
both Belt-Pack and Plug-On
transmitters with flip-open style
battery doors
• Modified door preserves use with
regular alkaline or lithium batteries
The HBATELIM kit includes a modified
battery door that fits any Lectrosonics
“H” type plug-on transmitters.
The battery eliminator is not recommended for use with
any devices other than the Lectrosonics transmitter types
shown here. Use with any other device will void the factory
warranty. Lectrosonics will not accept resposibility for
damage to nor insure proper operation with any other
devices.
NOT FOR USE WITH TRANSMITTERS THAT HAVE RO
TATING TYPE BATTERY DOORS.
