Lectrosonics A8U User Manual
Lectrosonics, Uhf antenna

33
32
31
21
22
23
24
25
26
27
28
29
30
20
Whip Length
944
LECTROSONICS
®
581 Laser Rd NE
Rio Rancho, New Mexico 87124
(800) 821-1121 (505) 892-4501
Fax: (505) 892-6243
Web: http://www.lectrosonics.com
Email: [email protected]
A8U
UHF Antenna
Colored cap
Frequency Blocks

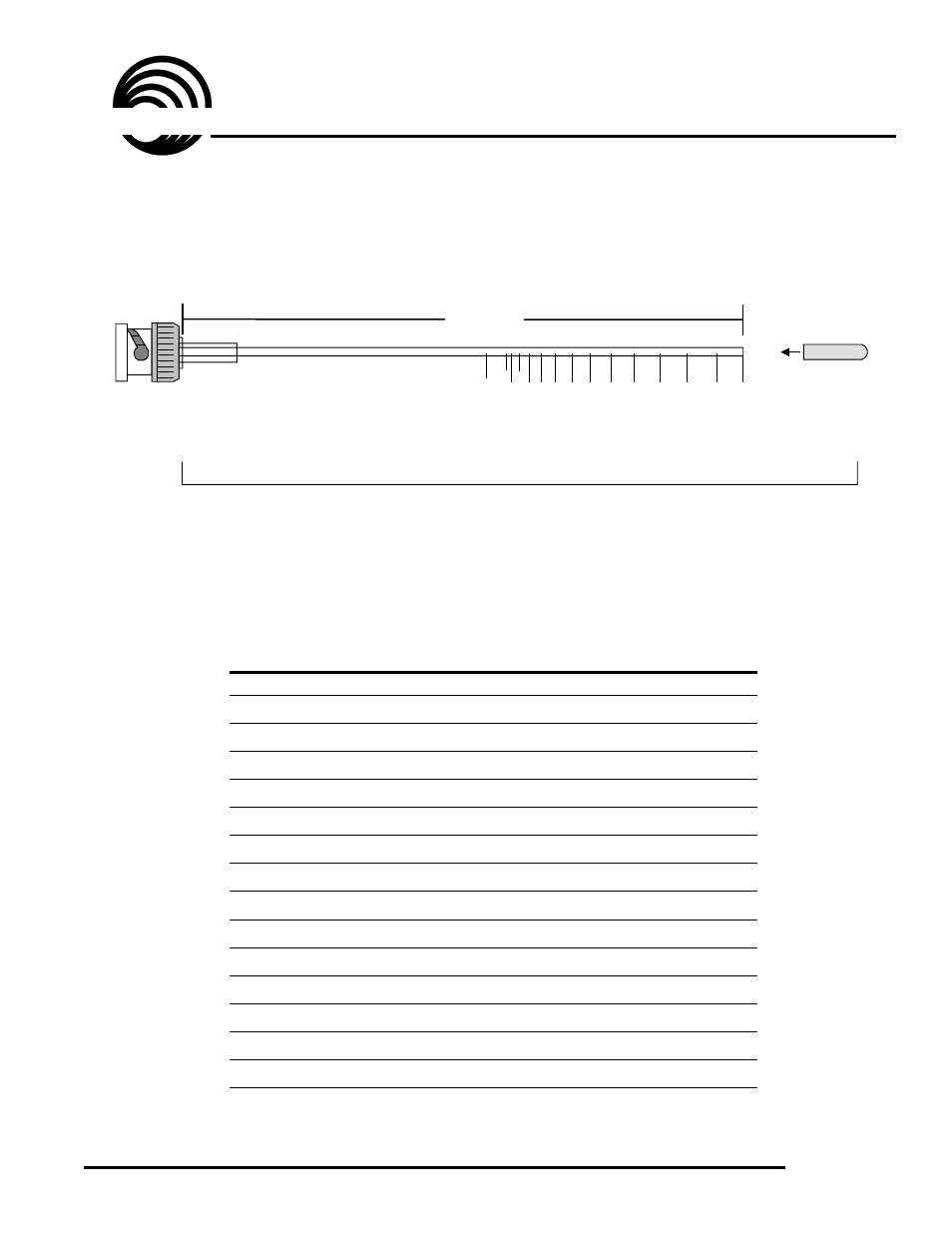

Note: This line should be 6.00" long.
A8U antennas are shipped from the factory pre-cut and fully assembled. The full size template above can
be used to identify an unknown antenna. Place the unknown antenna over the drawing to see which block
it was cut for.
FREQUENCY
CAP
ANTENNA
BLOCK
RANGE
COLOR
WHIP LENGTH
20
512.000 - 537.500
Black
4.98"
21
537.600 - 563.100
Brown
4.74"
22
563.200 - 588.700
Red
4.48"
23
588.800 - 614.300
Orange
4.24”
24
614.400 - 639.900
Yellow
4.01"
25
640.000 - 665.500
Green
3.81"
26
665.600 - 691.100
Blue
3.62"
27
691.200 - 716.700
Violet (Pink)
3.46"
28
716.800 - 742.300
Grey
3.31"
29
742.400 - 767.900
White
3.18"
30
768.000 - 793.500
Black
3.08"
31
793.600 - 819.100
Black
2.99”
32
819.200 - 844.700
Black
2.92”
33
844.800 - 865.000
Black
2.87”
944
944.100 - 951.900
Black
2.70"
Note: Blocks 30 through 33 and 944 are labeled with the frequency block number.
