Super-Minature Belt Pack Transmitters
Locking or Unlocking the
Control Panel
Control Panel Locked
The Lock mode protects the
transmitter from accidental changes to its settings.
1) Ensure the SMDa setup is complete (operating fre­
quency, audio level, Compatibility Mode, sensitivity
to remote control).
2) Simultaneously press both the Up and Down ar­
row buttons to start the Lock timer. When the timer
reaches zero, “Loc” is displayed and the controls
are locked.
Important: Once the transmitter is locked, it cannot
be unlocked or powered off using the buttons.
The only ways to unlock a locked transmitter
are to remove the battery or unlock it via the
remote control. The remote control will work only
2
Pinch and push the sleeve over the flange on the connector.
It helps to pinch the sleeve close to the housing to work the
edge over the flange.
if the transmitter was previously configured to
respond to the remote control. The unit will
always power up in “unlocked” mode.

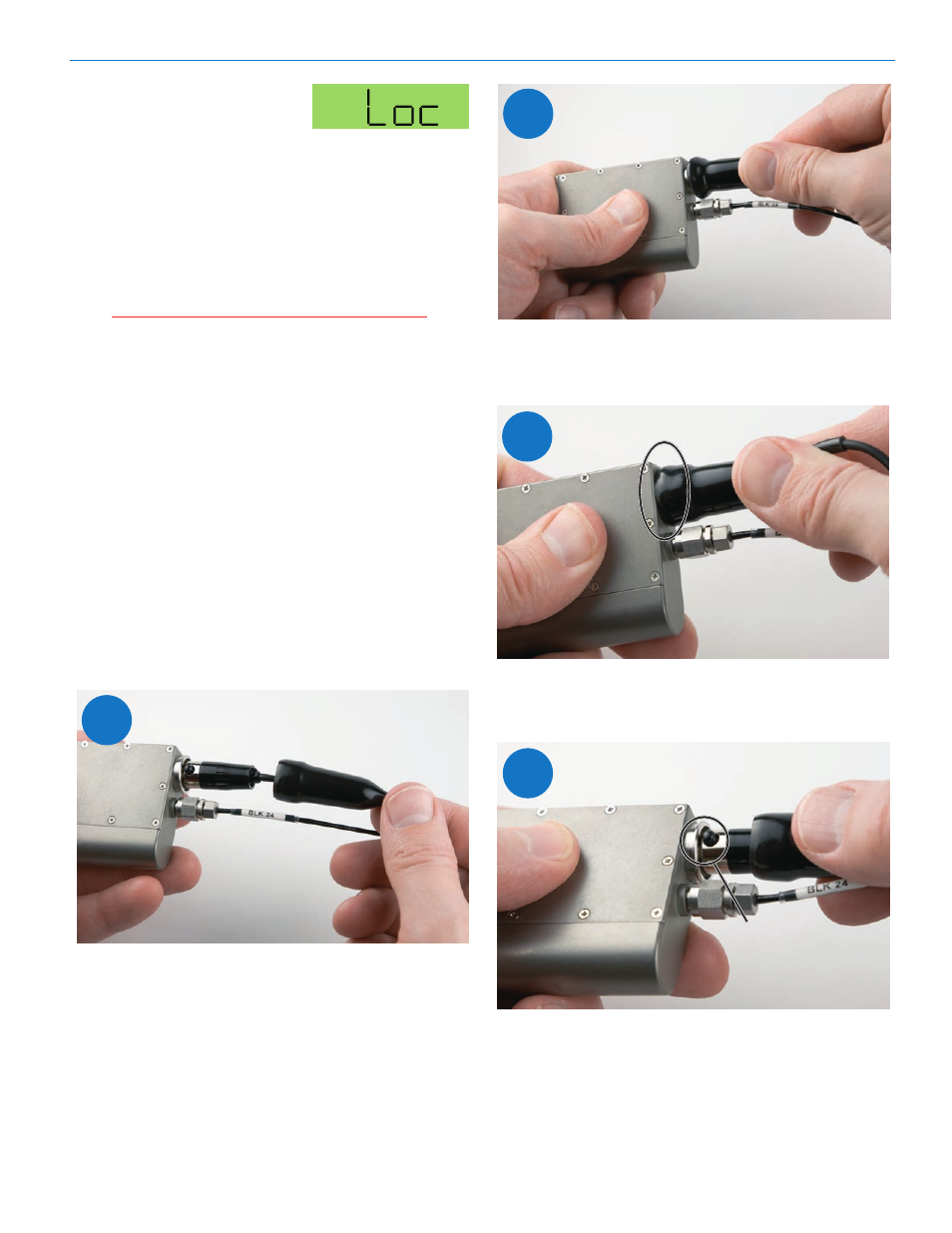

Attaching and Removing the Microphone
The flexible sleeve over the 5-pin plug on the micro­
phone helps prevent dust and moisture from getting into
the input jack. A flange is machined into the rim of the
connector on the transmitter to help retain the sleeve
after it is installed.
The following procedure simplifies the attachment and
removal of the microphone to assure the sleeve is
seated securely.
1
Pull the sleeve back, align the pins on the plug and jack and
insert the connector.
3
When the sleeve is completely seated, it will sit flush against
the housing with the inside of the sleeve gripping the flange
all the way around the connector.
4
Release button
To remove the connector, pull the sleeve back to expose the
black release button. Press the button to unlatch the plug.
Rio Rancho, NM 11
