UHF Digital Hybrid Wireless ®
Rio Rancho, NM 13

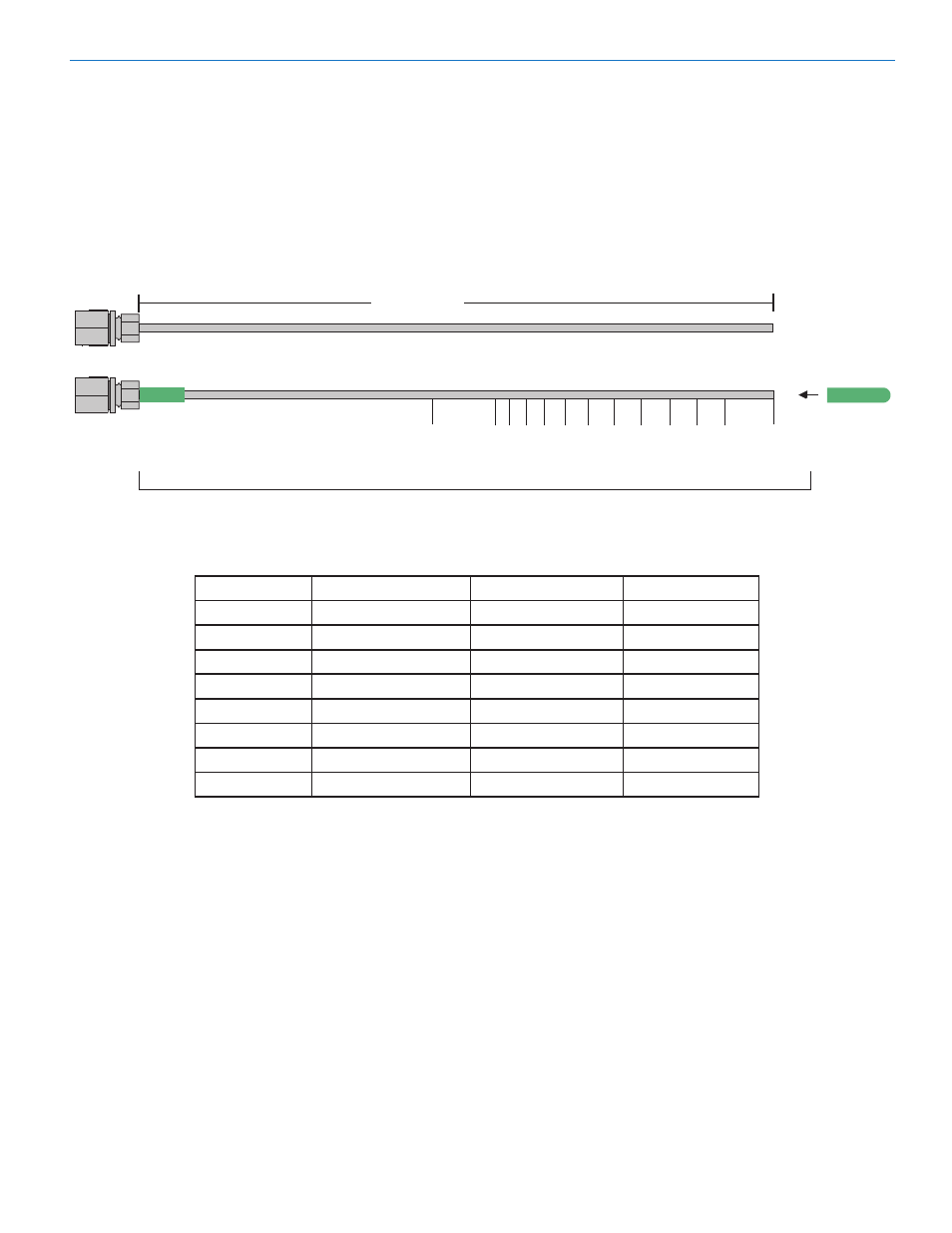

21 22 23 24 25 26 27 28 29 20 19
470 944
Note: Check the scale of your printout. This line should be 6.00 inches long (152.4 mm).
Whip Length
BLOCK FREQUENCY CAP ANTENNA
RANGE COLOR WHIP LENGTH
470 470.100 - 495.600 Black 5.48”
19 486.400 - 511.900 Black 5.20”
20 512.000 - 537.500 Black 4.95”
21 537.600 - 563.100 Brown 4.74”
22 563.200 - 588.700 Red 4.48”
23 588.800 - 614.300 Orange 4.24”
24 614.400 - 639.900 Yellow 4.01”
25 640.000 - 665.500 Green 3.81”
26 665.600 - 691.100 Blue 3.62”
Whip Antennas
Lectrosonics AMM Series UHF transmitter antennas
follow the color code specifications in the chart below to
identify operating frequency block range. (The frequen-
cy block range is engraved on the outside housing for
each individual transmitter.) If a situation exists whereby
the antenna is defective and the antenna cap is miss-
ing, refer to the following chart to determine the correct
replacement antenna.
